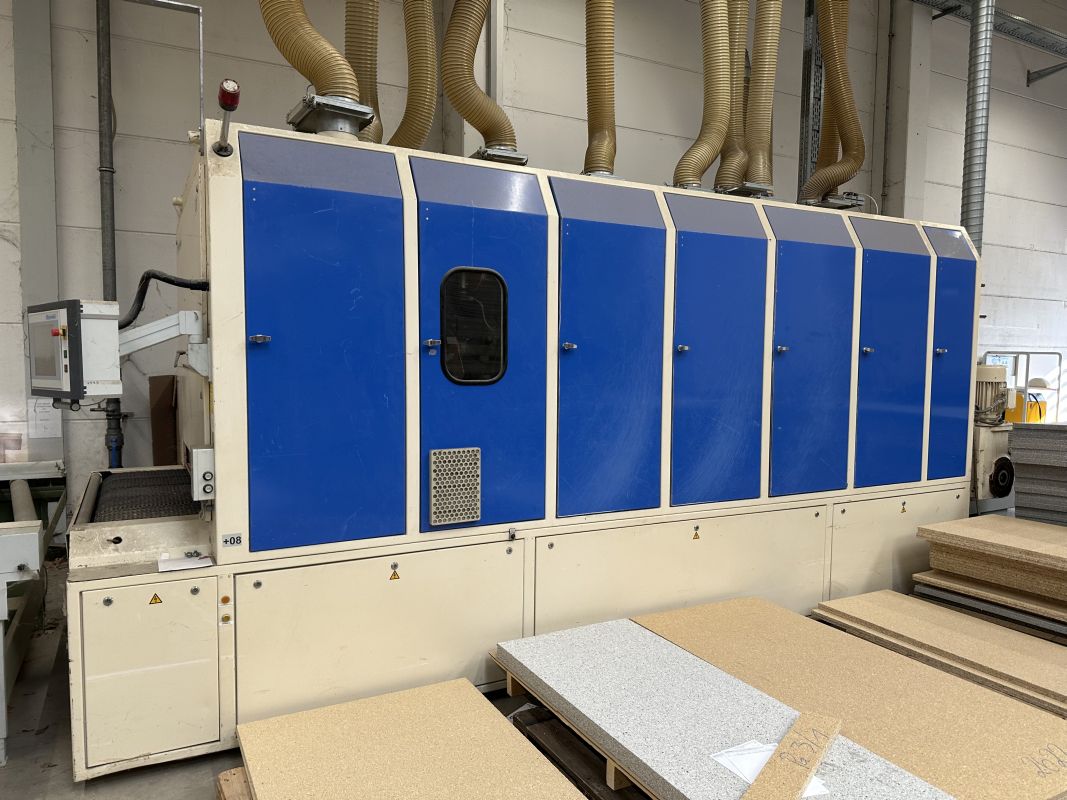

Sanding machine with dust extraction station

Used sanding machine with dust extraction station
Brand: Heesemann
type: LSM8 /EA2
year of construction: 1999


Technical specifications:

Sanding width 1400 mm
Workpiece thickness 3 - 80 mm

Unit arrangement: Q / Q / L / L / L / L / Brush / Brush

Transverse unit Q1:
Drive 13/17 kW, 1470 / 2945 rpm, sanding speed 12 / 24 m/sec

Transverse unit Q2:
13/17 kW, 1470 / 2945 rpm, sanding speed 12 / 24 m/sec

Longitudinal unit 1:
Drive 16.5 / 21 kW, 1480 / 2950 rpm, sanding speed 10 / 20 m/sec

Longitudinal unit 2:
Drive 16.5 / 21 kW, 1480 / 2950 rpm, grinding speed 10 / 20 m/sec

Longitudinal unit 3:
Drive 16.5 / 21 kW, 1480 / 2950 rpm, grinding speed 10 / 20 m/sec

Longitudinal unit 4:
Drive 16.5 / 21 kW, 1480 / 2950 rpm, grinding speed 10 / 20 m/sec

Brush 1:
Drive 4.0 kW, 1430 rpm

Brush 2:
Drive 4.0 kW, 1430 rpm

Feed:
Speed ​​6 - 30 m/min
Drive 9.2 kW
5 conveyor belts

Note:
The technical data and descriptions are transcribed from the original order confirmation. The information is for reference only and is not legally binding.
