Lacquering of narrow edge surfaces
Put into operation: 2021
Purpose: to spray edges of furniture panels located in stacks.

Consisting of:
- Infeed unit
- 1. Throughfeed Drilling Machine
- 2. Throughfeed Drilling Machine
- Stacking Unit

Used packaging line Schweber consisting of:
Carton erecting machine
Belt conveyor
Belt conveyor
Carton sealing machine
Belt conveyor
Robot palletizing system
Pallet conveyor line

Used packaging line floor consisting of:
- Carton erecting machine
- 3 x goods conveyor belts
- Carton sealing machine
- Angular transfer station

Used packaging line fronts consisting of:
- Feeding system
- Mirror assembly system
- Carton erecting machine
- Carton sealing system
- Angular transfer station
- Belt conveyor section 4-fold

For door dimensions:
- Lengths: 1,800 - 2,300 mm
- Widths: 500 - 1,300 mm
- Thicknesses: 35 / 40 / 44 mm

The line consists of:
• SORBINI Smartcoater SP1 coating rollers, built in 2009, approximately 3,000 operating hours
• SUPERFICI model 2UVPLUS65 UV lamps, built in 1998, mounted on a VENJAKOB conveyor belt, built in 1998, average operating hours: 8,500
Max. element width: 1,300 mm

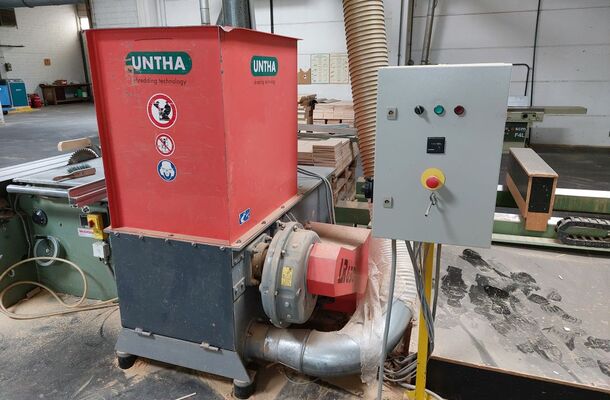

- 2 motors 11 kw (15 hp) each
- productivity max 850 kg/hour
- upper opening 1220×1020 mm
- lower opening 562×462 mm
- cutting knives diameter 235 mm

- 4 rollers
- Working width: 1400(1350) mm

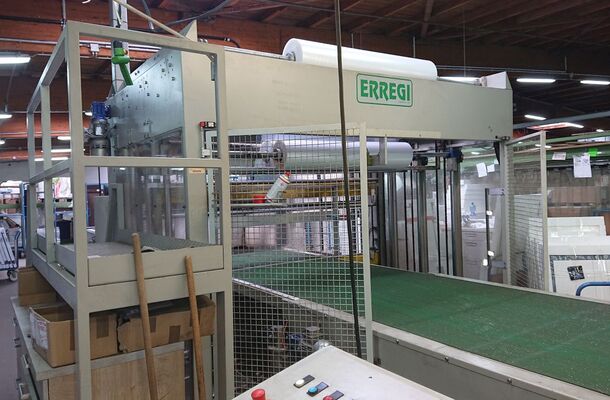

packaging machine:
- Welding length: 2500 mm
- Number of upper film rolls: 3
- Upper film width: max. 2450 mm
- Number of lower film rolls: 3
- Bottom film width: max. 1450 mm
- Belt width: 1300 mm

Shrink tunnel:
- Length (heated zone): 2700 mm
- Total length: 3700 mm
- Transport width: 1500 mm

- number of chambers 3
- capacity of one chamber 90 m3
- chamber size 9.6x7.3x4.1 m
- final moisture content 10 +/- 2%

system consists of:
- Weinig UC Matric

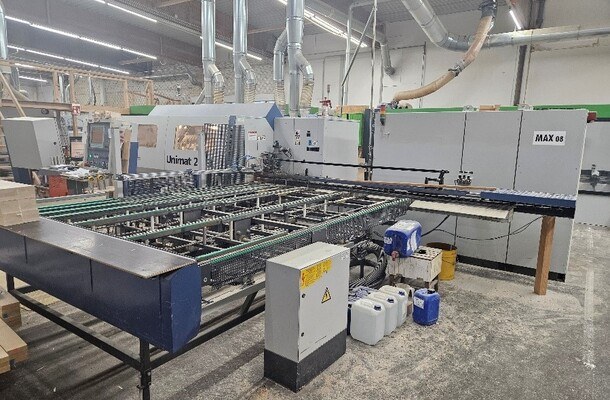

- Weinig Unimat 23 EL
- Schleifmaschine Roto Finish
- Weinig Unirex
- Weinig Unitec
- Weinig Univar
- Wender
- Beipass für Bestückung Biesse
- Auslaufförderer
- Biesse WinLine One
- Biesse Parternosterpuffer
- Biesse Portal 1
- Biesse Portal 2
- Biesse Rundbogentisch
- Biesse Flexstoor 1 and 2

The system consists of:
- Feeder
- Transport table with a cleaner
- Spray coating machine
- Drying tunnel with IR lamps, 2 pieces
- UV tunnel
- Roller conveyor
- Turntable
- Transport table
- Transport table with a cleaner
- Spray painting machine
- Drying tunnel with IR lamps, 2 pieces
- UV tunnel
- roller conveyor

The system consists of:
- Feeder
- Transport table with a cleaner
- Spray coating machine
- Drying tunnel with IR lamps, 2 pieces
- UV tunnel
- Roller conveyor
- Turntable
- Transport table
- Transport table with a cleaner
- Spray painting machine
- Drying tunnel with IR lamps, 2 pieces
- UV tunnel
- roller conveyor

Workpiece dimensions
- Length: 220 cm
- Width: 150 cm
- Height: 35 cm

- Mass m: 140 kg
- Throughput: 4200 kg/h
- Bulk density: 199 kg/m³

- working width: max. 200 mm
- working height: max. 40 mm
- workpiece length: min. 1000 mm
- feed speed: 20 m/min

Working width 1.600 mm
2 application rollers with diameter 250 mm
2 dosing rollers with diameter 210 mm
Electric power needed 1,5 KW

Spray machine for automated painting of furniture parts, doors, stairs and interior fittings with water- or solvent-based paints.

Завод по производству 3-х слойного паркета, включая:
- лесопилку
- производство паркета
- производства дверей, окон и клеёного мебельного щита из массива

- Working width 1.260 mm
- Display for height-adjustment

consisting of:
Wrapping machine
Shrink tunnel

Новый станок

- новый станок пропускная ширина 1360 мм

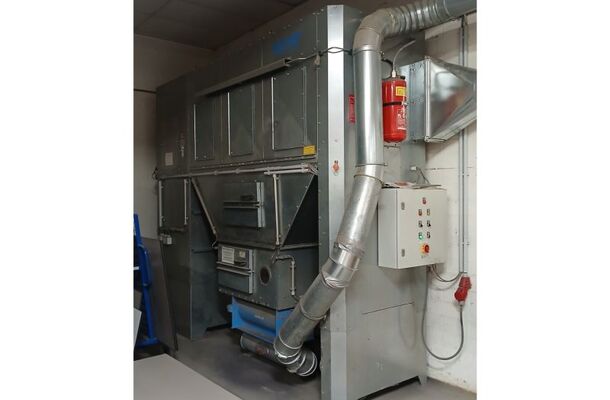

- Powerful extraction center for entire machine
  parks
- Energy-saving miracle thanks to performance-
  adapted fan control
- Dust-tested: H3 test mark, dust class “M”
- Can be combined with various chip discharge
  systems

Volume flow: 1.593 m³/h
Motor power: 2,2 kW
Negative pressure: 2.200 pa
Filter surface area: 9,5 m²
