ФабрикатSORBINI
типSmartcoater SP1
Состояниебывший в употреблении
Инвентарный номер0401822
Год выпуска2009

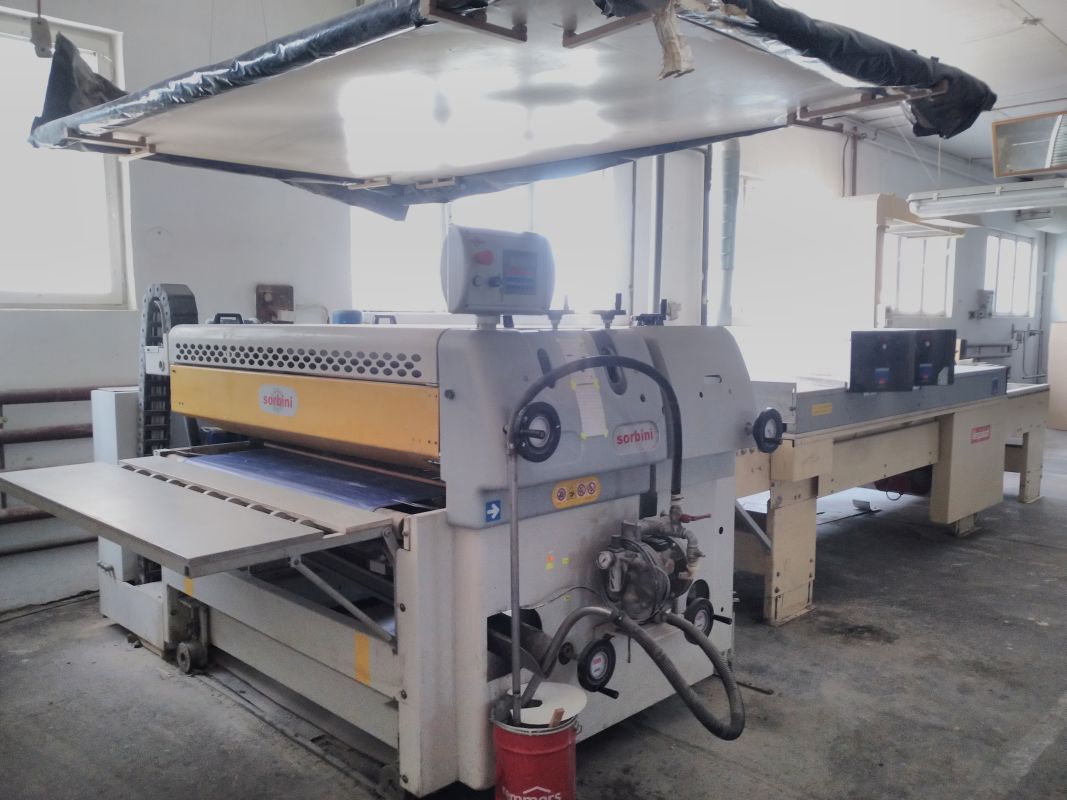

The line consists of:
• SORBINI Smartcoater SP1 coating rollers, built in 2009, approximately 3,000 operating hours

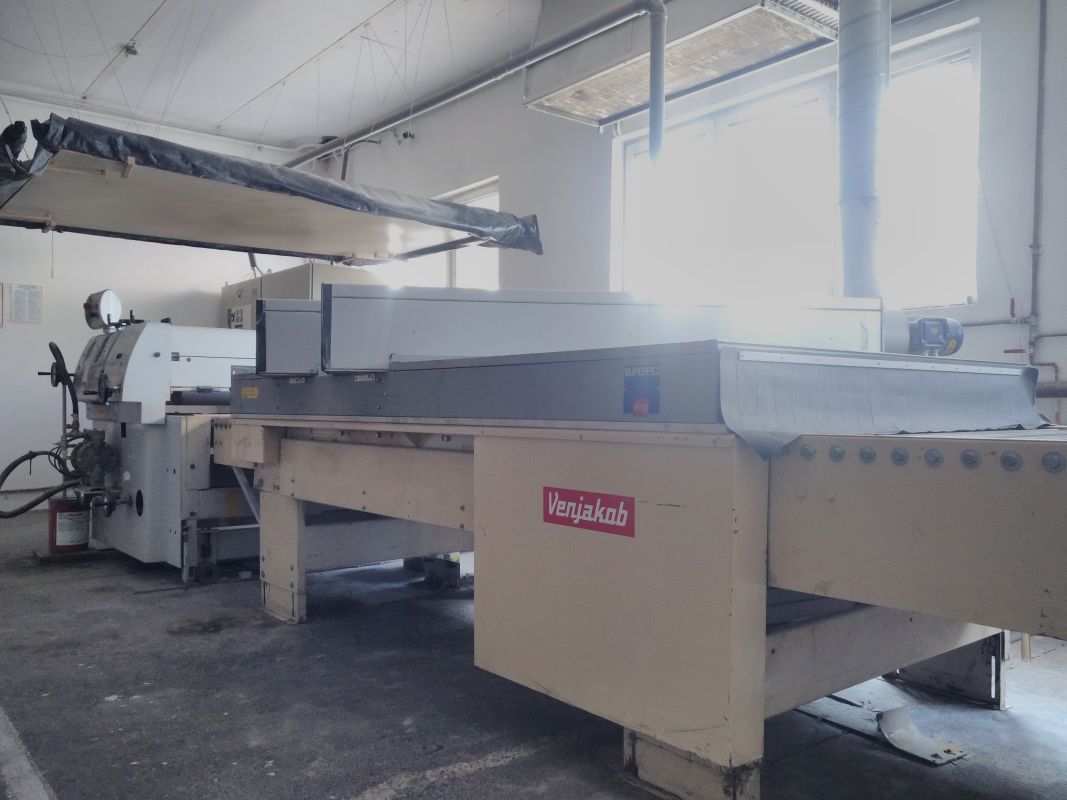

• SUPERFICI model 2UVPLUS65 UV lamps, built in 1998, mounted on a VENJAKOB conveyor belt, built in 1998, average operating hours: 8,500
Max. element width: 1,300 mm
Вопросы по этому станку?
Painting line
The system consists of:

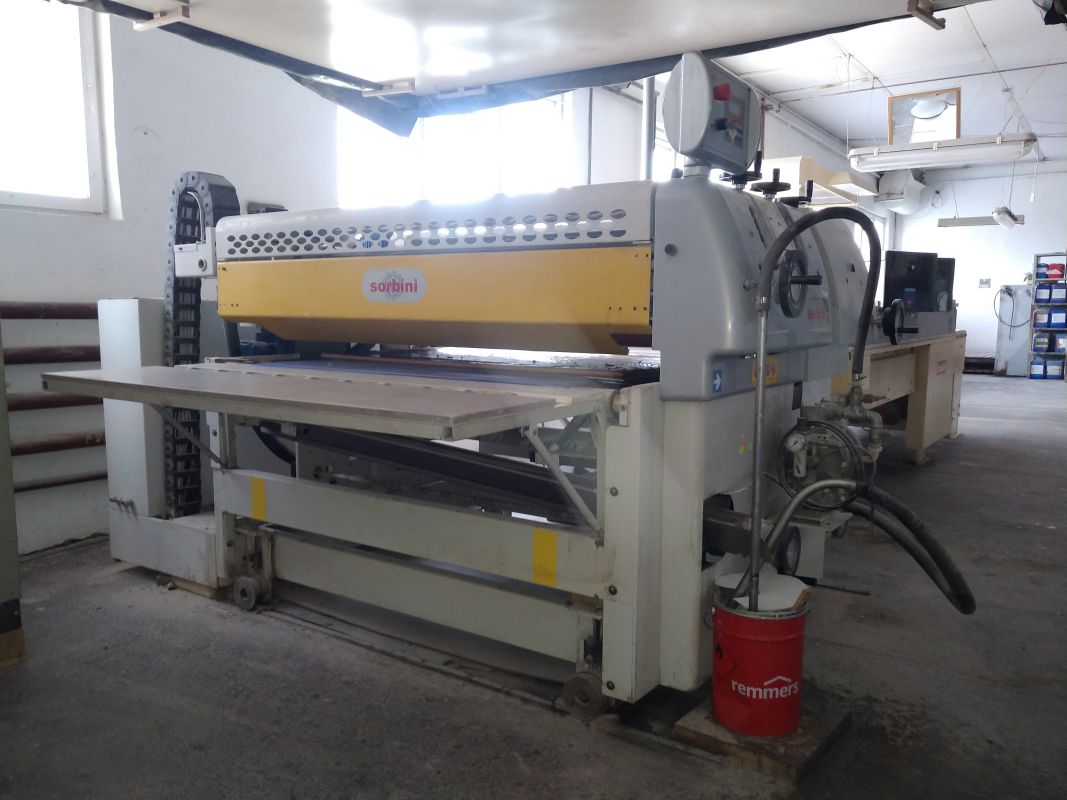

• SORBINI Smartcoater SP1 roller coating machine, built in 2009, approx. 3,000 operating hours
Roller coating and filling machine
Technical specifications
- Working speed: 5–20 m/min
- Workpiece width: max. 1,350 mm
- Workpiece thickness: max. 100 mm

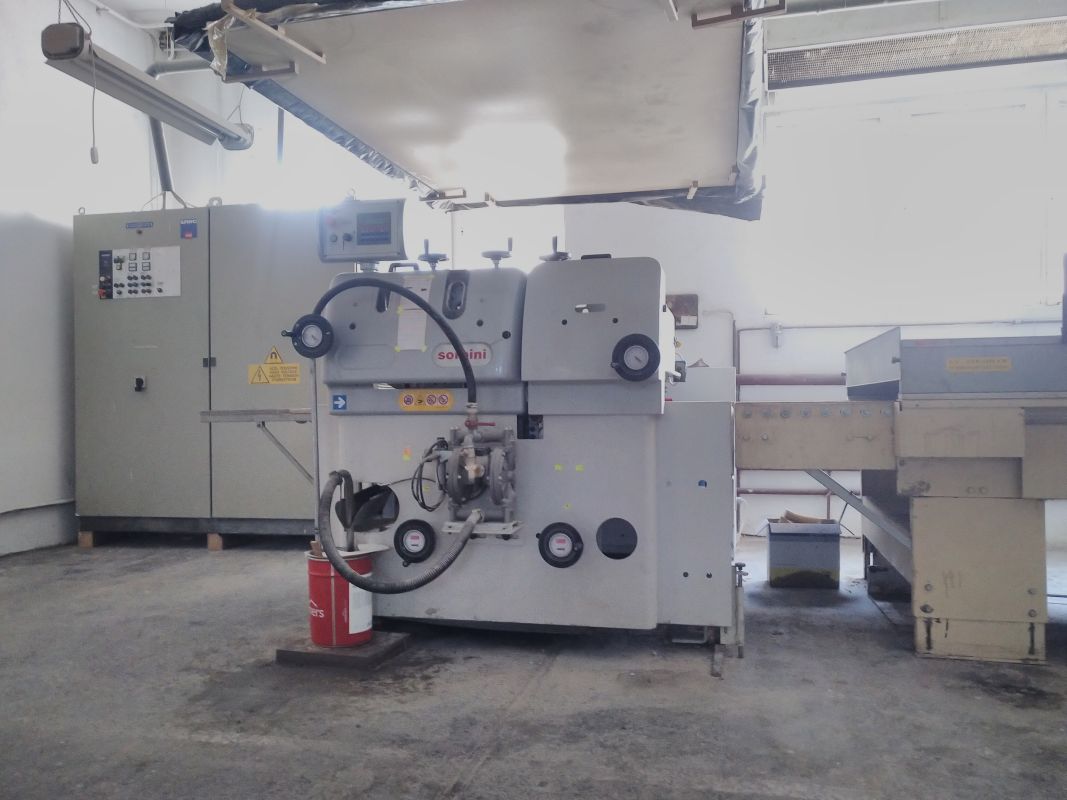

• UV lamp control cabinet
• SUPERFICI UV lamps model 2UVPLUS65, built in 1998, on a VENJAKOB conveyor belt, built in 1998, average operating hours: 8,500
Working range: 1.5–7.5 m/min.
Max. element width: 1300 mm
Dimensions (length x width)
• Lamps with conveyor belt: 5100 mm x 1700 mm (+ 600 mm motors)
• Rollers: 2200 mm x 2900 mm
• Control cabinet for UV lamp: 2000 mm x 800 mm
Note:
The technical specifications and descriptions are a copy of the original order confirmation. Data is provided for information purposes only and is not binding.
