С клеевым агрегатом
С клеевым агрегатом
mit Klebeeinheit
С устройством для склеивания
Mit Klebevorrichtung

Макс. длина заготовки: 6 175 мм
Главный шпиндель 15 кВт
18-кратное устройство смены инструмента
Сверлильная группа 30 шпинделей
дополнительный фрезерный шпиндель 6 кВт
FLEX-5 агрегат

Price: 48.000,00 EUR

- с кромконаклеивающим узлом
- зона обработки по Х 6000 мм
- фрезерный шпиндель на 12 кВт
- четвертая ось на 360 град. для работы с адаптерными агрегатами
- сверлильная группа на 21 шпиндель
- магазин на 18 мест

4-axis console machine
- 12 workpiece supports
- 6250 mm in X-direction / 2 x 2975 mm in pendulum mode
- 1300 mm in Y-direction
- 2 x drilling head with 23 vertical and 14 horizontal spindles
- 2 milling spindles a 9 kW
- Additional vacuum pump 100 m³/h
- Separate vacuum clamping system (4 vacuum fields in X-direction)
- 18-fold tool holder
- LED positioning system

- unterbrechungsfreier Werkstücktransport
- Automatischer 4-fach Werkzeugwechsler
- Keine Werkstücklängenbegrenzung und 1250mm Arbeitsbreite
- optional mit Beschickung und Abstapelung

ГЛАВНЫЙ ШПИНДЕЛЬ 12 кВт - HSK F63
РАБОЧАЯ ДЛИНА ПО Х ОСИ 7250 ММ
РАБОЧАЯ ШИРИНА ПО ОСИ Y 1300 ММ

Price: 17,000.00 EUR

- Insgesamt 2 Frässpindeln (1 mit 5. Achse)
- 10-fach Tellerwechsler
- 10-fach linearer Wechsler
- Cosmec Rastertisch besonders gut zur Bearbeitung leichter / kleiner Werkstücke

Vitap's new innovation:
- High-Performance CNC machine for the production of acoustic panels with micro-perforation

- Every 4 seconds you can punch 1.000 up to 2.331 holes (depending on the workpiece)

- The ideal CNC solution to process narrow and complicated work pieces
- for massive wood parts like slat frames
- with magazine
- Workpiece length up to 3350mm, 2-field operation

CNC - Bearbeitungszentrum für die Komplettbearbeitung von unterschiedlichsten Türzargen

- Monobloc-boring head:
55 spindles, spindle distance 32 mm
- workpieces max.: X=unlimited, Y=1250mm, Z=50mm

For point-to-point throughfeed machining
With 2 working units for drilling and milling
With automatic loading and workpiece return system

- бесперебойная транспортировка заготовок
- Автоматический магазин для смены инструмента на 4 места
- Нет ограничений по длине заготовки
- опционально с подающей и разгружающей системой

Working Area: 1300 x 2500 x 200 mm
9 kW High-Performance Spindle
Linear Tool Changer
Vacuum Pump: Becker, 250 m³/h
Including Tools

PRICE:  28,800.00 EUR

- Vertical CNC panel milling machine

- CNC machining center for timber beams, strips and other narrow parts
- Space-saving and quick magazine loading
- 360° sawing, milling and drilling unit
- immediately available in our showroom

Speed of the axes: X/Y = 50 m/min / Z = 15 m/min
Workpiece length: 200 - 3,050 mm
Workpiece width: 50 - 1250 mm
Workpiece thickness: 8 - 80 mm
Transport speed: up to 25 m/min

Speed
- X - axis collets: 138 m/min
- Y - axis: 80 m/min
- Z - axis: 50 m/min
- Z - axis pressure plate: 27 m/min

Travels
- X-axis: 2450 mm
- Y-axis: 1400 mm
- Z-axis: 800 mm

Axes: 4 (X/Y/Z - C)
Operating hours: approx. 29,307 hours
Number of parts: approx. 300,411 pieces

Processing speeds per axis:
- max. 90 m/min on the X-axis
- max. 30 m/min on the Y-axis
- max. 15 m/min on the Z-axis

- 4-axis milling spindle 7,5 KW 8000-24000 rpm, with automatic 18-fold rotation changer.
- 3-axis milling spindle 4 Kw. 7500-12000 rpm, with manual tool changer
- HSK 63F
- volautomatic set-up table
- safety tread mats
- IMAWOP 6.0
- Machining range X = 3000 mm
- machining range Y = 1200 mm

- Working area:
X = 3060 mm,
Y = 1260 mm,
Z = 150 mm
- 7 kW (9.5 HP) electrospindle with ISO 30 adapter
- BH 21L drill head

- Machining range X= 3700 Y=2100 Z= 200
- 9 kW IOX spindle
- 12-fold linear traveling tool changer
- 9 vertical drilling spindles, SCM gearbox

- Processing range X: 4200 mm
- with standard units Y: 1200 mm
- Tool holder: HSK F63
- Design: disk changer
- Magazine places: 18

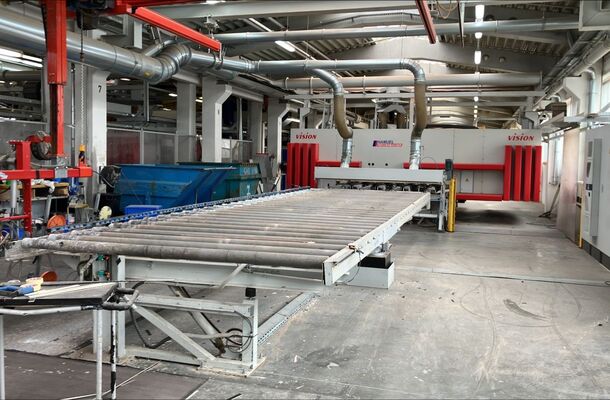

consisting of:
- Portal loading system PBA-52M
- BMA-DLS-CNC drilling and assembly system
- BAD-DTW-CNC drilling and assembly system
- Feeding and buffer section
- Automatic glue application LA - CNC
- Feeding and turning device ZWA-1-CNC
- KP-6-CNC Carcass press

- Working range X: 6175 mm
- Working range Y: 1900 mm
- Working range Z: 300 mm
- Tool changing stations: 30

- Machining range with standard units: X 3000 mm, Y 1000 mm

- Worktable length: 3100 mm
- Work table width: 1550 mm
- Workpiece thickness: max. 80 mm
- Tool holder: HSK63

- Processing area 4300 x 1250 mm
- 8 pcs. Workpiece support
- main spindle 7.5 Kw / 11kw
- horizontal drilling unit
- vertical drilling unit
- grooving saw
- 18-fold tool changer
