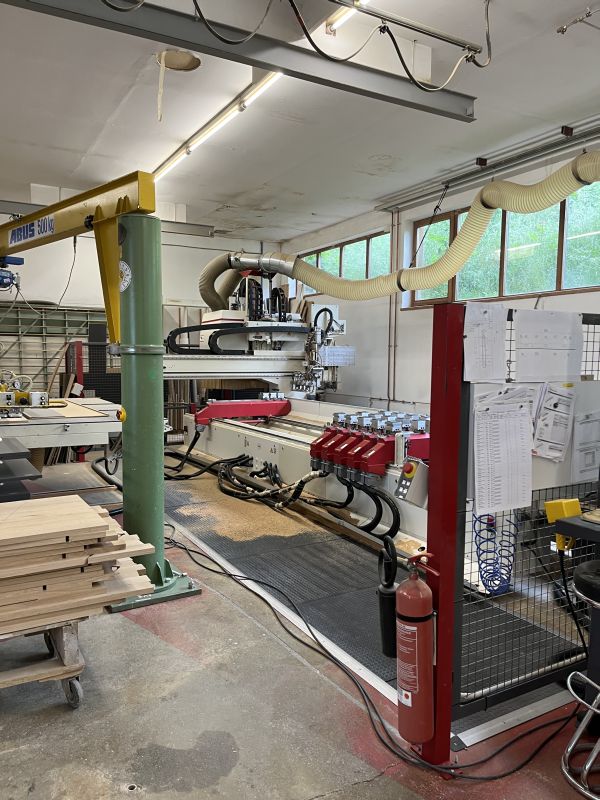

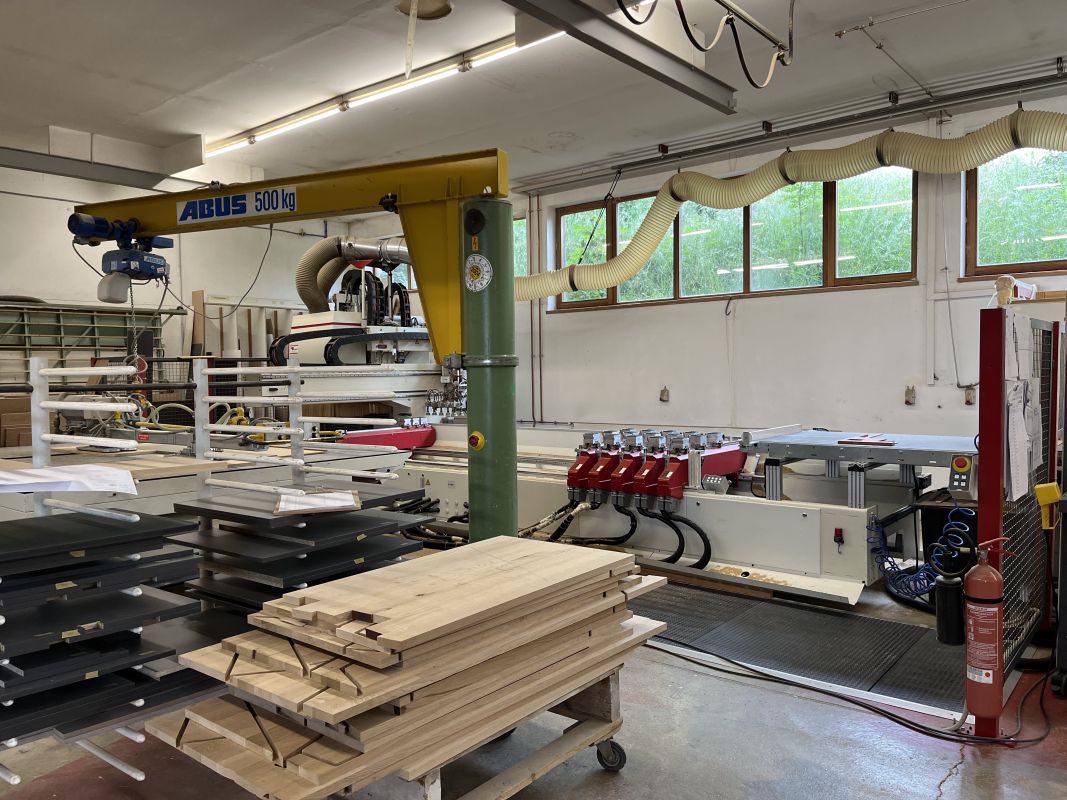

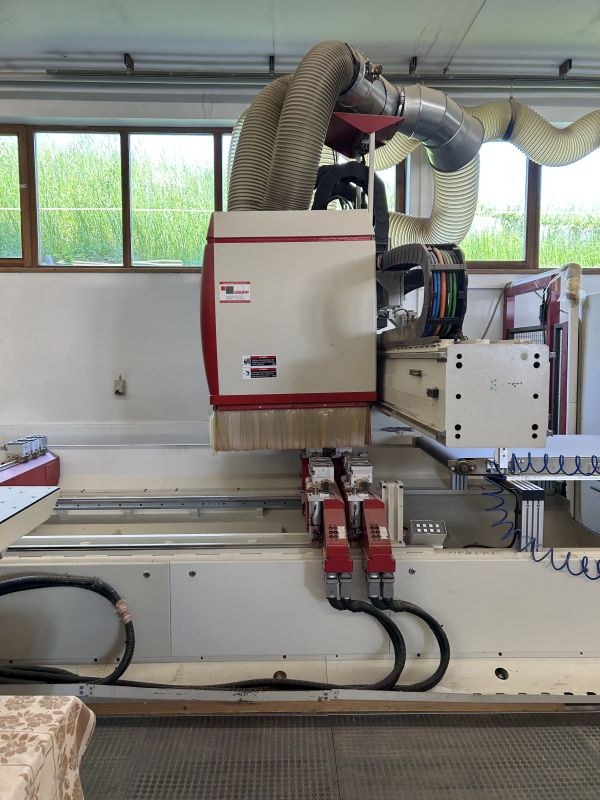

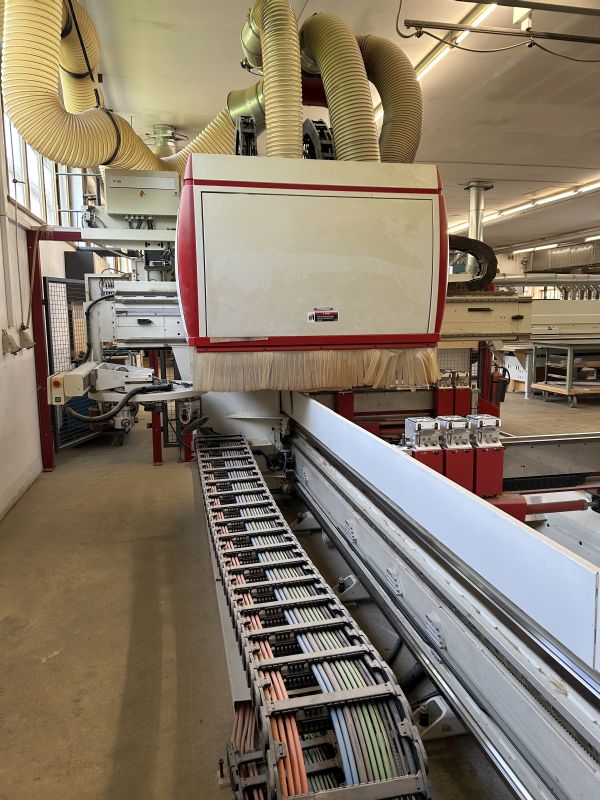

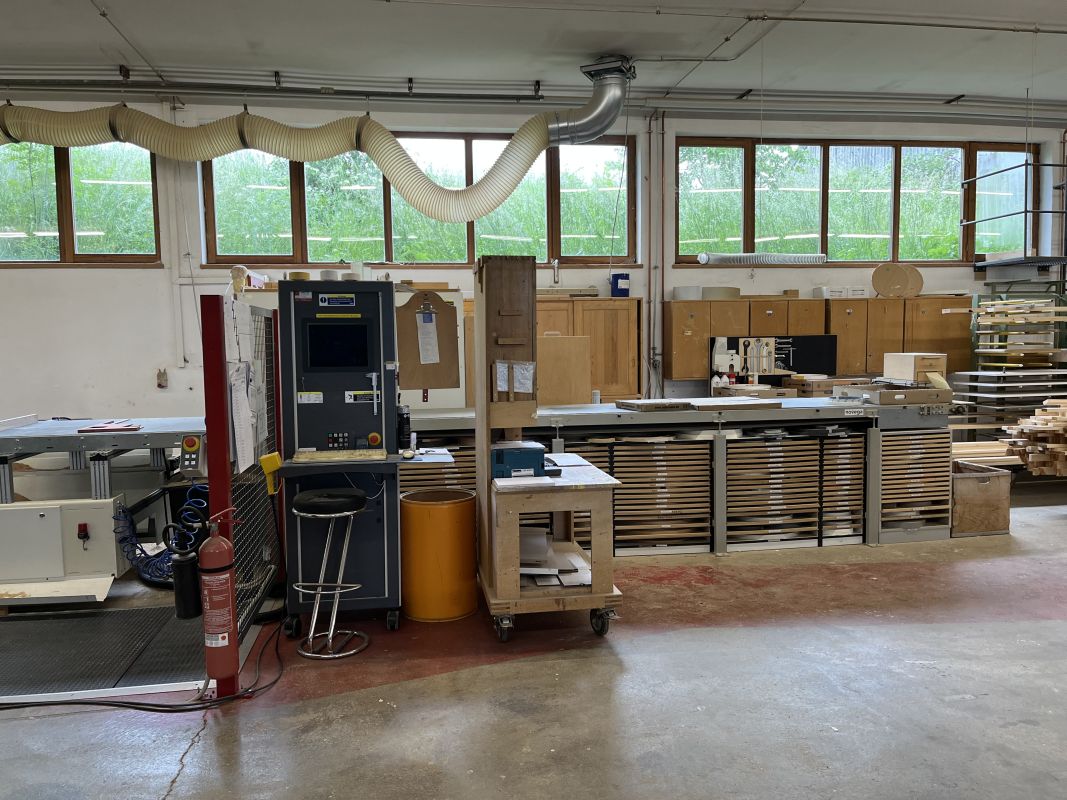

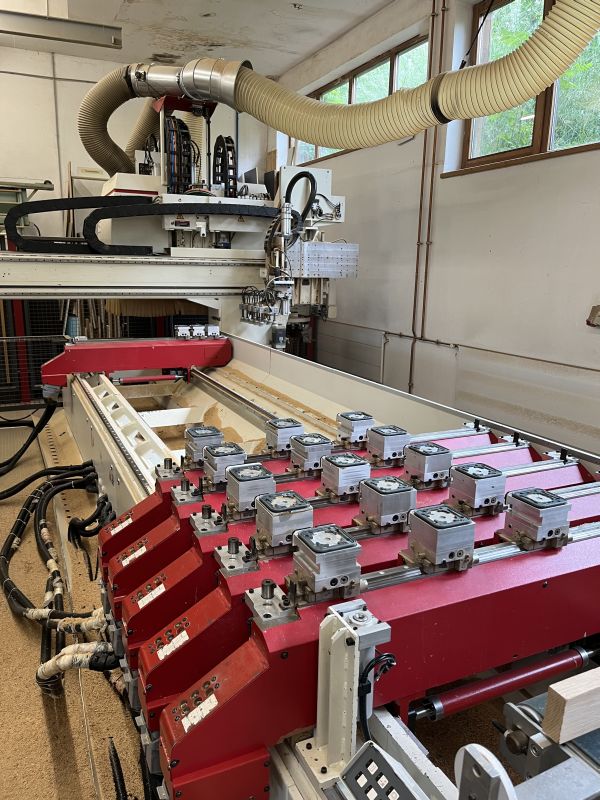

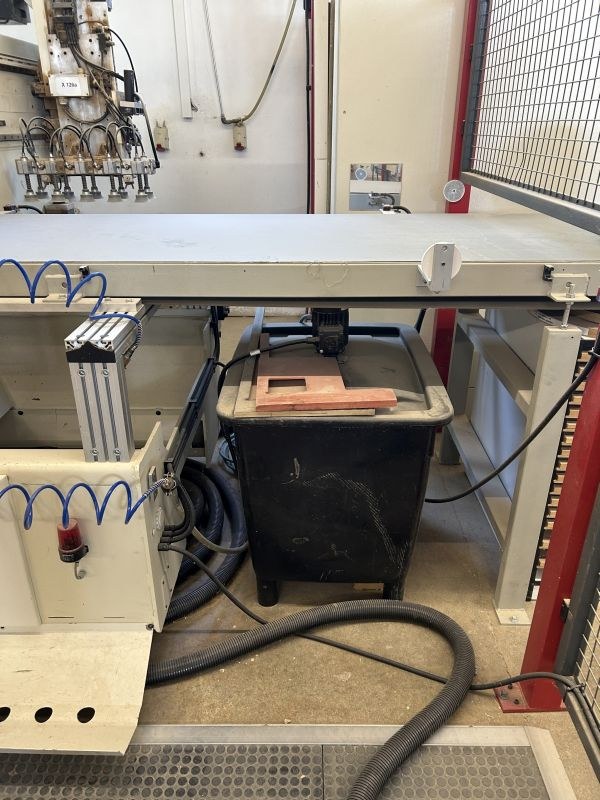

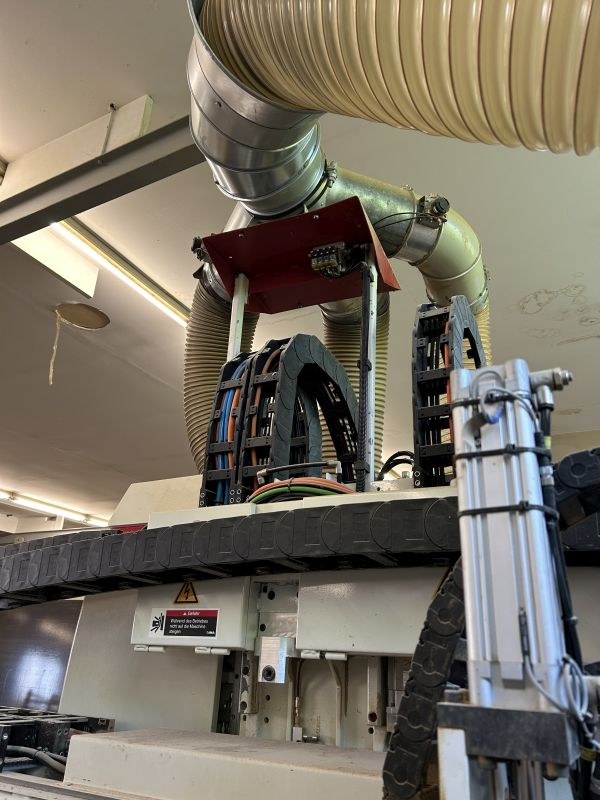

CNC-machining center

CNC-machining center
Brand: IMA
Type BIMA CUT 120/240
year of construction: 2003


technical data
- Processing range X: 4200 mm
- with standard units Y: 1200 mm

Max. clamping height from

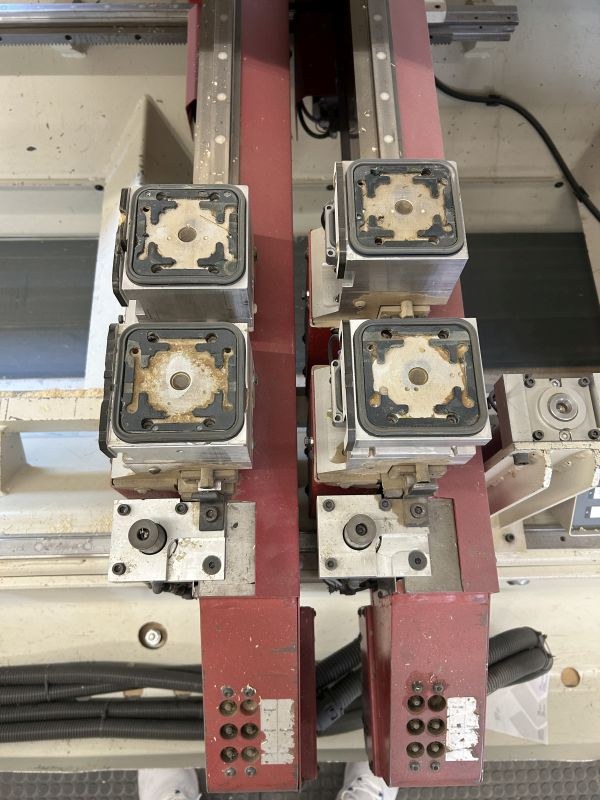

- upper edge of suction plate Z1: 100 mm
- Workpiece thickness Z2: 14 - 38 mm

Work table height: approx. 1000 mm

Alternating field range
- without pendulum machining X: 2 x 2000 mm
- Free space in the middle X: 200 mm
- with pendulum processing X: 2 x 1500 mm
- Free space in the middle X : 1200 mm
- Weight: 7200 kg

Main spindle
- Tool holder: HSK F63, taper diameter = 38 mm
- Tool infeed: automatic
- Pull-in force: 11000 N
- Tool weight: max. 6 kg
- Direction of rotation: clockwise/anticlockwise rotation, programmable
- Drive: frequency-controlled three-phase motor
- Drive power: 7.5 KW in S-1 mode
- Spindle lubrication: one-time factory grease lubrication
- Spindle cooling: water cooling
- without NC rotary axis

1 automatic tool/adapter change magazine
- Arrangement: Moving with the support in X-direction
- Design: disk changer
- Magazine places: 18
- Tool coding: place-coded
- Tool weight: max. 6 kg
- Tool weight: max. 60 kg
- Tool length: max. 150 mm
- Tool diameter: max. 100 mm with full occupancy / max. 150 mm with free secondary positions or nesting

1 adapter unit saw, 90 degree fixed
- Saw blade diameter: 200 mm (120-240 mm possible)
- Speed: max. 15000 rpm in continuous operation

1 adapter unit horizontal drilling and milling head (cross head)
- Number of spindles: 4
- Direction of output rotation: right
- Speed: max. 15000 rpm in continuous operation

1 adapter unit for drilling lock case/rung holes
- Direction of output rotation: right
- Speed: max. 12000 rpm

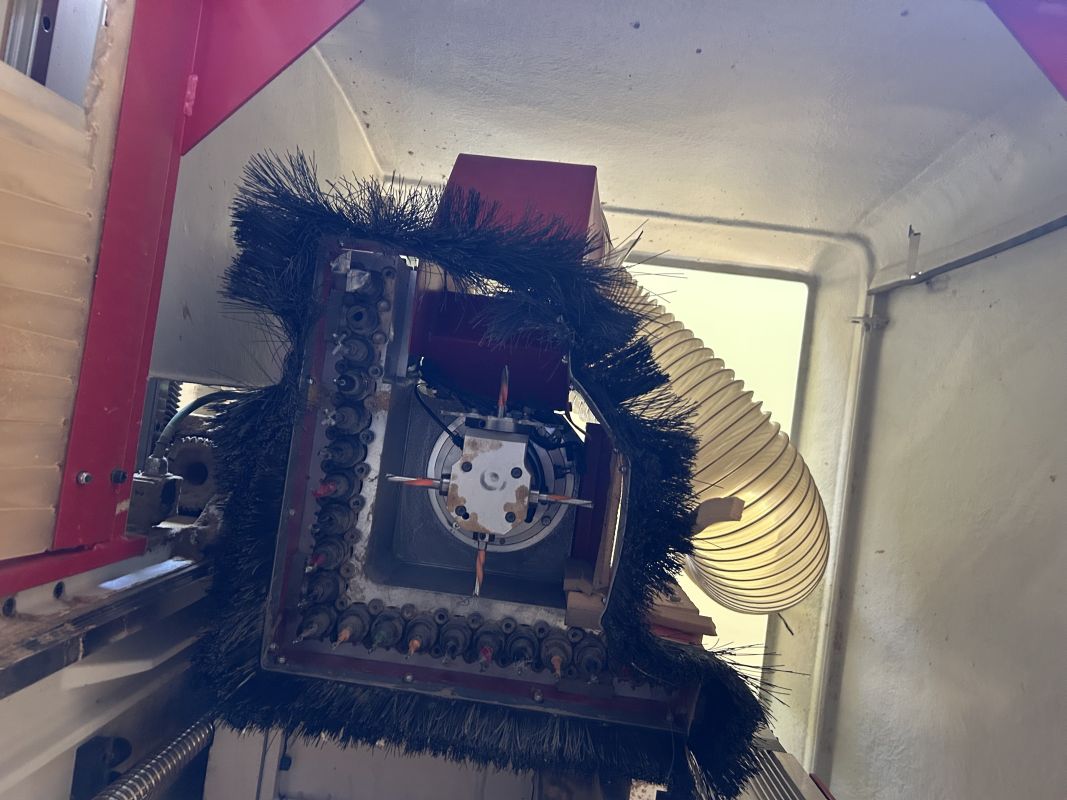

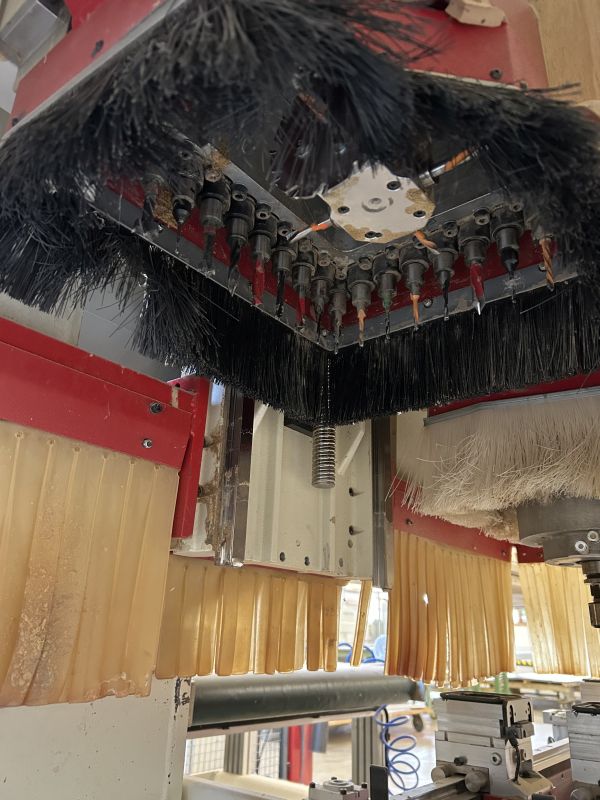

1 vertical drilling unit S21
- Number of spindles: 21
- Drive: 4 kW, 50 Hz
- Direction of rotation: right/left
- Speed: 6000 - 9000 rpm
- Drill bit holder: Ø 10 mm with clamping screw
- Total drill bit length: max. 77 mm
- Drill diameter: max. 35 mm

1 attachment Horizontal drilling-sawing unit (crosshead)
- Number of spindles: 4
- Drill bit holder: Ø 10 mm with clamping screw
- Direction of output rotation: left
- Speed: 4500 - 6000 rpm
- Drill diameter: max. 12 mm
- Grooving saw diameter: max. 125 mm
- Saw holder: Ø 30 mm with clamping flange
- Saw blade width: max. 3 mm
- Swivel range: 0 or 90

Milling spindle mounted on mounting position 1 on the multi-spindle drilling head
- Power: 6 kW S1; 7.5 kW S6
- Tool holder: HSK 63F
- Speed infinitely variable 1500 - 18000 min./-1
- incl. pneumatic feed
- incl. suction nozzle with 200 mm diameter
(only in conjunction with 14 or 21 mm drilling gear)

1 adapter unit saw, 0-100 degree adjustable
- Saw blade diameter: max. 240 mm
- Speed: max. 12000 rpm in continuous operation
- Tool holder: 1x Weldon diam. 10 mm / 1x saw blade holder diam. 30 mm
- Swivel range: 0 - 100 degrees according to scale

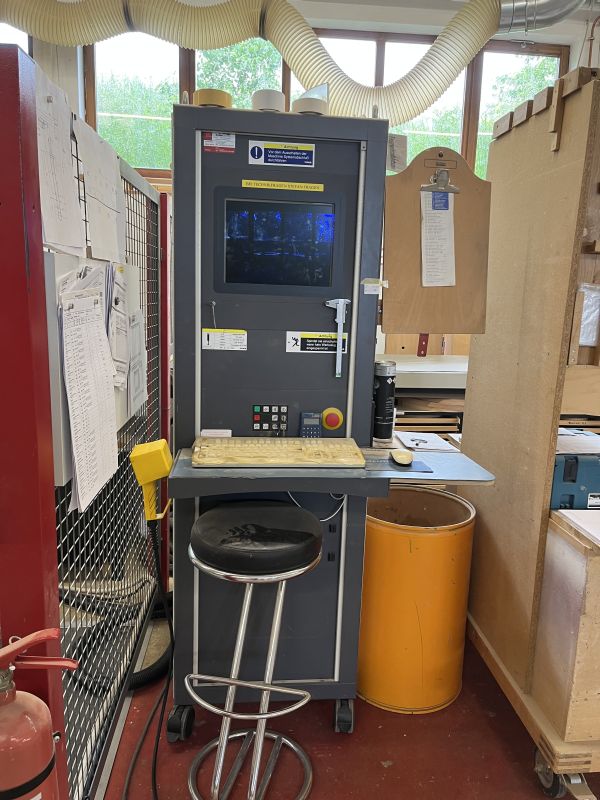

Graphical user interface IMAWOP for PC computer

Bima Cut Editor office

Bima Cut Editor import interface

Control for label printers

Label printer



Note:
The technical data and descriptions are transcribed from the original order confirmation. The information is for reference only and is not legally binding.
