window production line

window production line
Brand: Weinig, Biesse

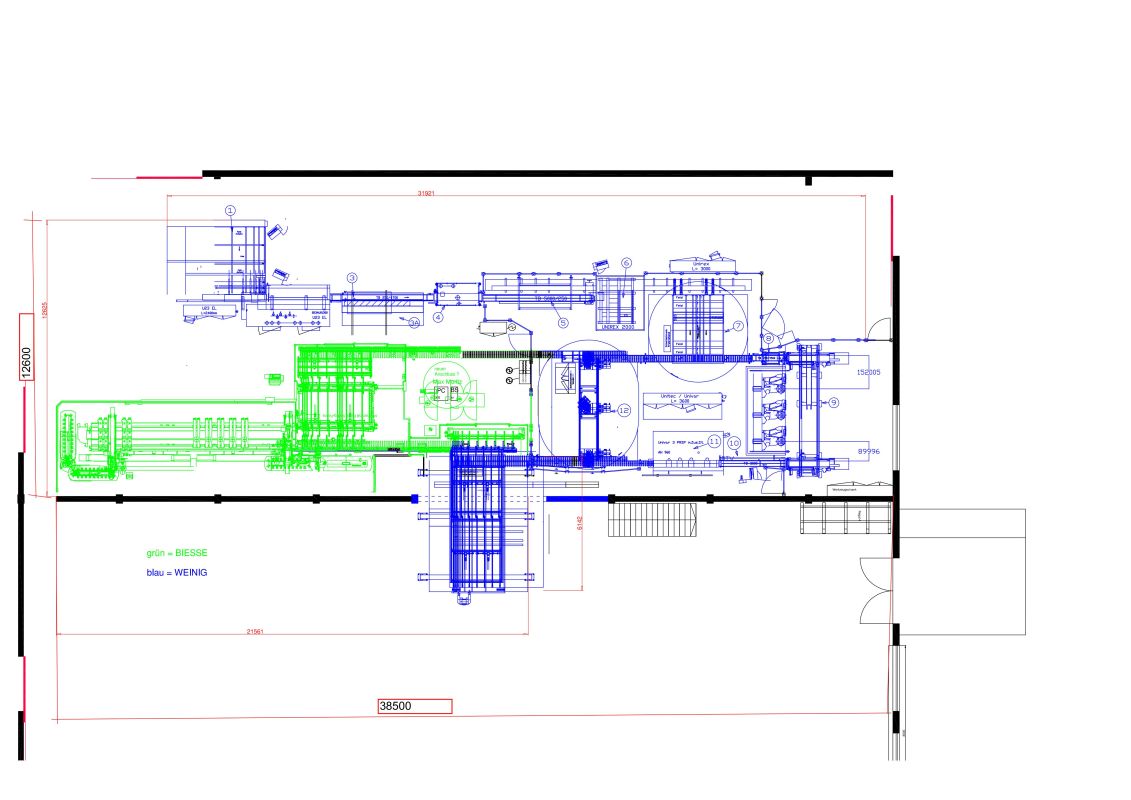

The system is currently interlinked and consists of a Wenig UC Matric and a Biesse WinLine One. Both machines work independently of each other.

The system consists of the following machines:

System 1
Weinig UC Matric
Year of construction: 2007
Technical data
- Support table with 3 fields
- Automatic infeed into planer

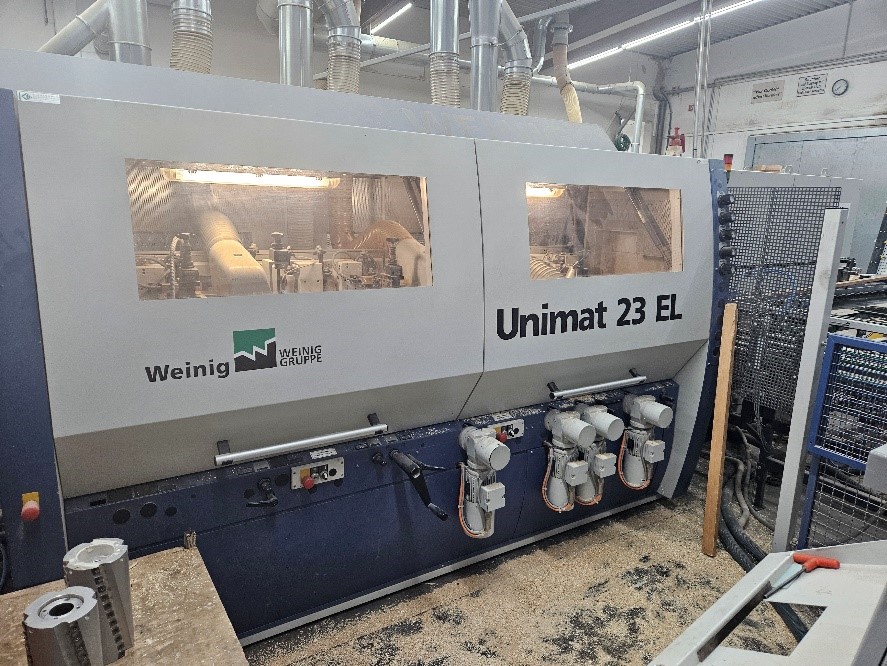

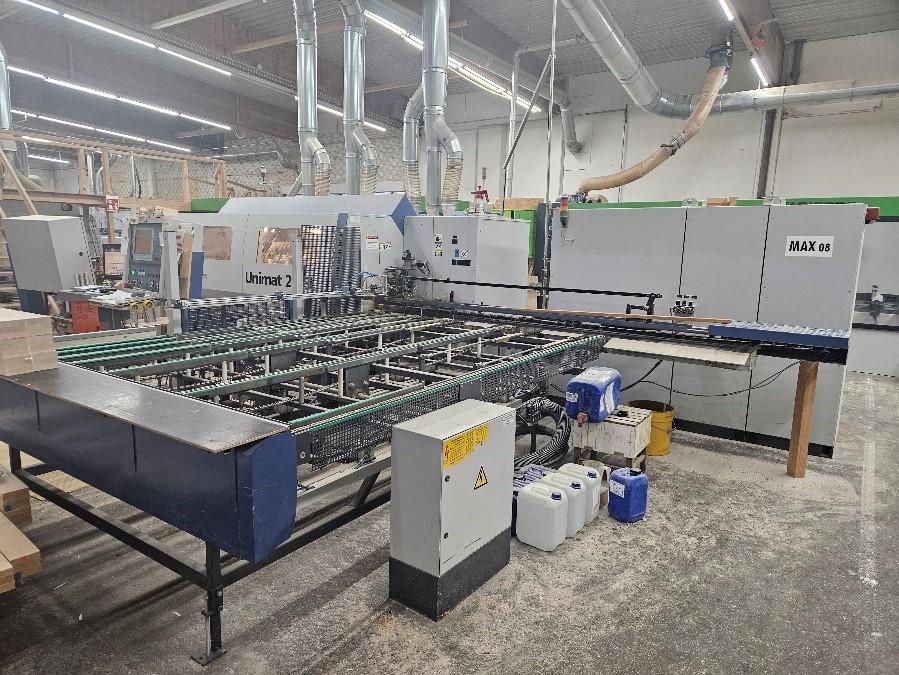

Weinig Unimat 23 EL
Technical data
- 2 spindles at the bottom
- 2 spindles top
- 1 spindle right
- 1 spindle left
- Glass strips separation
- Glass strips profiling
- Strips ejection and sorting (1 box with 3 compartments)

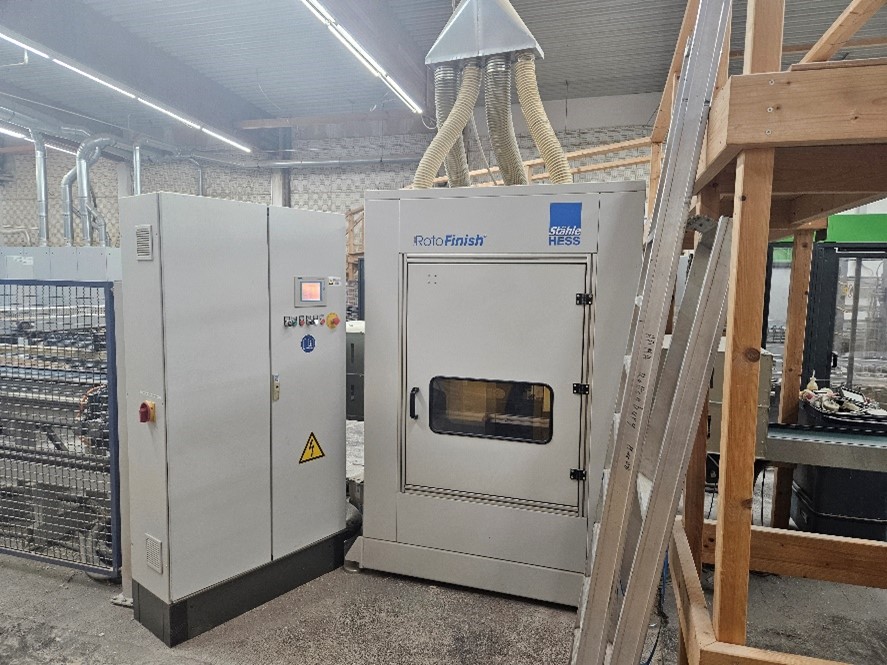

Sanding machine
Technical data
- Roto Finish

Unirex
Technical data
- Cross-cut saw
- Drilling unit
- Trimming unit Lock case

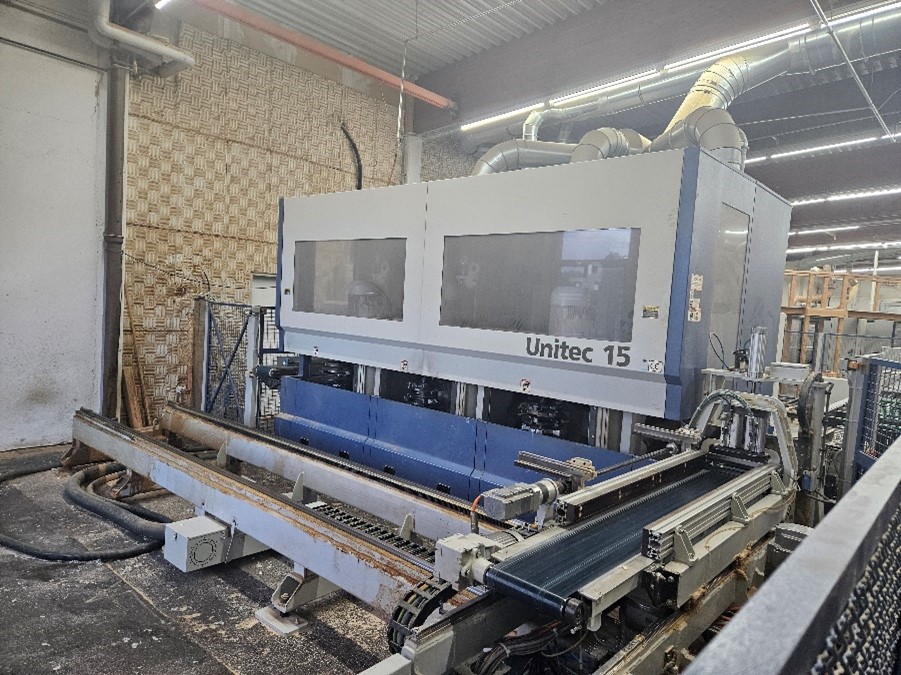

Unitec 15
Technical data
- 3 slotting spindles
- Counter movements possible
- Max. slotting depth 120 mm

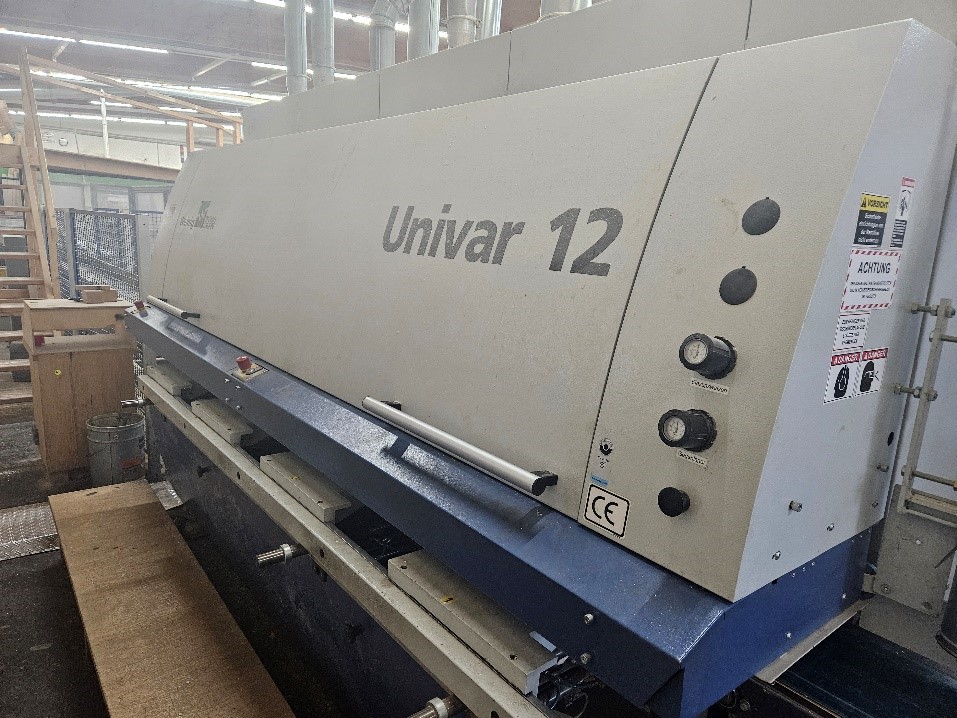

Univar 12
Technical data
- 7 spindles

turner

By-pass for Biesse loading

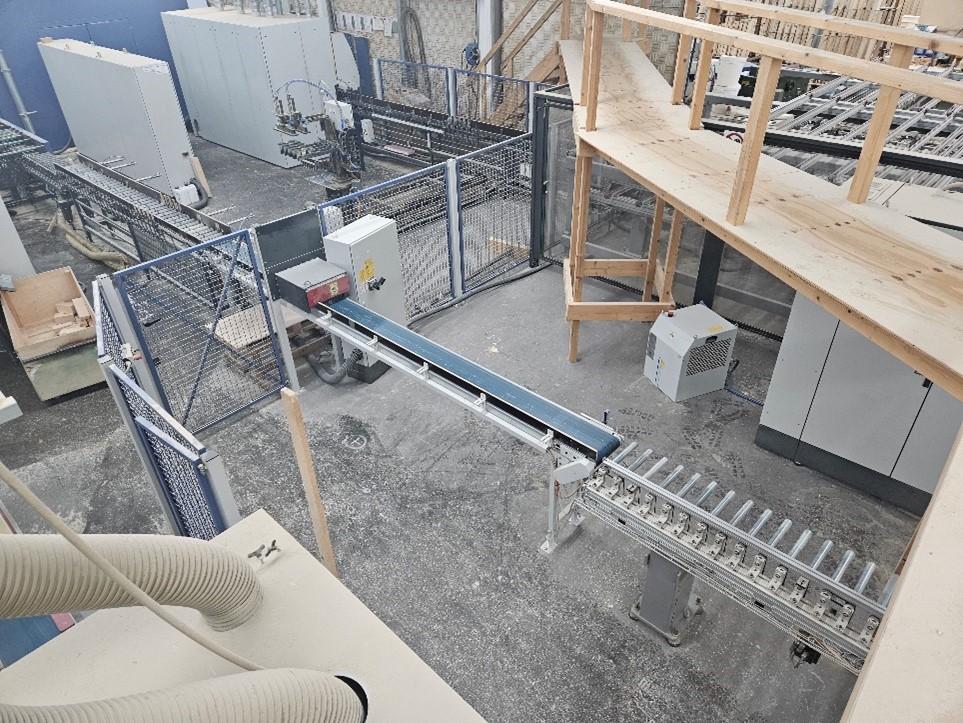

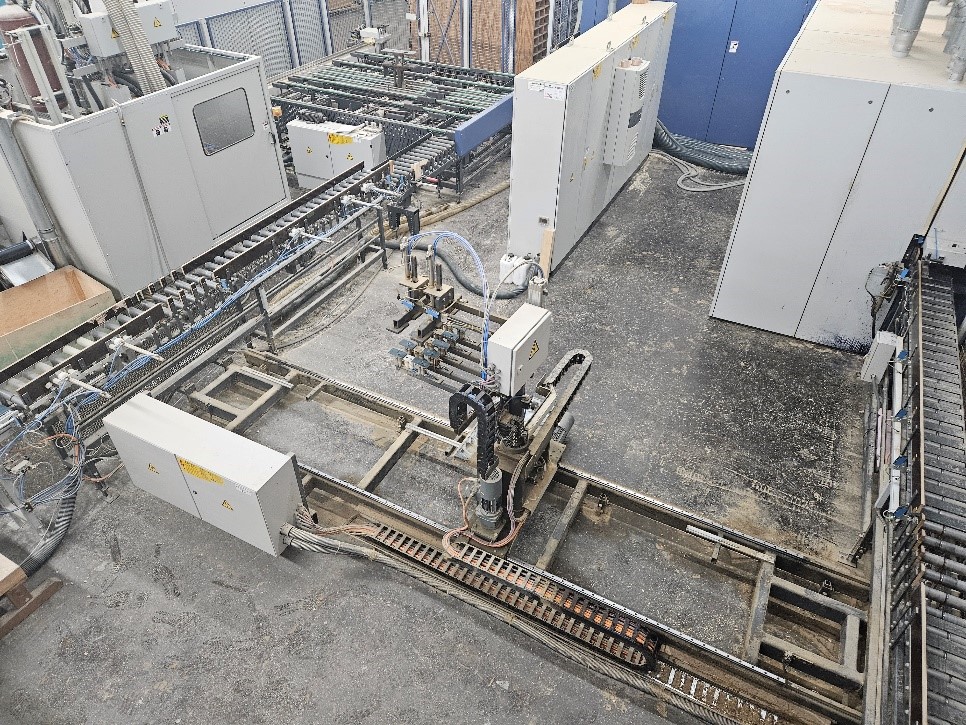

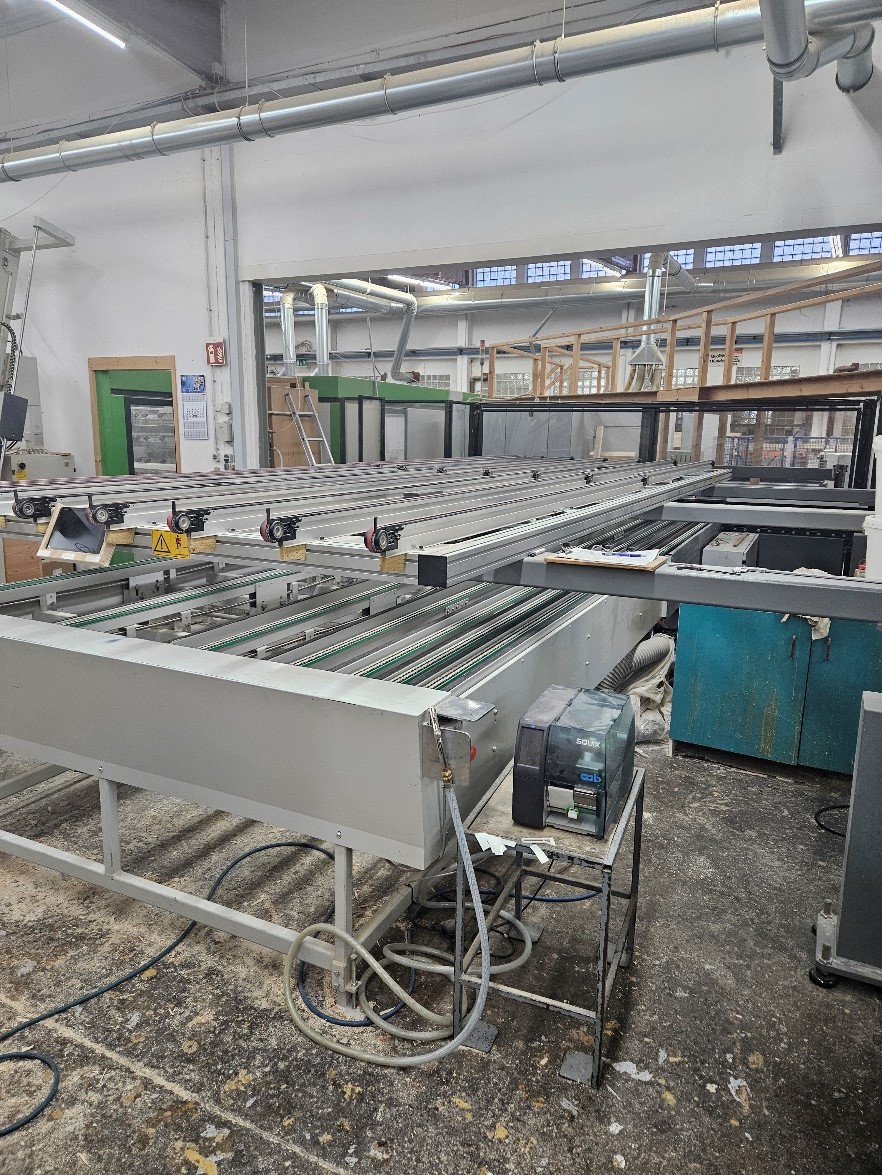

Outfeed conveyor
Technical data
- top Biesse
- Bottom Weinig
- One label printer each
- Part length 4500 mm each

System 2

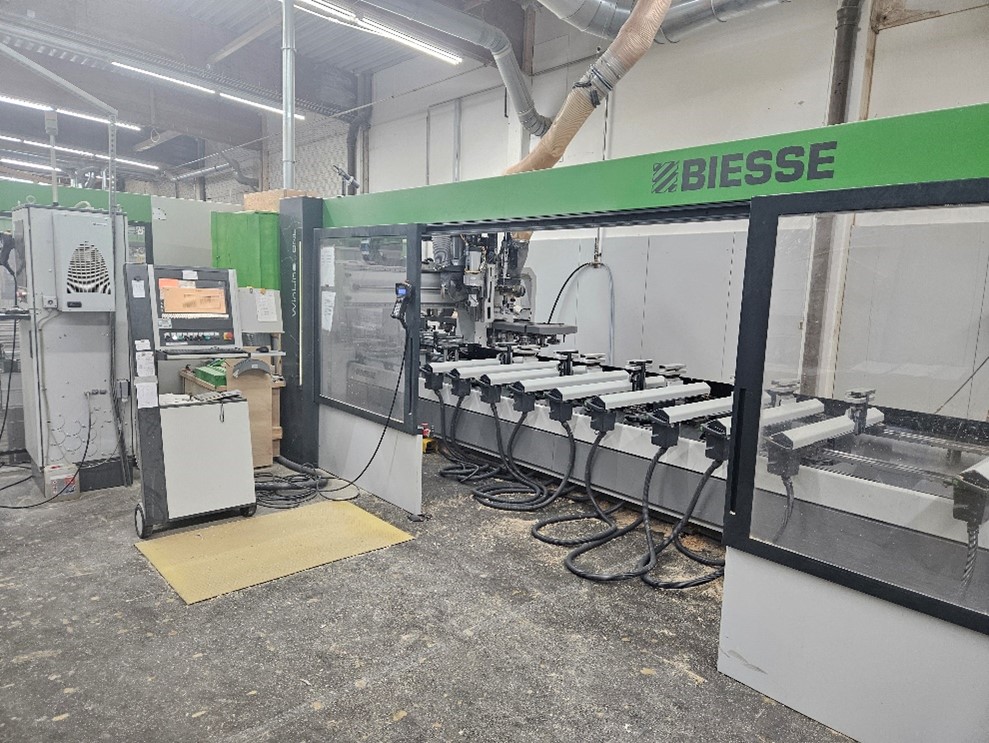

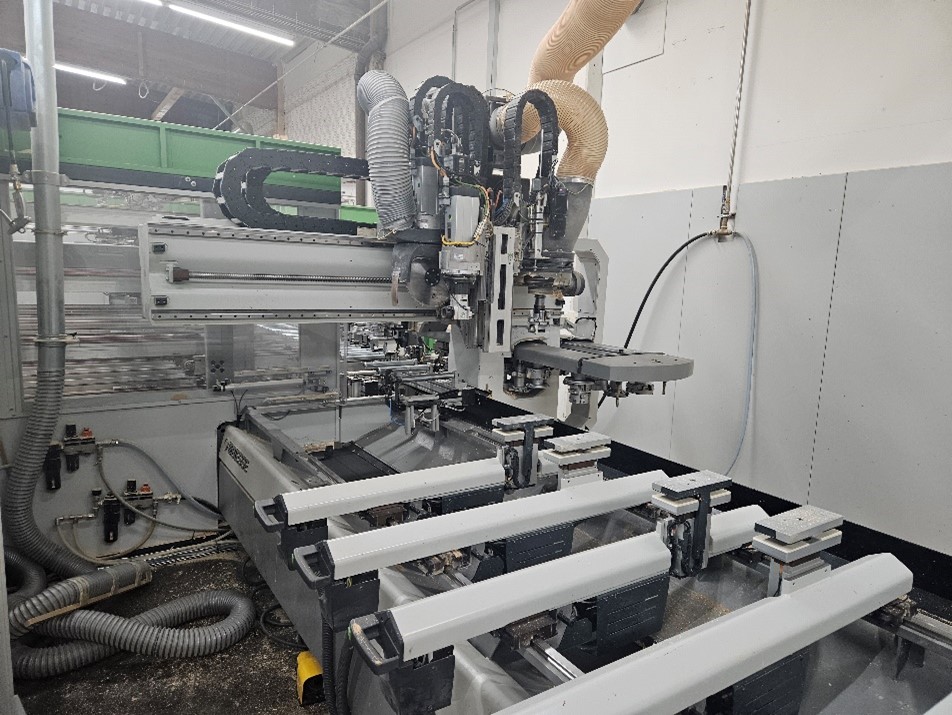

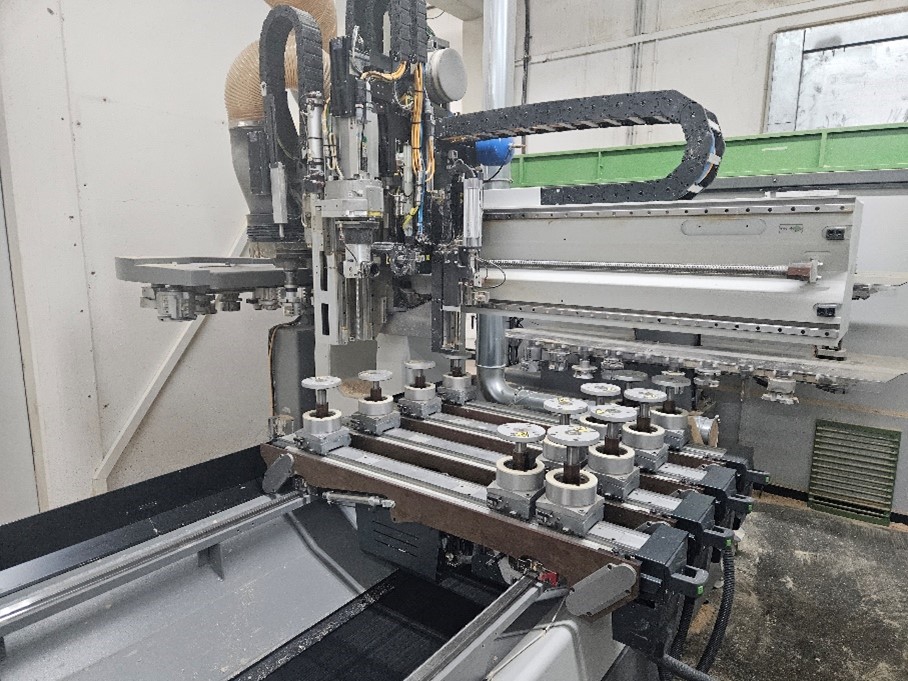

Biesse WinLine One
Year of construction: 2015
Technical data
- 2 portals
- Part length up to 6000 mm
- up to 4500 mm automatic

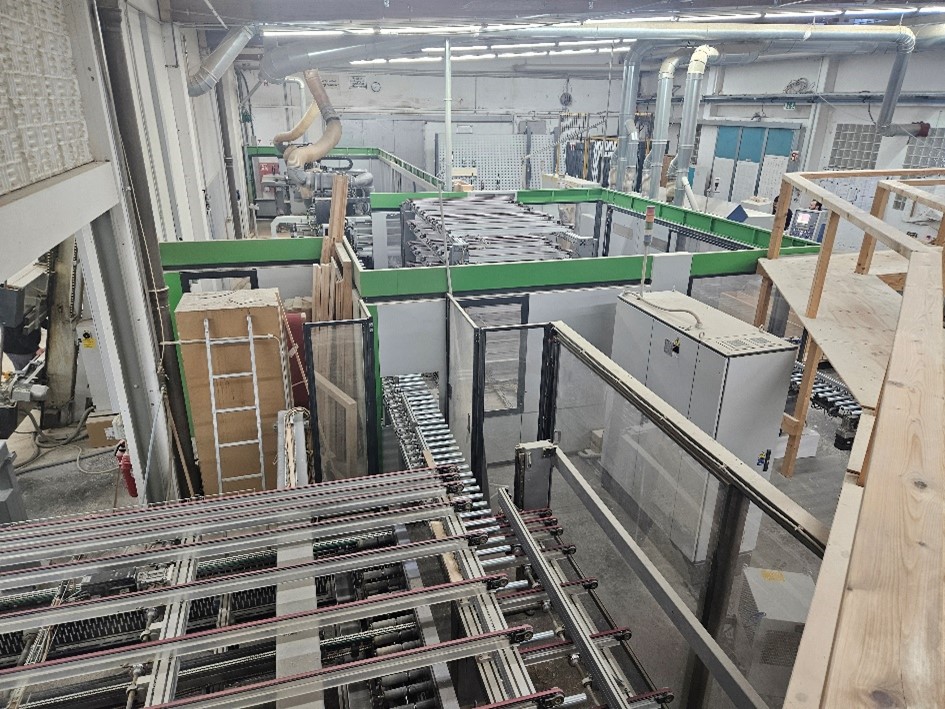

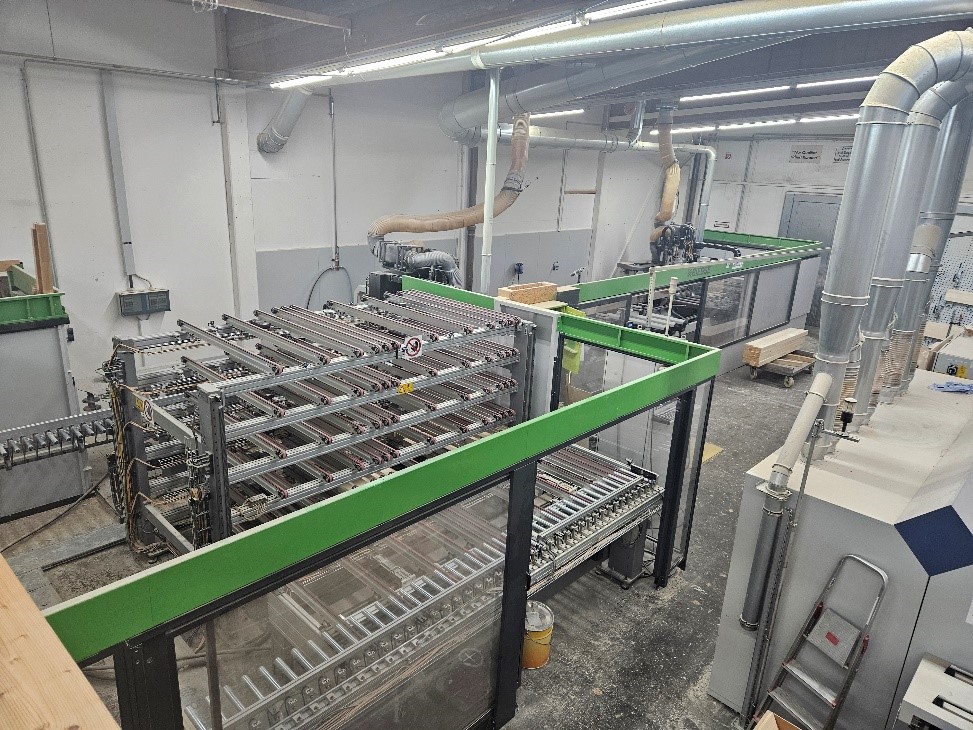

Parternoster buffer

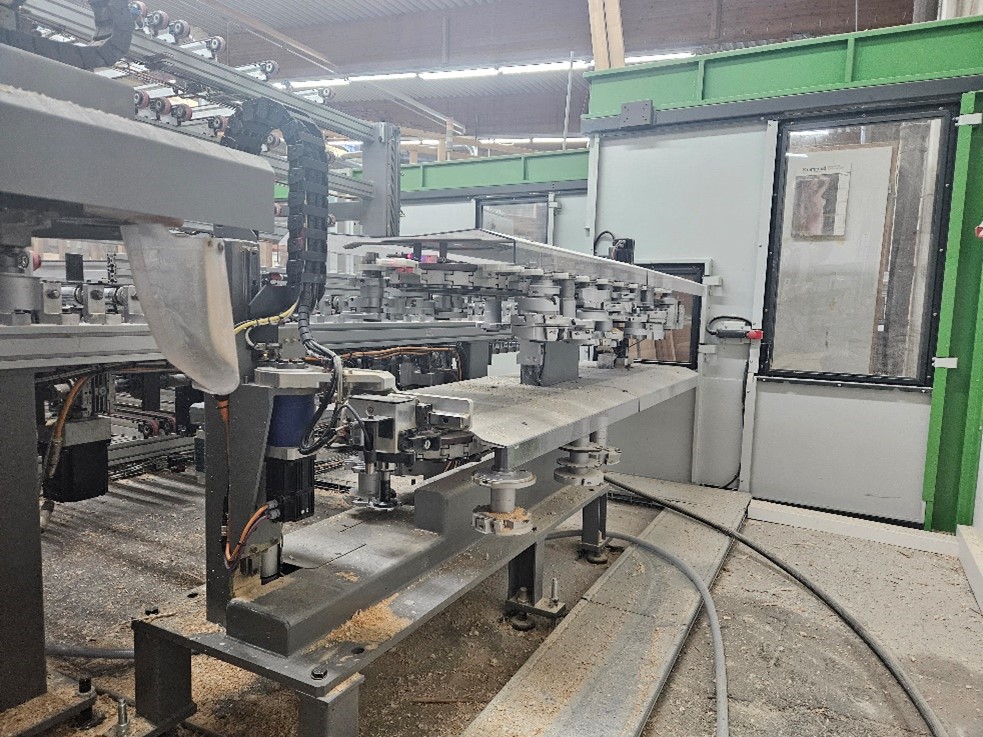

Portal 1
Technical data
- with saw
- Moving tool changer

Portal 2
Technical data
- Lock case cutter (FlexiWood)

Round arch table

Flexstoor 1

Flexstoor 2

Automatic planer with sanding machine for special components

Automatic planer
Brand: Weinig
Type: U 23 E
Year of construction: 1999
Note: Memory in the computer is defective

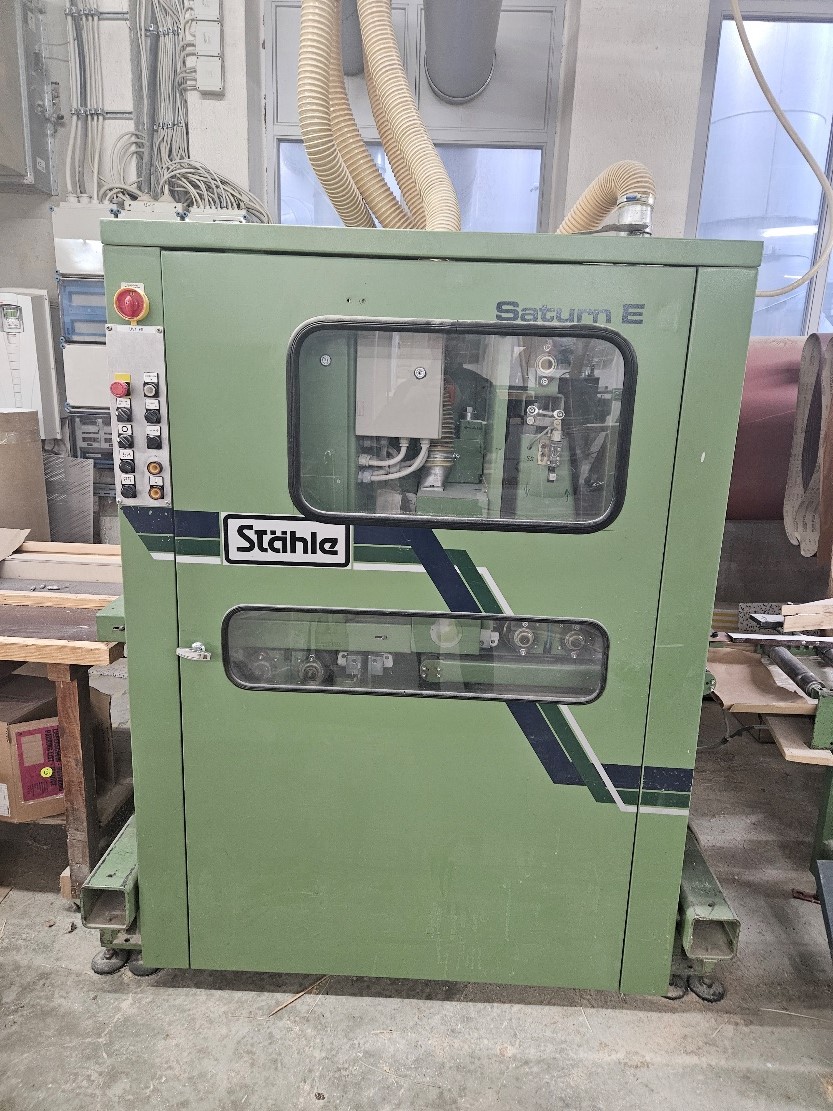

Grinding machine
Brand: Stähle
Type: Saturn
Year of construction:
Note: Grinding machine only for surfaces, but no longer guaranteed accuracy



Note:
The technical data and descriptions are transcribed from the original order confirmation. The information is for reference only and is not legally binding.
