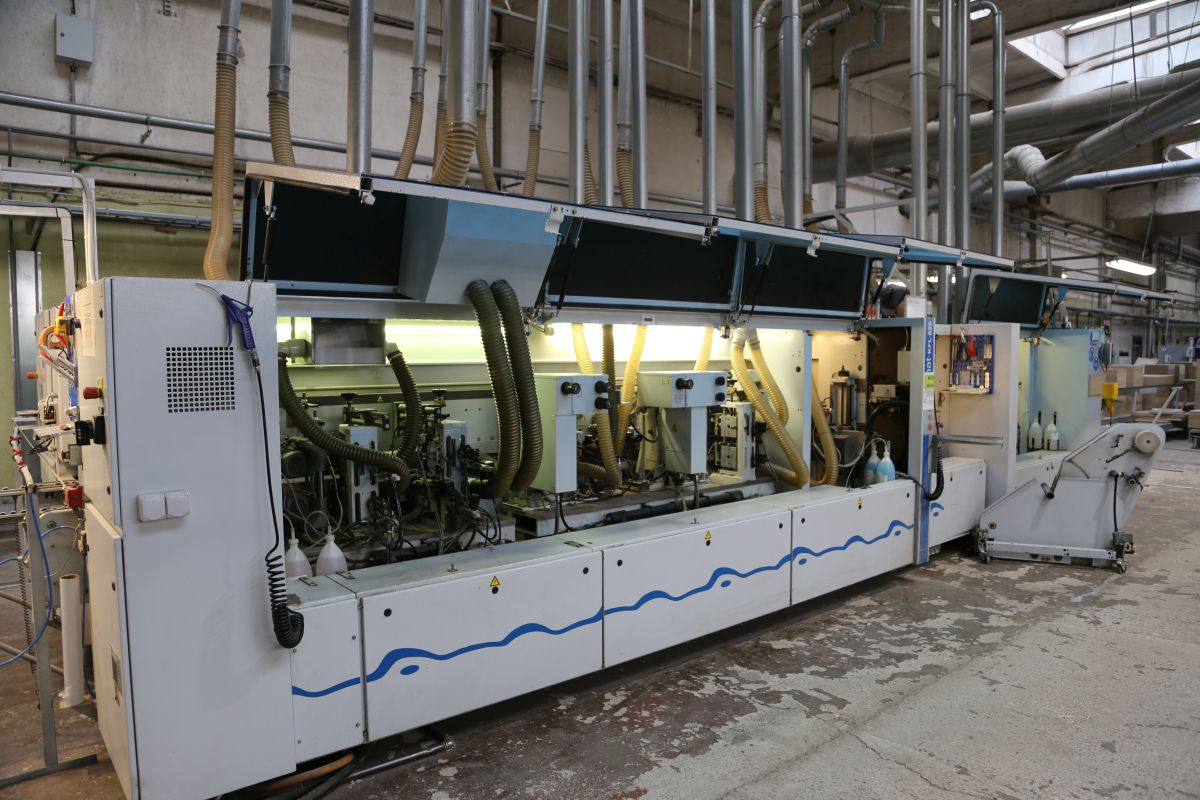

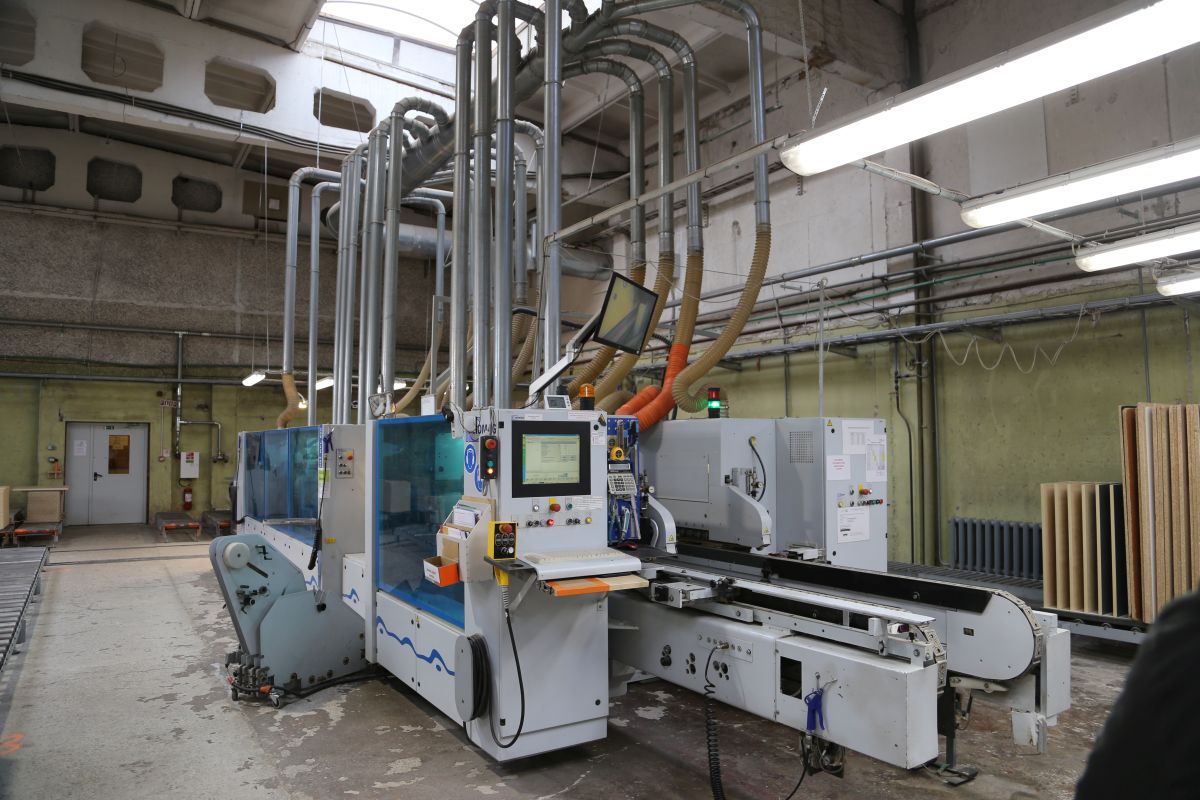

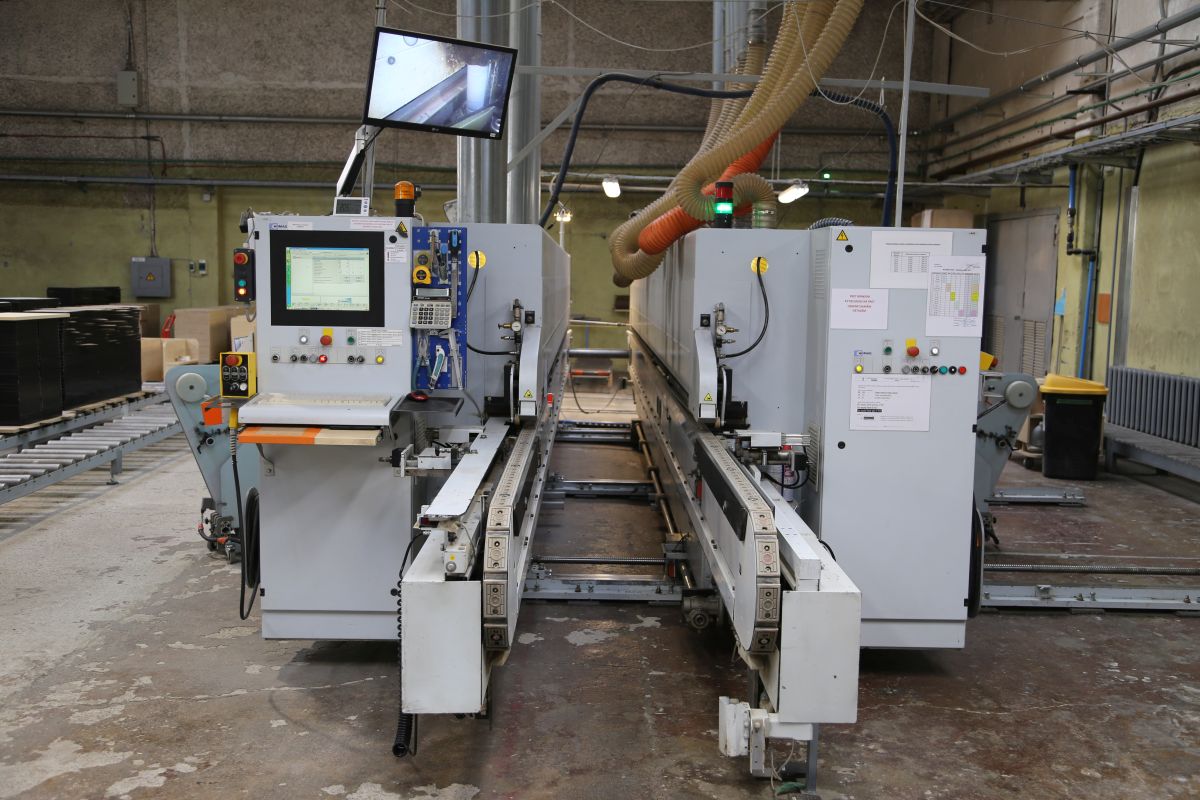

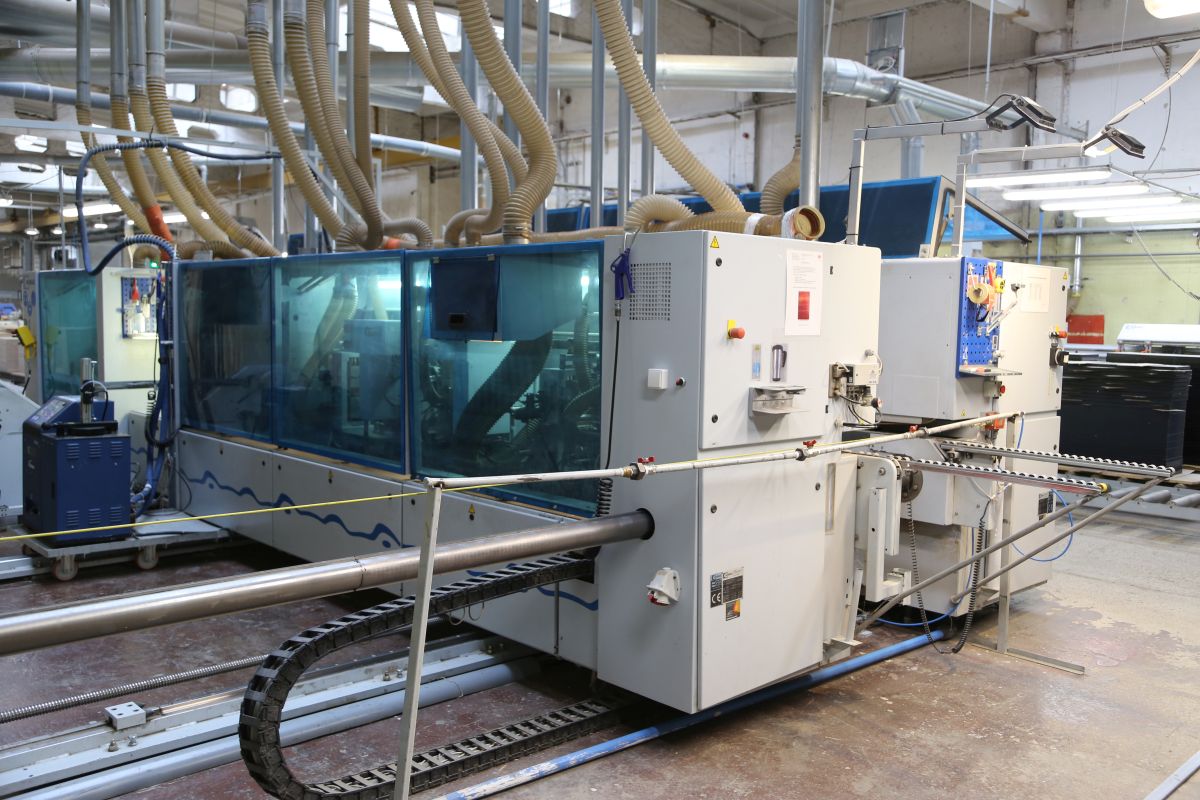

double-sided edge banding machine

double-sided edge banding machine

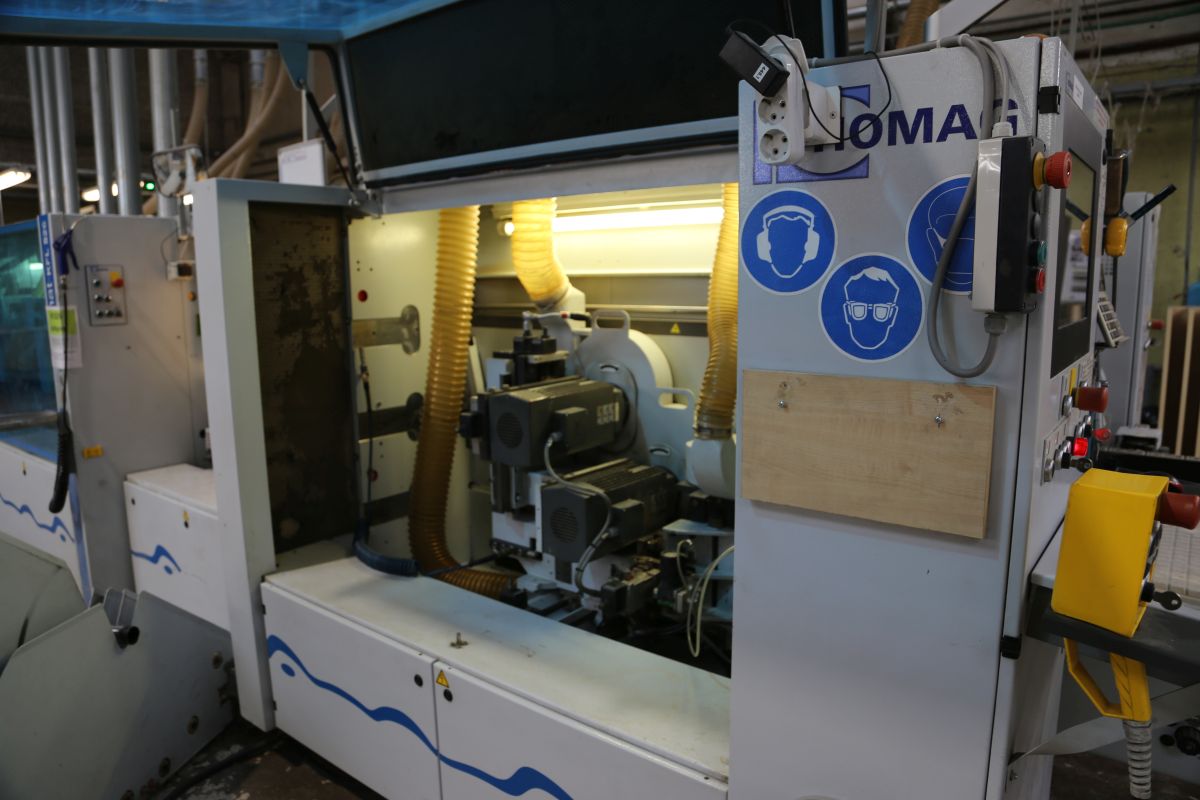

Brand: Homag

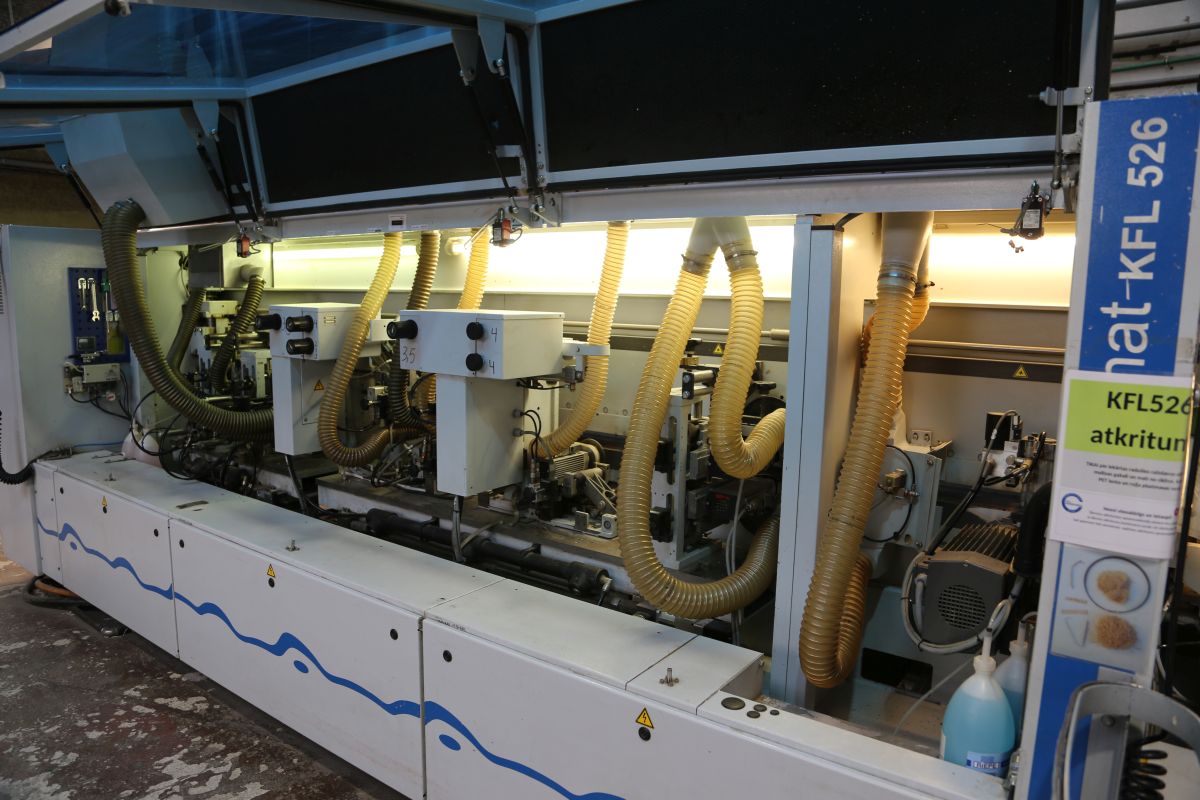

Type: Optimat KFL 526/C
Year of manufacture: 2006


technical data
Workpiece dimensions:
- workpiece thickness: 12 - 40 mm
- workpiece size (L/W): min 250 x 240 mm, max. 2500 x 1200 mm
- workpiece weight: max. 50 kg

Edge dimensions:
- edge thickness roller material: 0,4 - 3 mm
- edge cross section plastic edges: max. 135 mm²
- edge cross section veneer: max. 100 mm²
- roller diameter: max. 830 mm

Performance data:
- feed longitudinal processing
up to max. 35 m/min for thin edge up to 0,6 mm
up to max. 30 m/min for thick edge up to 3 mm
- feed in case of cross processing
up to max. 30 m/min for panel sizing
up to max. 20 m/min for edge processing
- workpiece gap: min. 500 mm

Infeed Individual machine one level manual
- workpiece infeed longitudinal: on the infeed fence
- workpiece infeed crosswise: before the cam

Intermediate transport at the outfeed
- 400 mm long

Seperating agent spray device on top/bottom

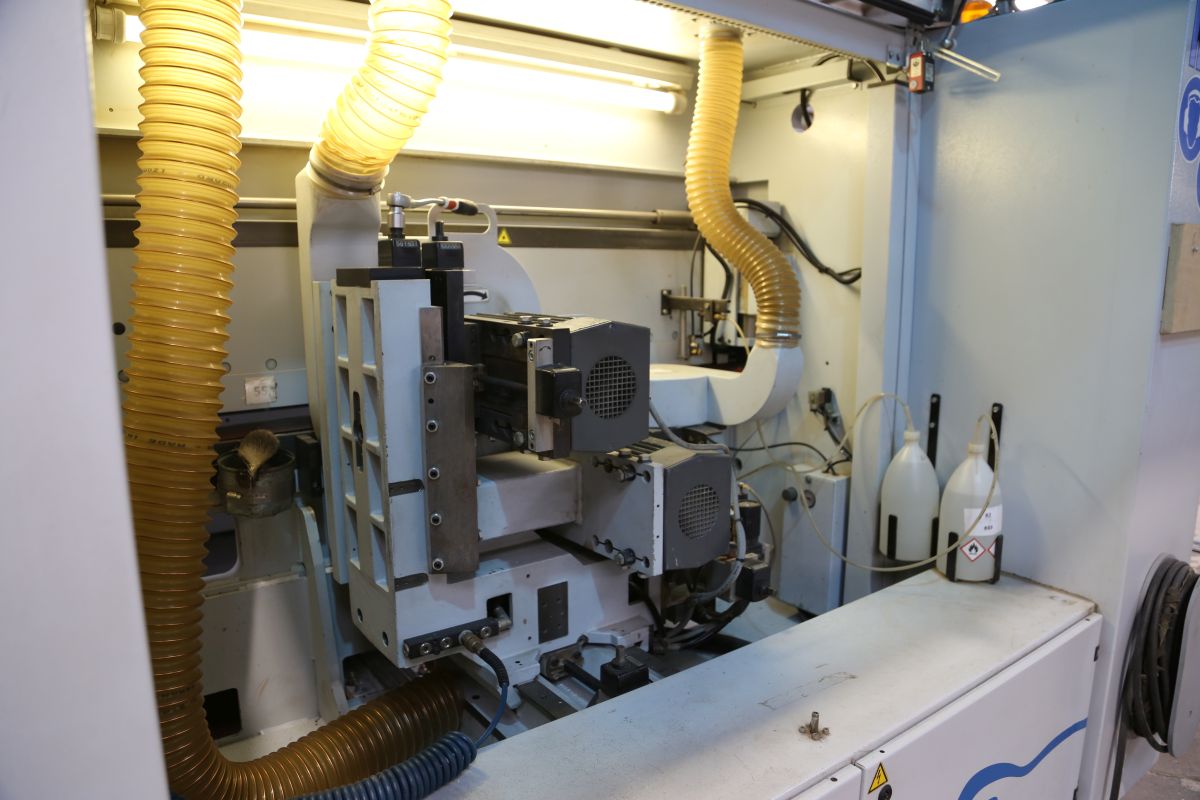

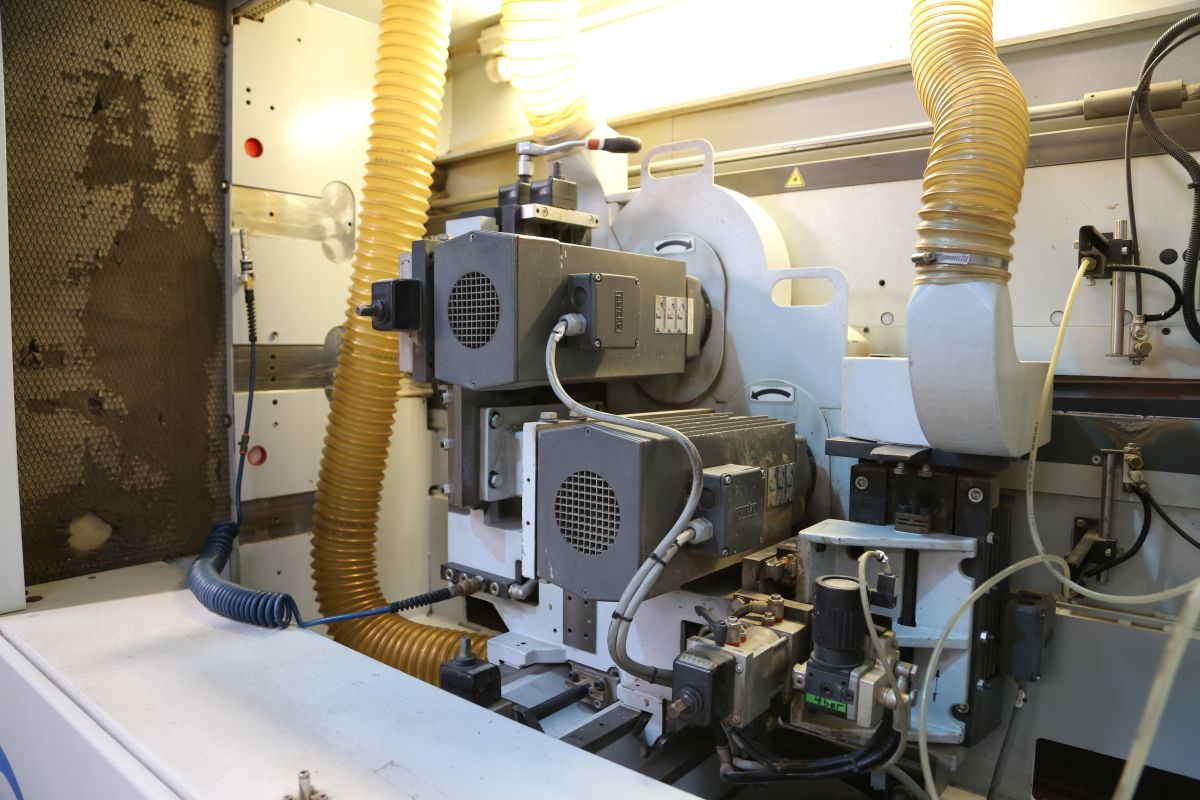

Double Hogger Longitud/Cross 6,6 kW KD11
- 1 motor 4,6 kW, 100 Hz, 6000 rpm with electropneumatic control
- suction hood I-system for tool diameter 180 - 200 mm
- 2 motors each 6,6 kW, 100 Hz, 6000 rpm
- incl. suction hood I-system for tool diameter 220 - 250 mm

Gluing Unit A3 - 2 rolls

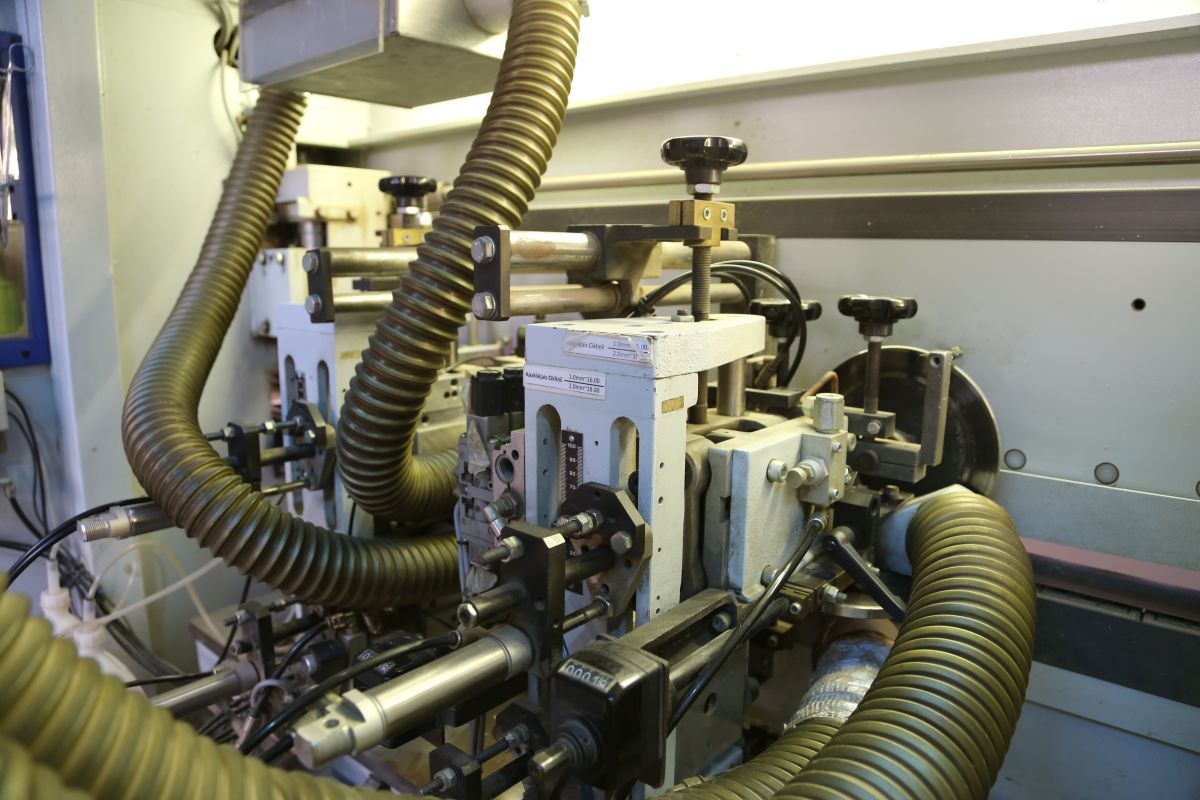

Profile trimming unit FF12 on top/bottom
- 4 motors each 0,4 kW, 200 Hz, 12000 rpm

Scraping unit profile PN20

Finish Unit FA11 on top/bottom KFL/C

Stepless stop cams
- cam projection max. 25 mm
- Nockenabstand 500 mm

Standart trimming unit SF20 6,6 kW Finishing

Rough trimming unit 0,55 kW


Optional at extra cost:

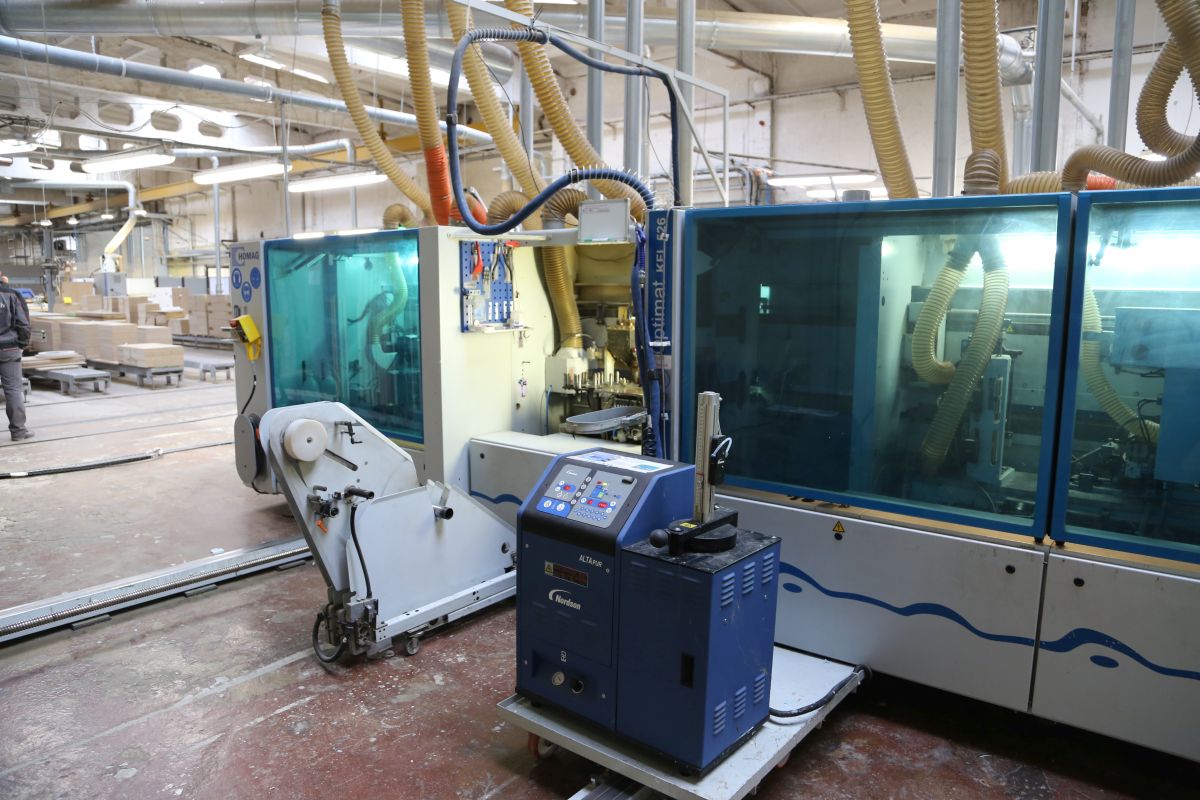

- PUR Nordson melting station
- Tool set
- Suction tube



Note:
The technical data and descriptions are transcribed from the original order confirmation. The information is for reference only and is not legally binding.
