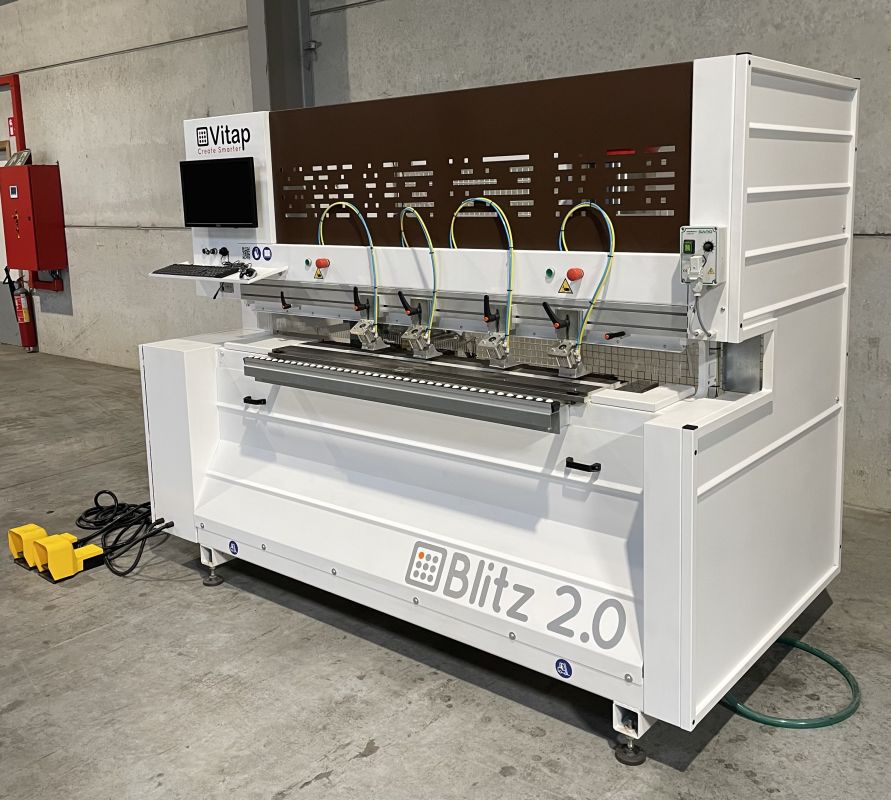

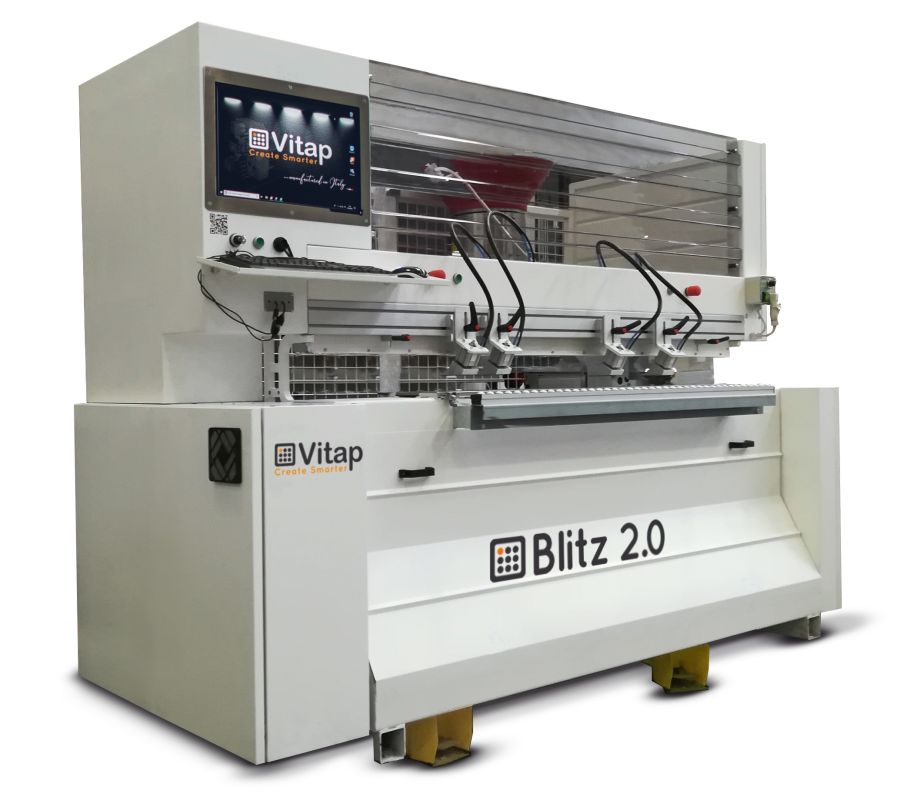

CNC drilling- and dowel inserting machine

CNC drilling- and dowel inserting machine
Brand: Vitap
Type: Blitz 2.0
Year of manufacture: 2023


Technical data
Highly efficient and reliable thanks to a easy software.
Ideal for "JUST IN TIME" production or mass production.

Machine standard equipment:

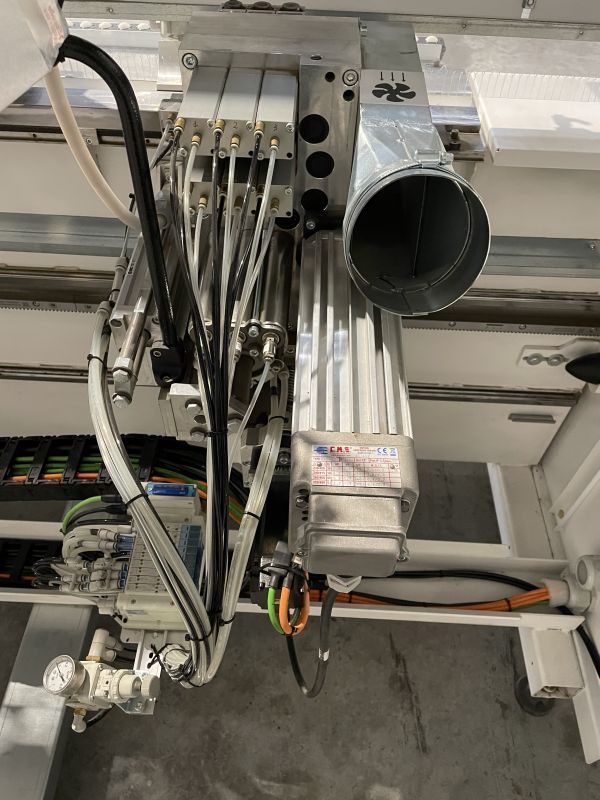

- Drilling head 3500 rpm
- 3 horizontal indipendent spindles
- 3 vertical indipendent spindles
- 1 glue and dowels inserting unit
- 1 high capacity vibrator to feed the dowels
- 1 low pressure pump for the glue

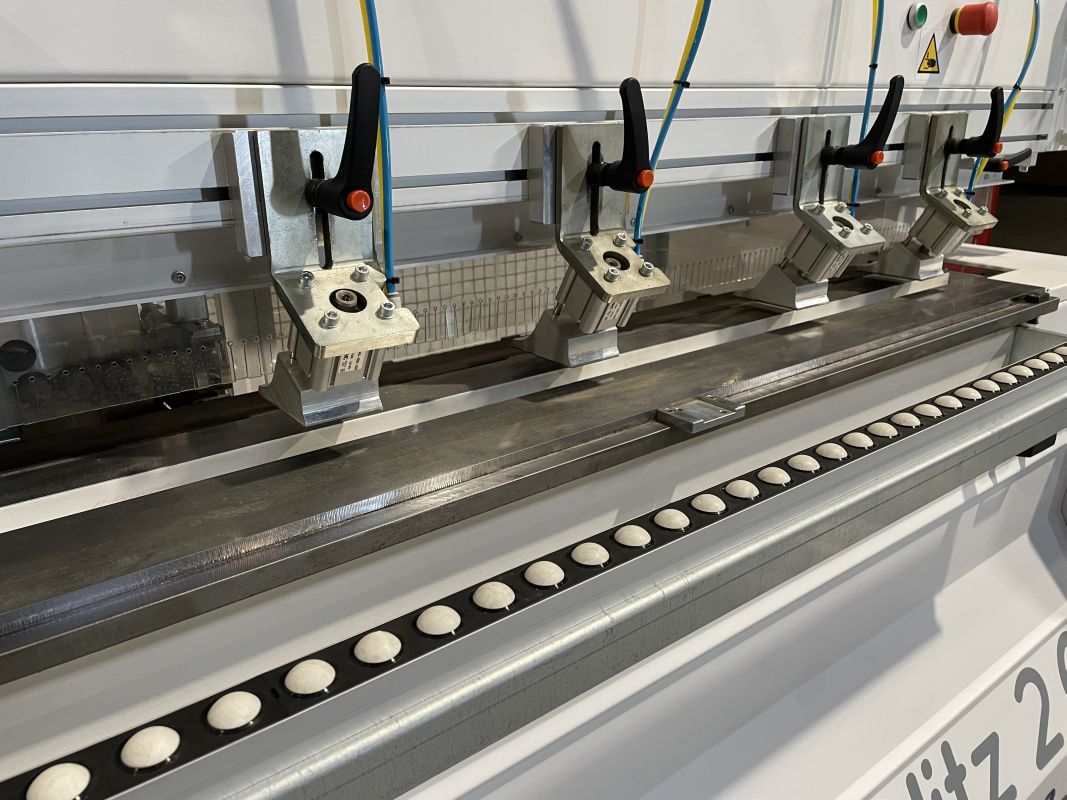

- 4 clamps

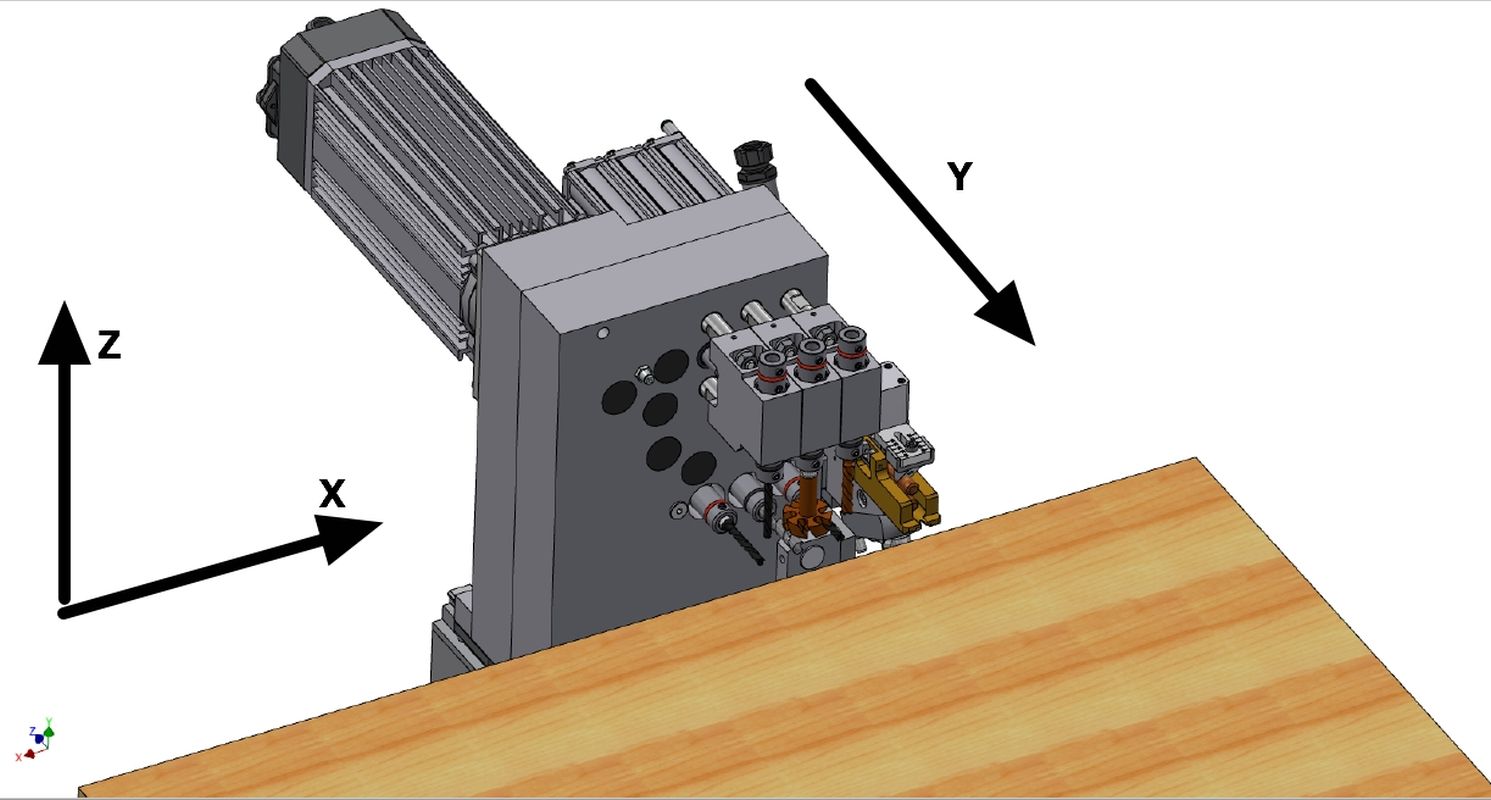

Working area:
- X= 1300 mm
- Y= 50 mm
- Z= 50mm (vertical)
- Z=25mm (horizontal)

Hardware and Software
- Monitor LCD TFT 19"
- PC windows system
- Albatros TPA software
- Usb port
- BarCode reader

- CE conform



Note:
The technical data and descriptions are copies of the order confirmation at the time. Data is for information purposes only and is not binding.
