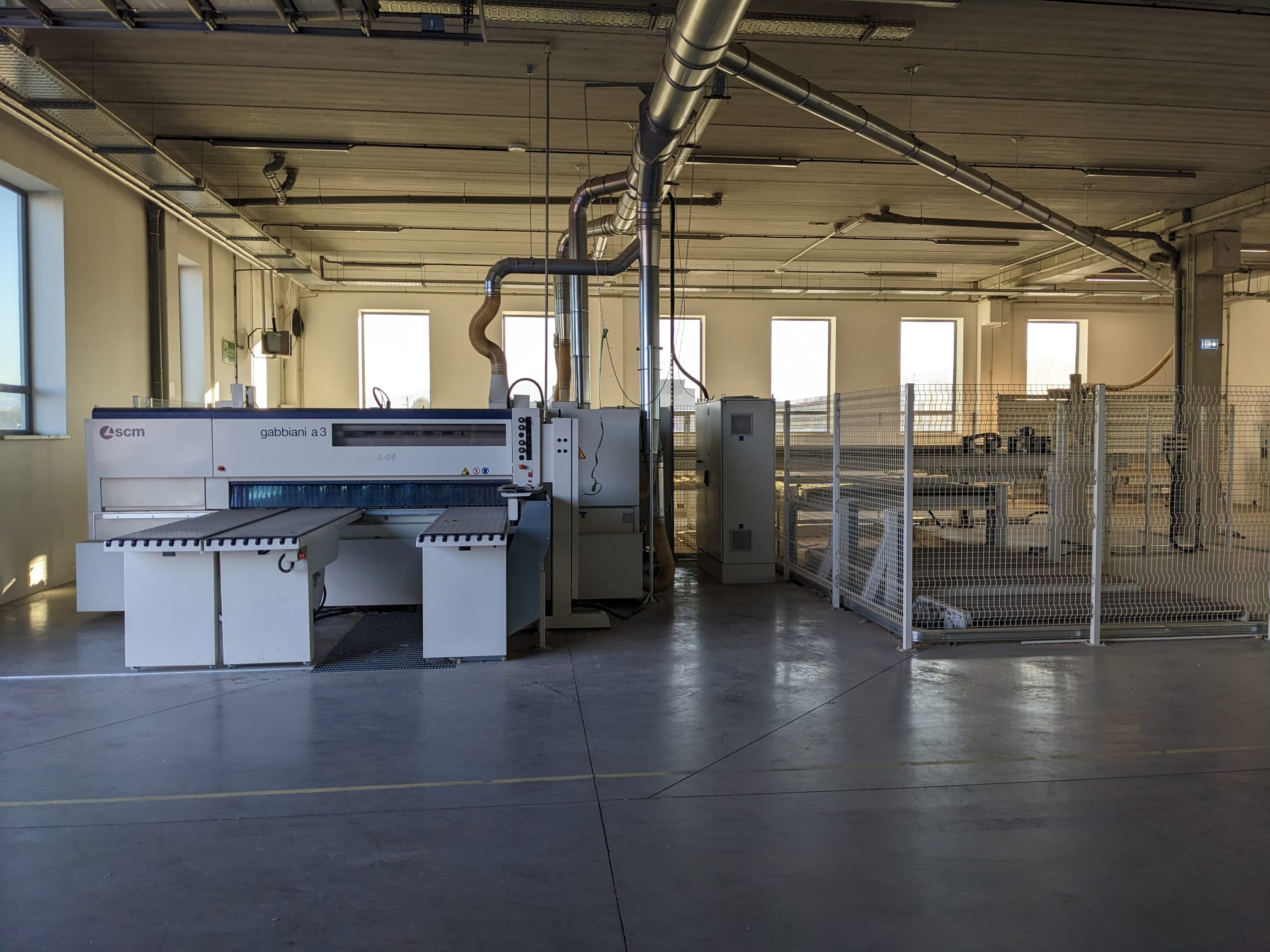

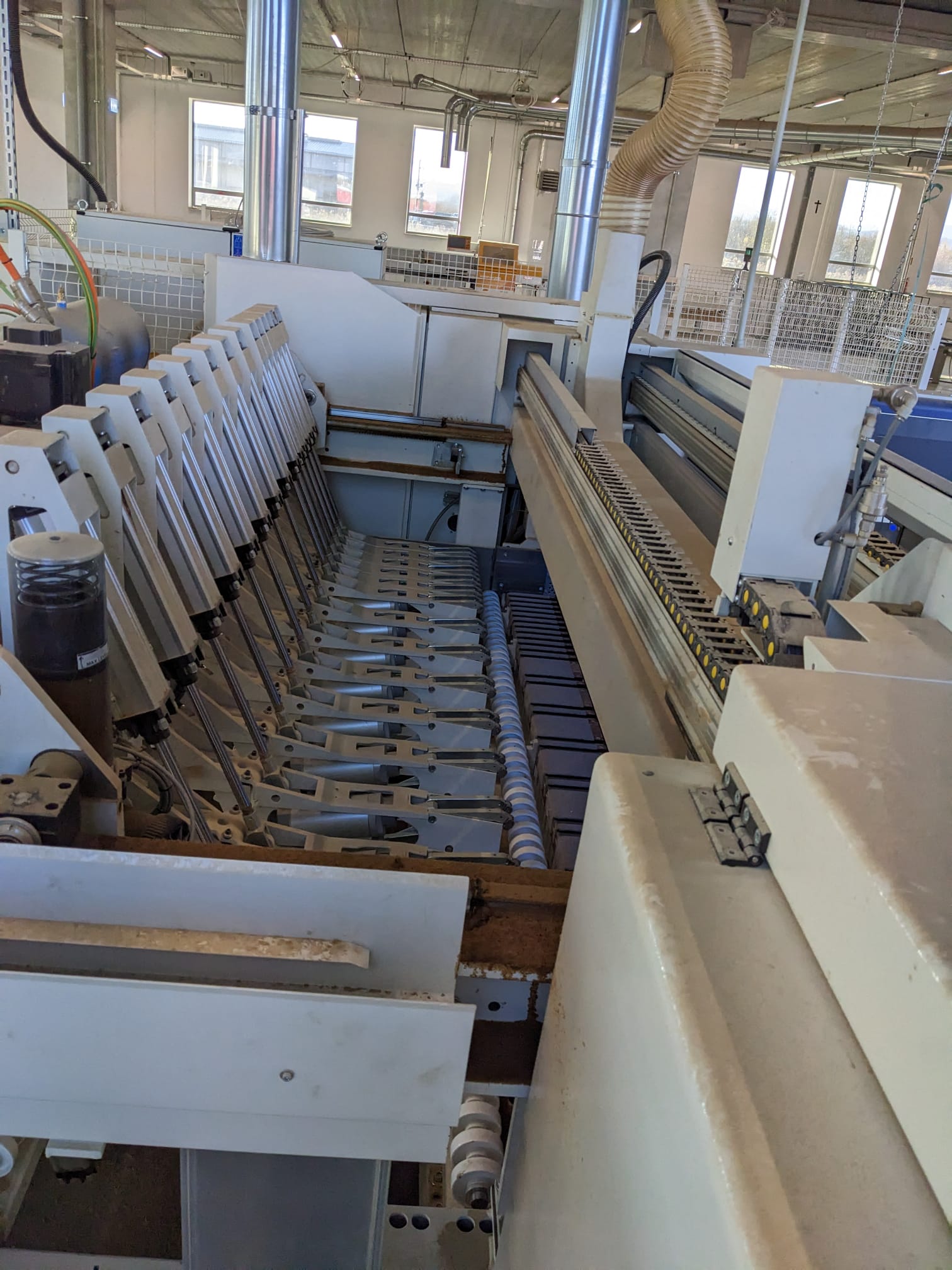

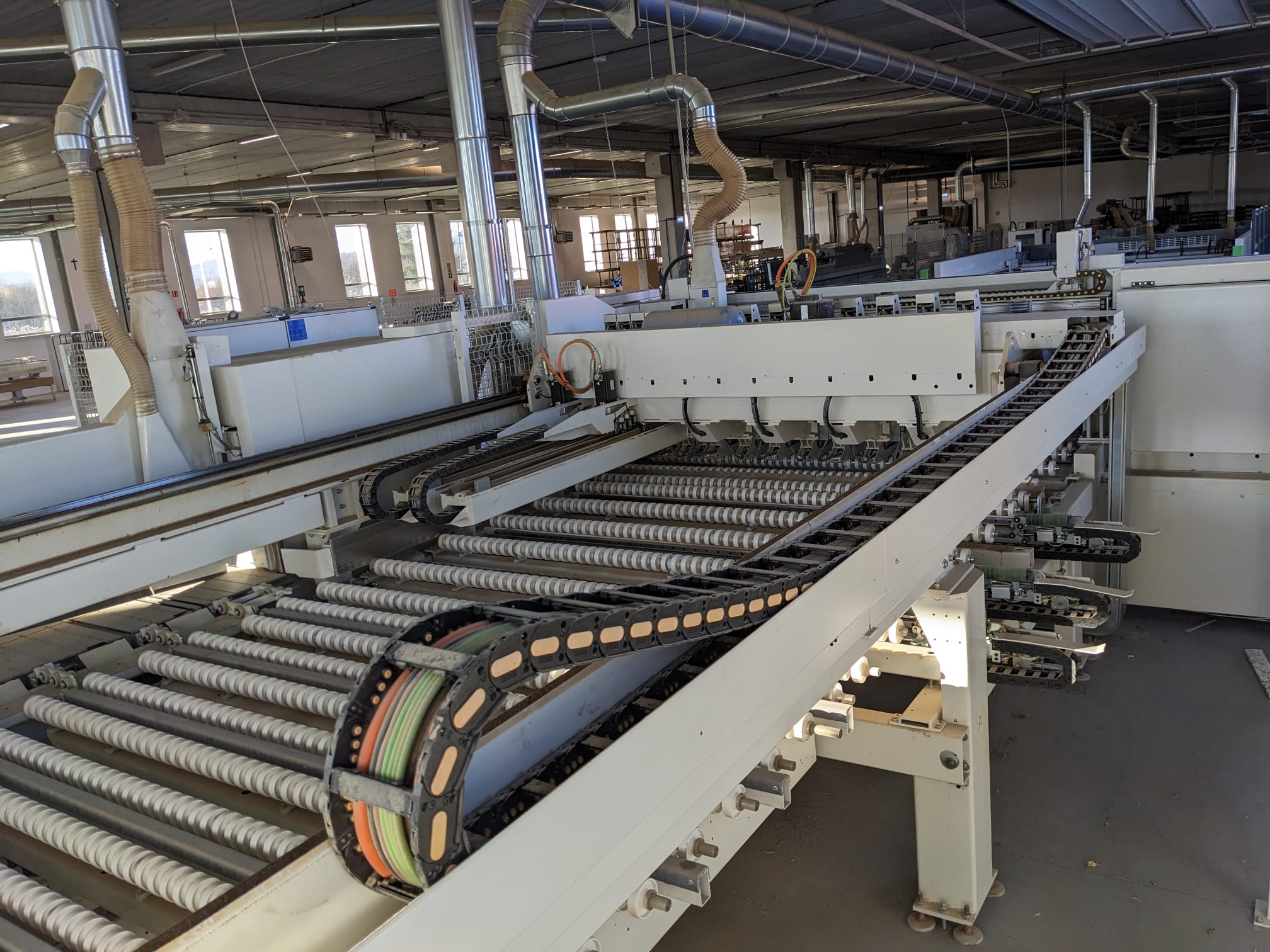

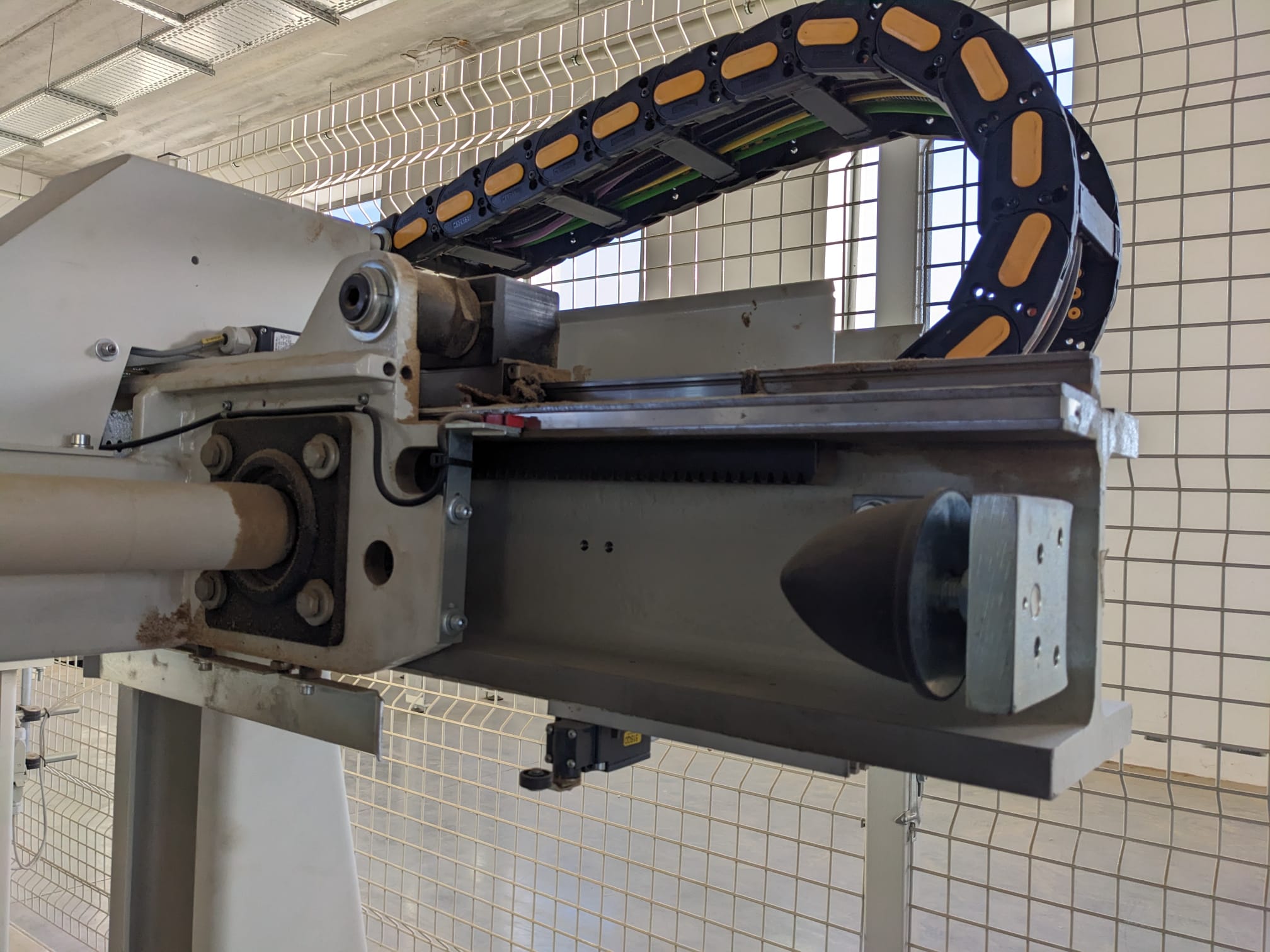

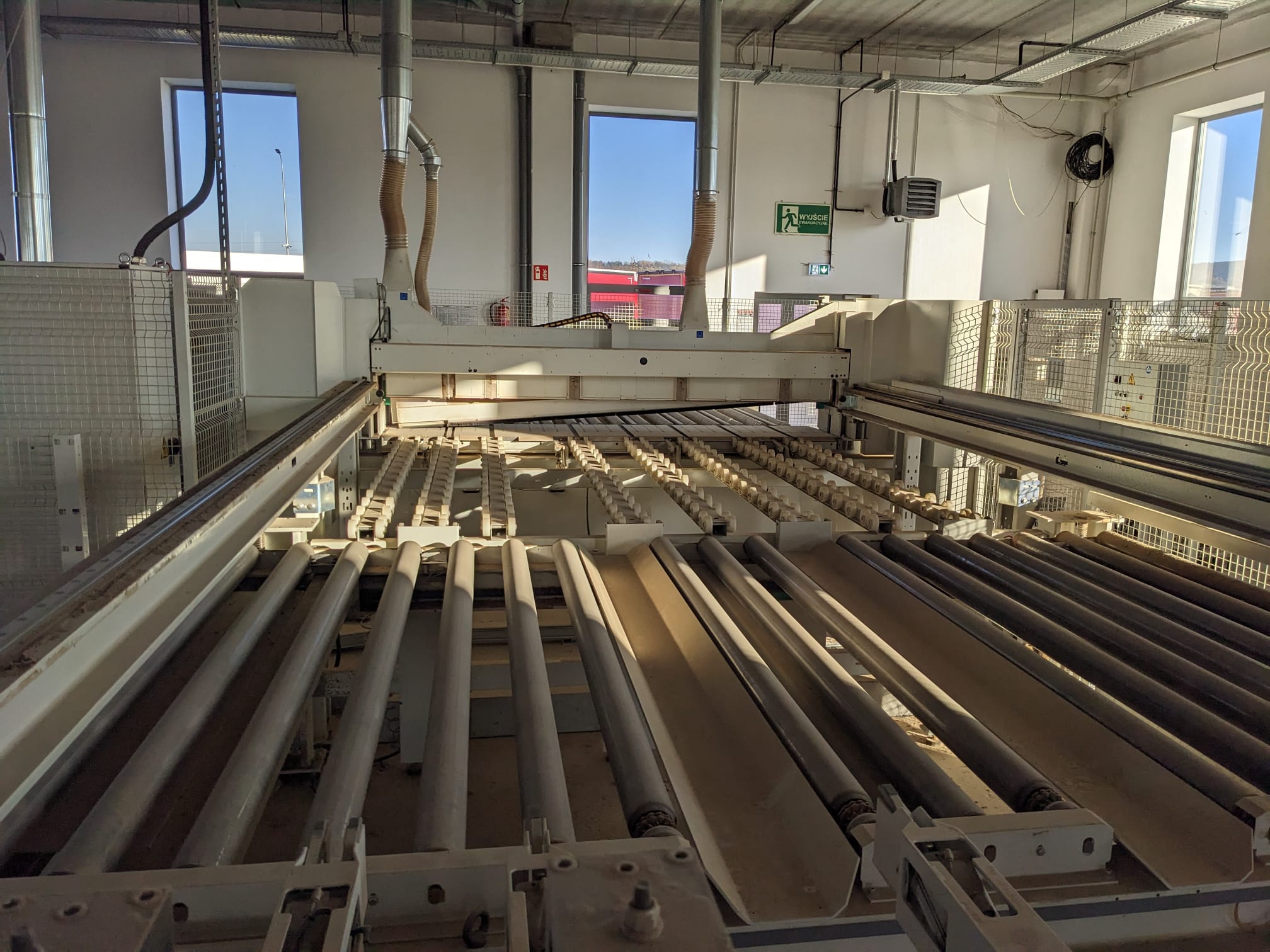

Angular Cutting Saw

Angular Cutting Saw

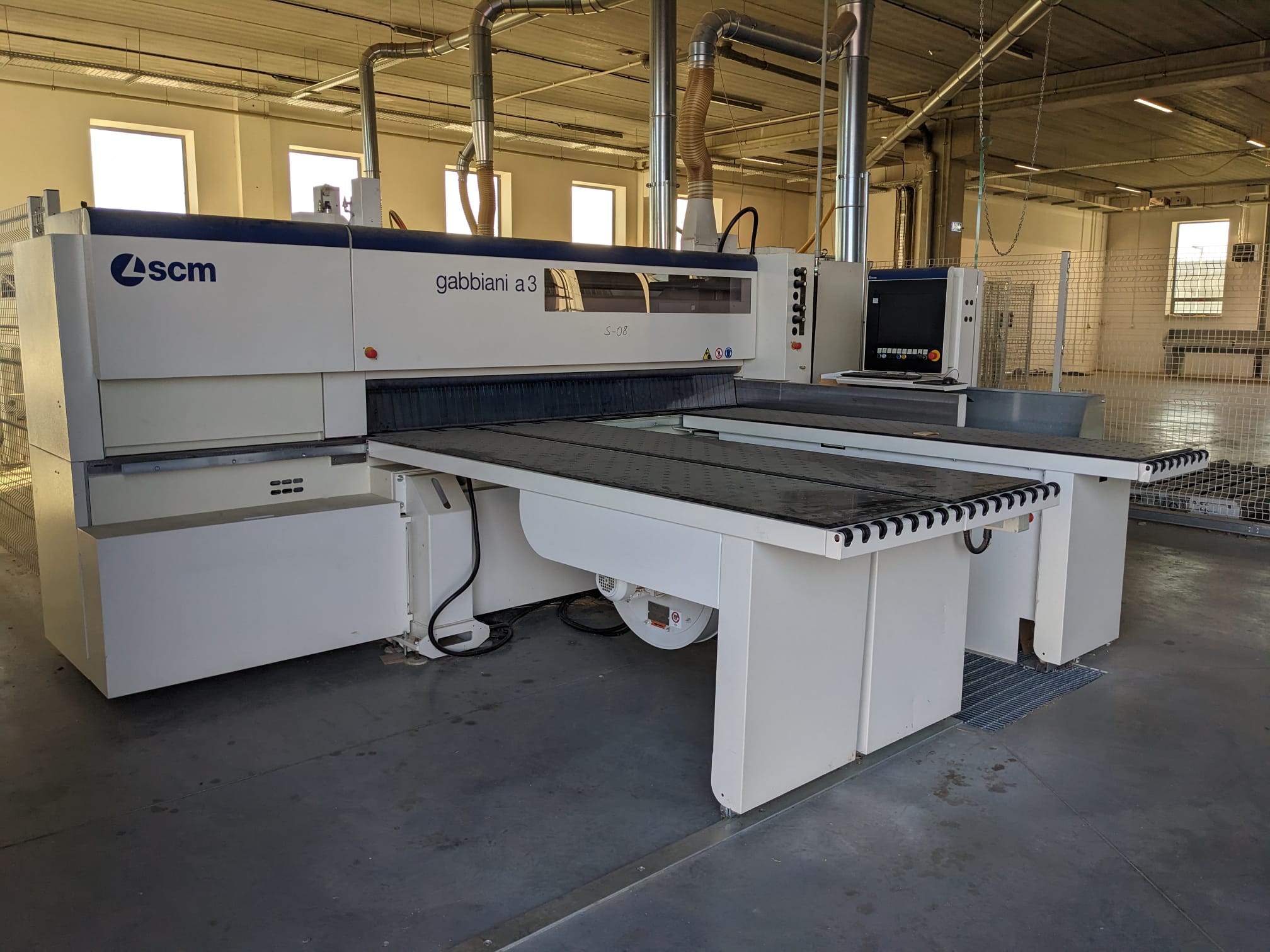

Brand: SCM
Model: Gabbiani A3 130
Year of manufacture: 2019


Automatic angular cutting saw for cutting panel packages with longitudinal and cross-cutting capability and liftable loading table

Technical data

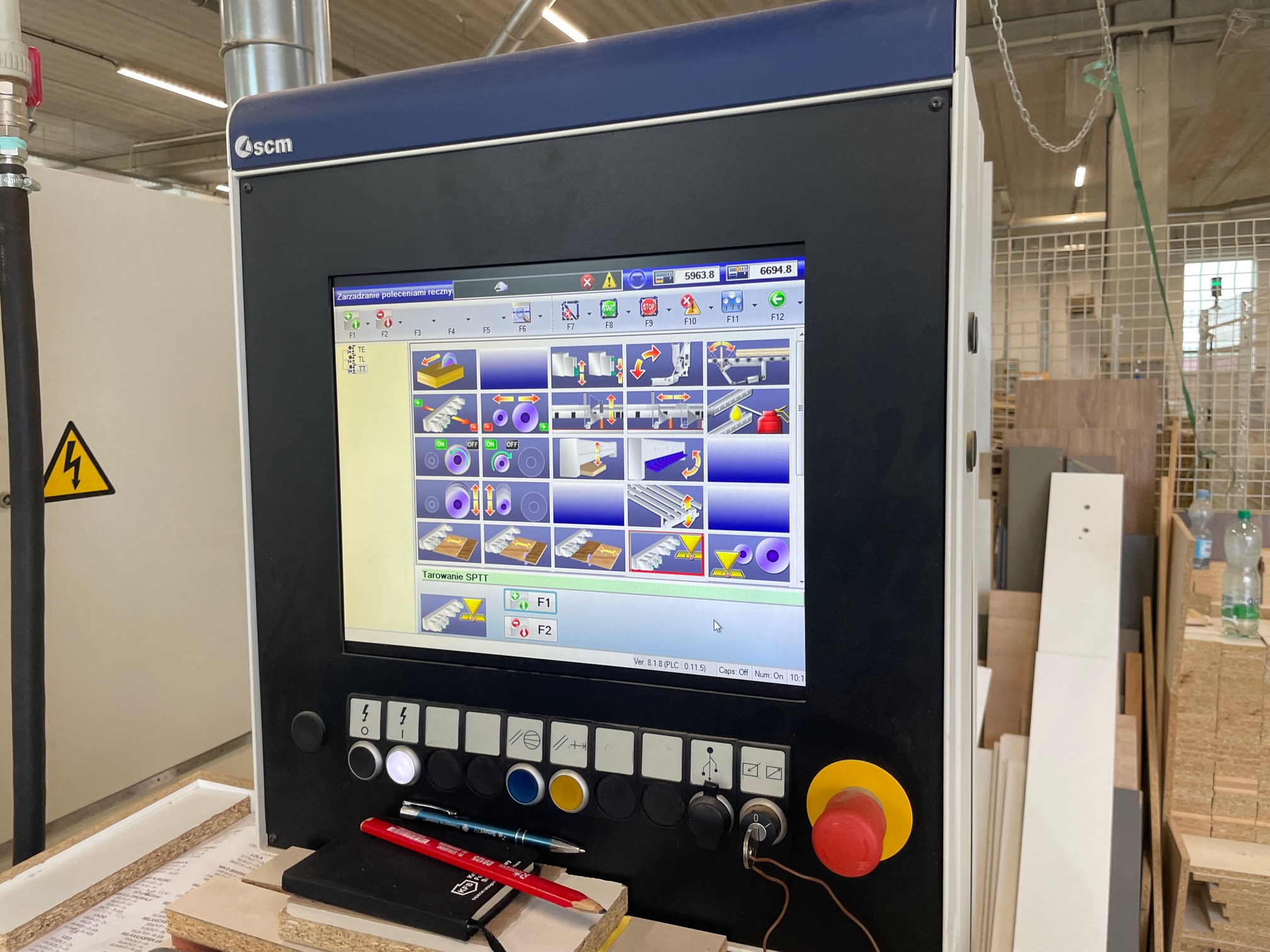

Software: “WinCut”

Label editor
- Option to create labels and print them on a barcode printer

Online diagnosis

Working height
Longitudinal cutting range: 970 mm
Cross-cutting range: 970 mm

Cutting length
Longitudinal cutting range: 3200 mm
Cross-cutting range: 2440 mm

Saw blade overhang
Longitudinal cutting range: 130 mm
Cross section: 130 mm

Saw blade diameter of main saw max. 430 mm

Main saw motor 18 kW

Main saw speed  3500 rpm

Saw blade diameter of scoring saw 200 mm

Scoring saw motor  1.5 kW

Pre-cutter speed 4300 rpm

Saw carriage speed
Longitudinal cutting range: 0 - 170 m/min
Cross cutting range: 0 - 170 m/min

Saw carriage return speed
Longitudinal cutting range: 170 m/min
Cross cutting range: 170 m/min

Speed of the sliding bar
Longitudinal cutting range: 0 -75 m/min
Cross-section: 0 -24 m/min (CE)

Return speed of the sliding bar
Longitudinal cutting range: 75 m/min
Cross section: 75 m/min

Loading and unloading
Min./max. length of panels: 1600 / 3200 mm
Min./max. panel width: 1200 / 2440 mm
Min./max. belt width: 100 / 2200 mm
Min. panel thickness: 10 mm
Min. width of edging: 15 mm
Minimum panel dimensions: 150 x 100 mm

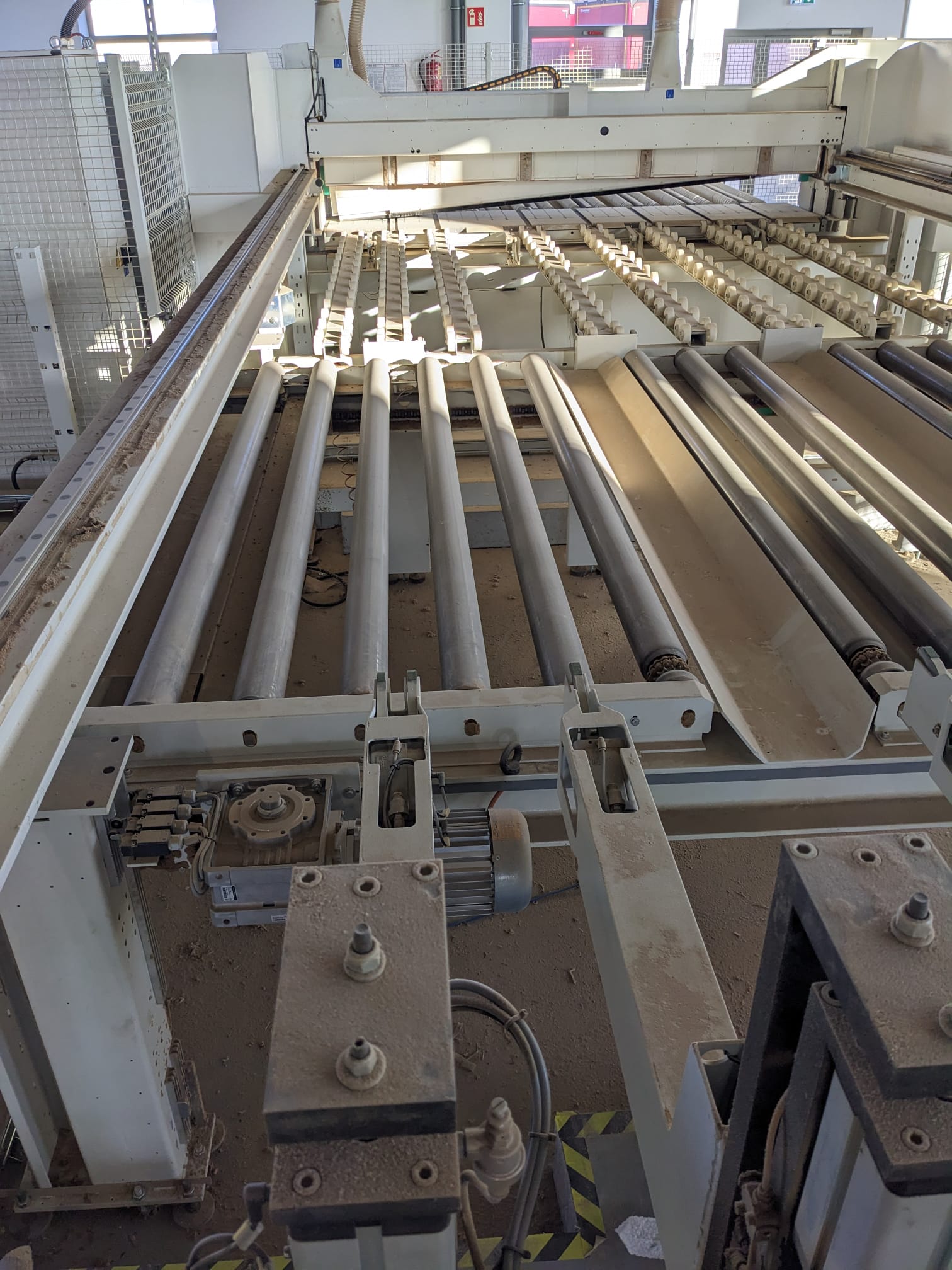

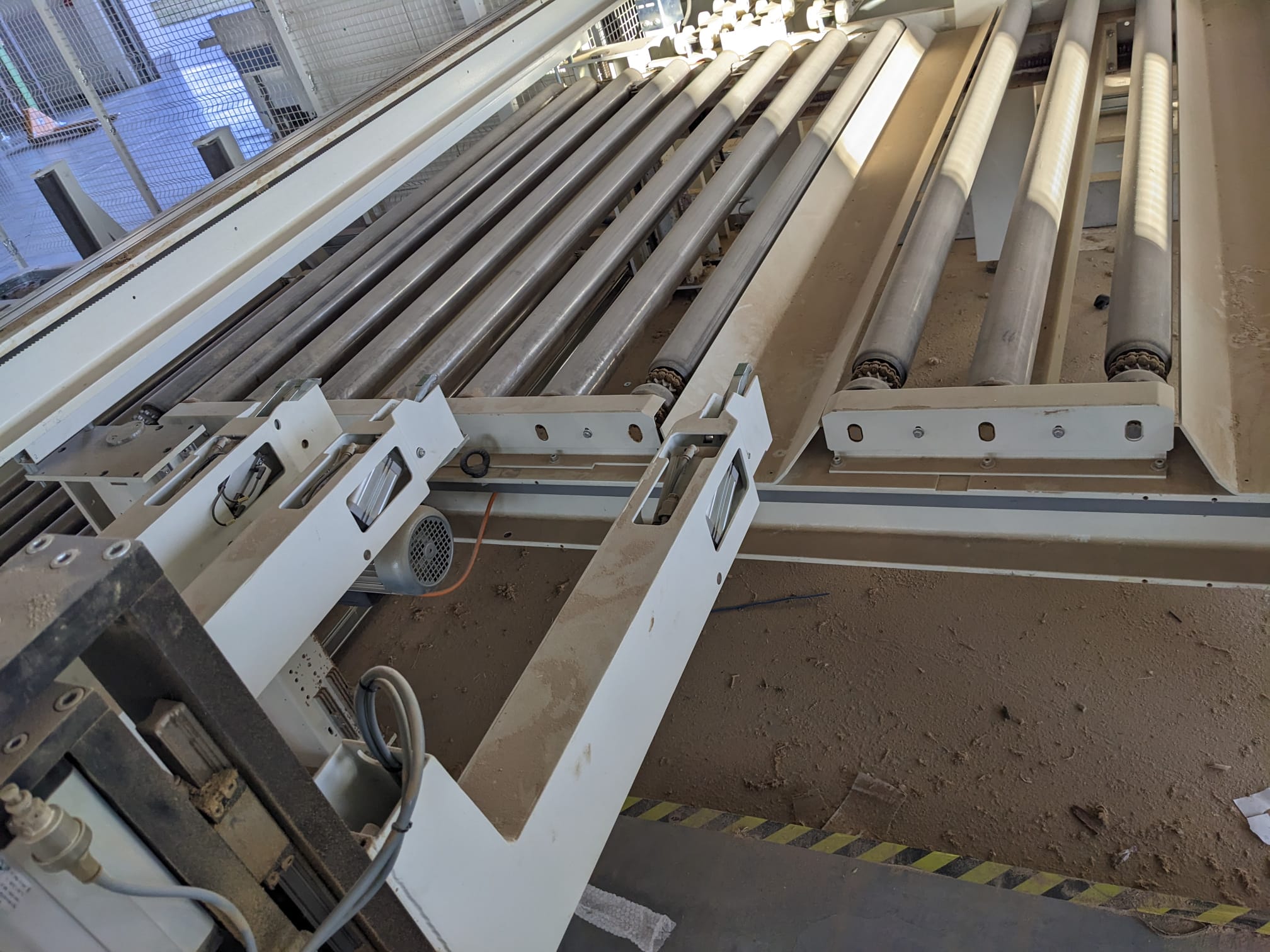

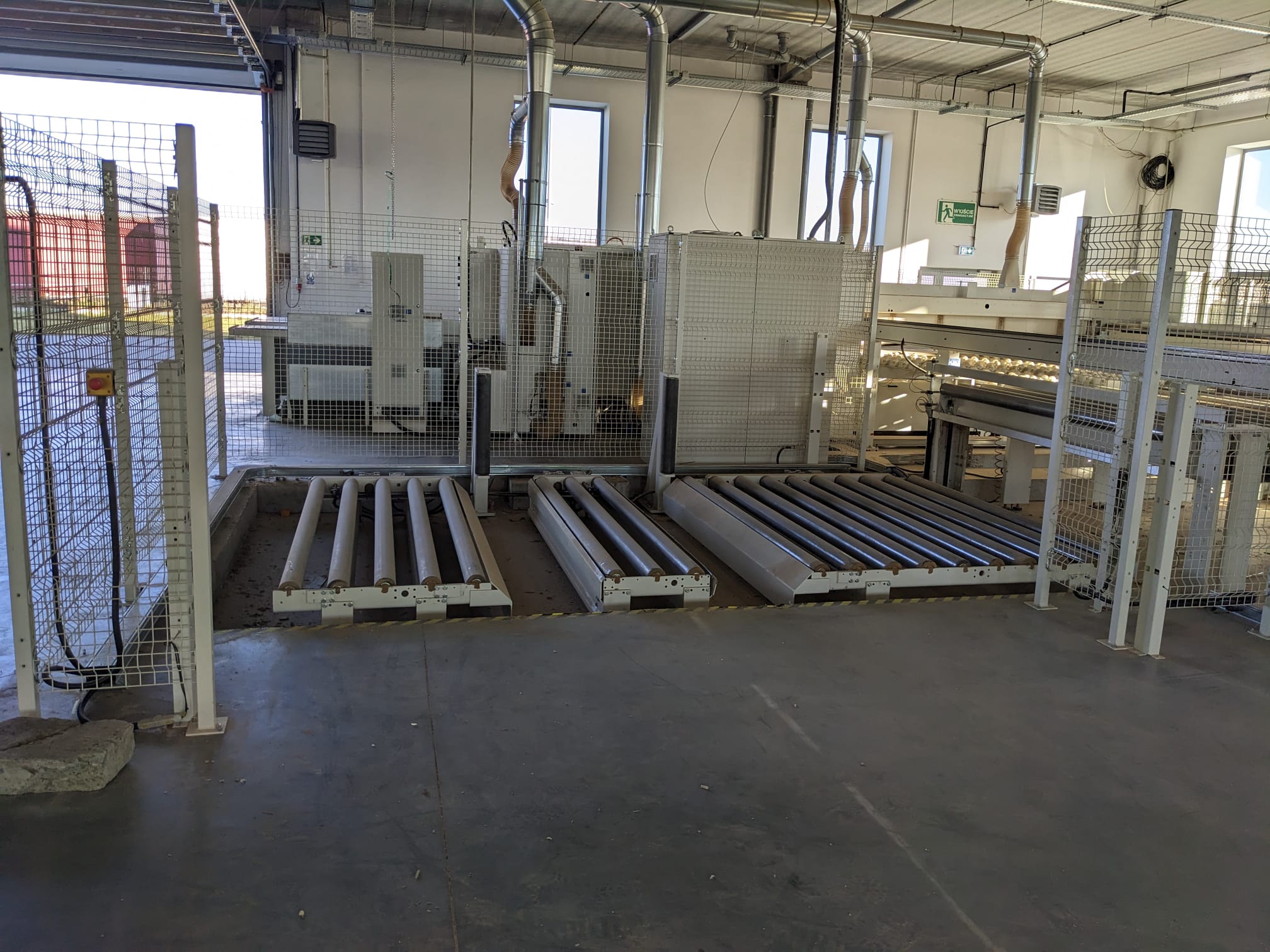

Loading table
Max. panel dimensions: 3200x2440 mm
Loading height: 600 mm
Max. loading weight: 6500 kg
Lifting/lowering speed: 0.75 m/min
Motor power: 0.75 kW

Extraction requirements
Exhaust air speed: 28 m/s
Total exhaust air volume: 11600 m3/h
Diameter of extraction nozzles: 2x 150 mm / 5 x 120 mm

Compressed air
Connection diameter: 1 / 2"
Total compressed air volume: 1200 Nl/min
Pressure: 7 bar

Electrical power
Voltage: 400 V
Frequency: 50 Hz
Installed power: 35 kW

Machine in left-hand version

Machine manufactured in accordance with CE standards

EASYFIX quick mechanical fastening of the saws instead of pneumatic fastening
Advantages:
- Quick tool change, precise and easy handling
- Extremely secure fastening (20-24 kN)
- Safe, tested system

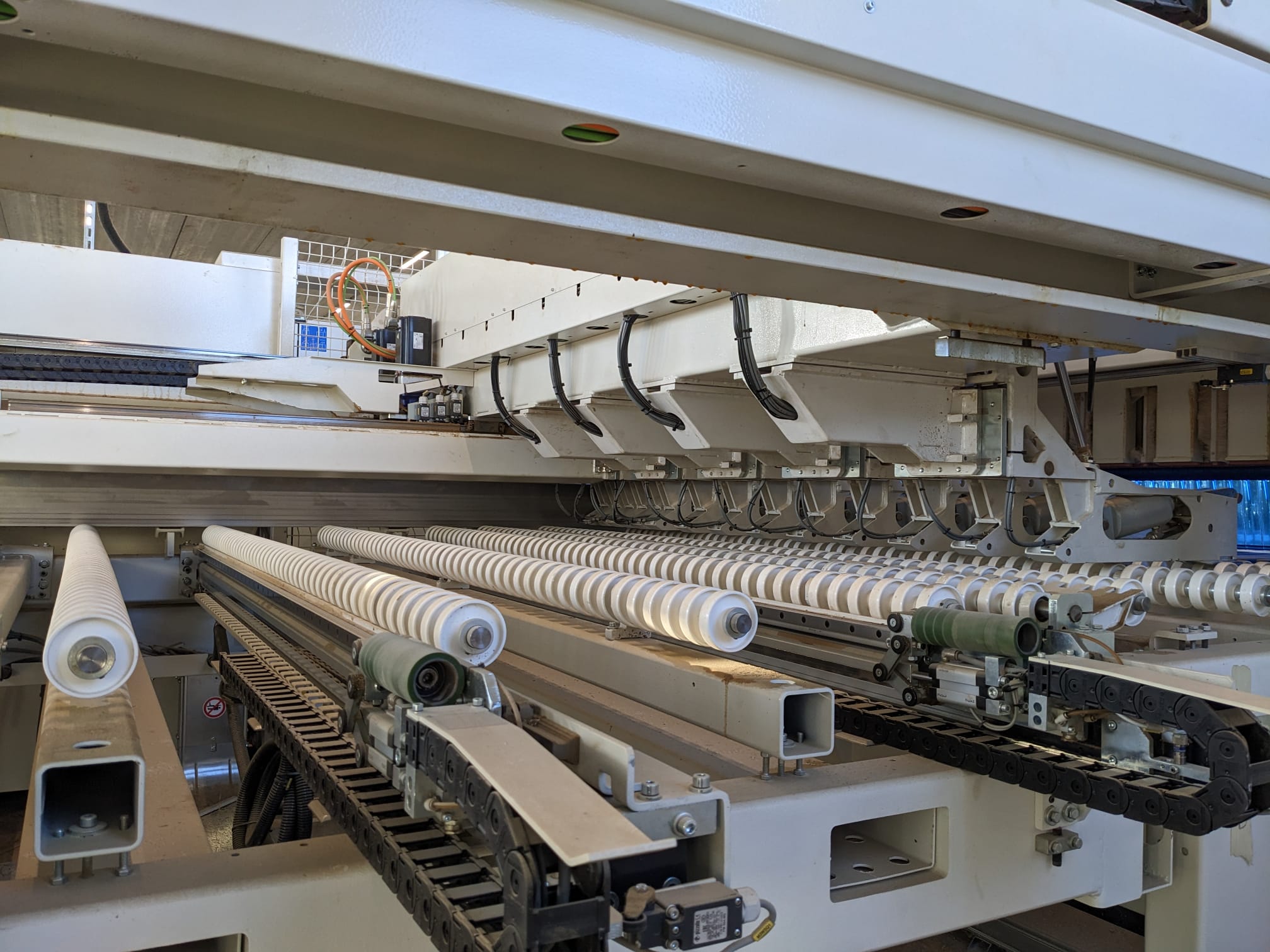

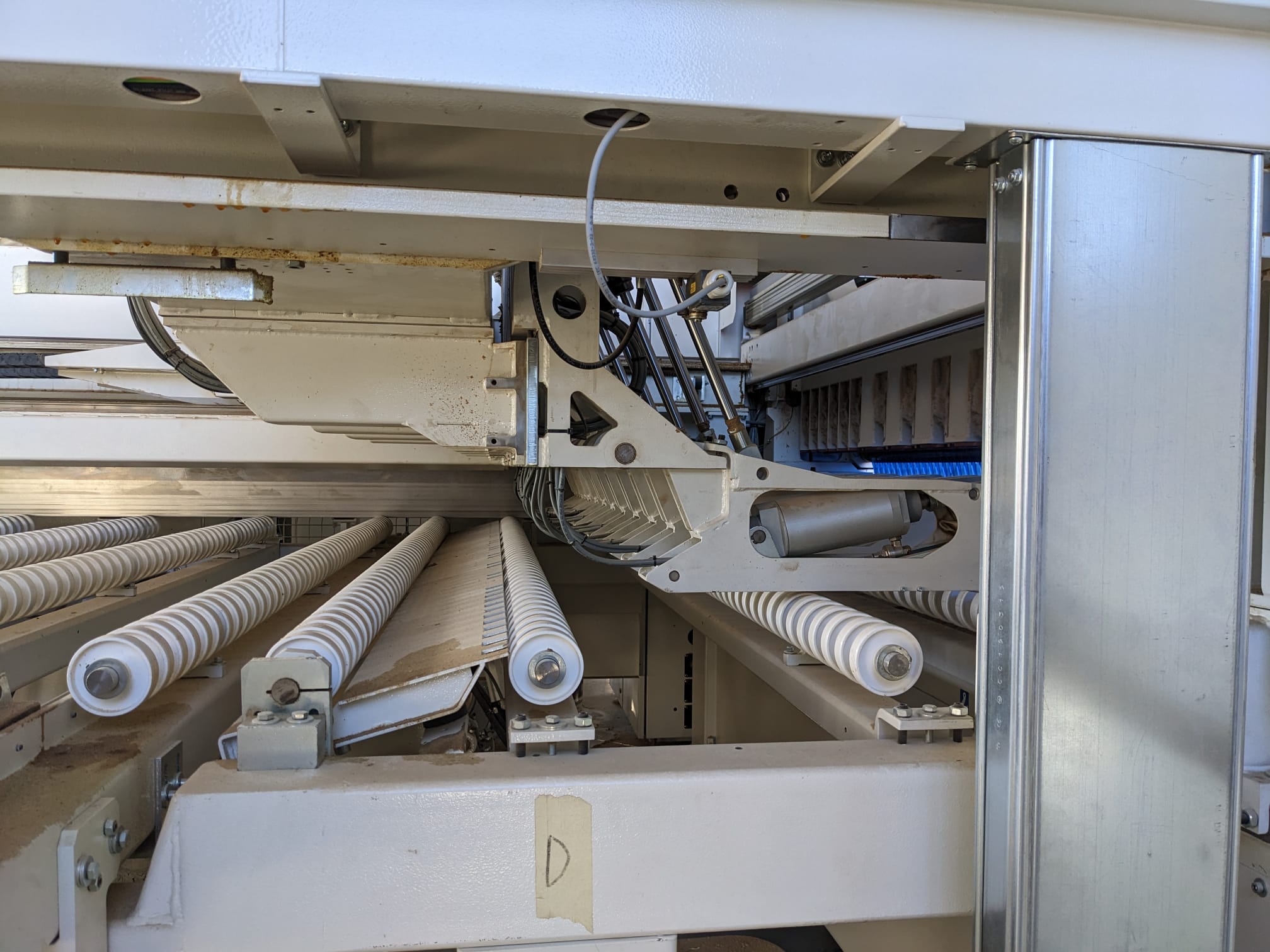

Tiltable side pressure rollers in the cross-cutting area

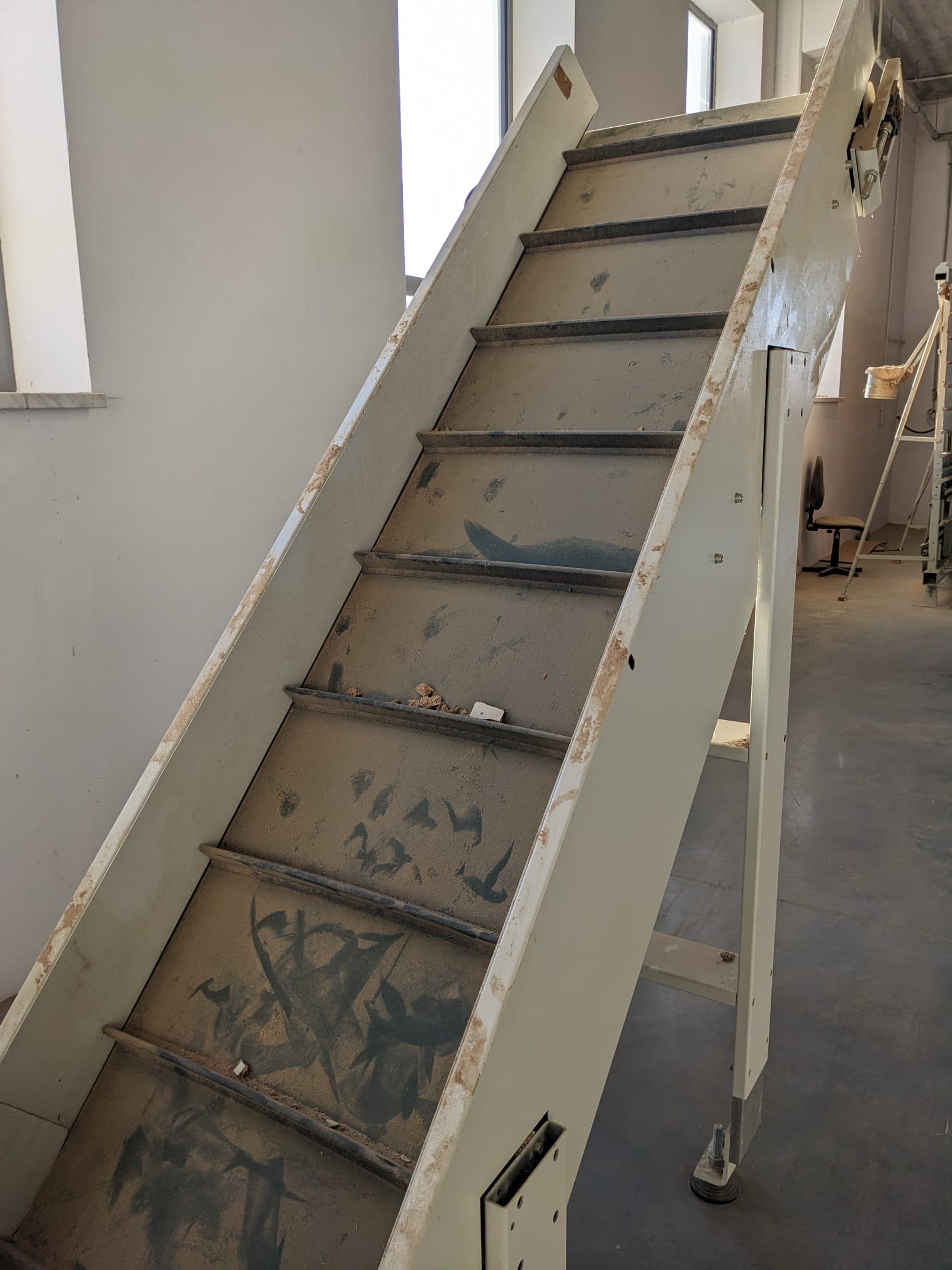

Vibration conveyor for waste after longitudinal cutting

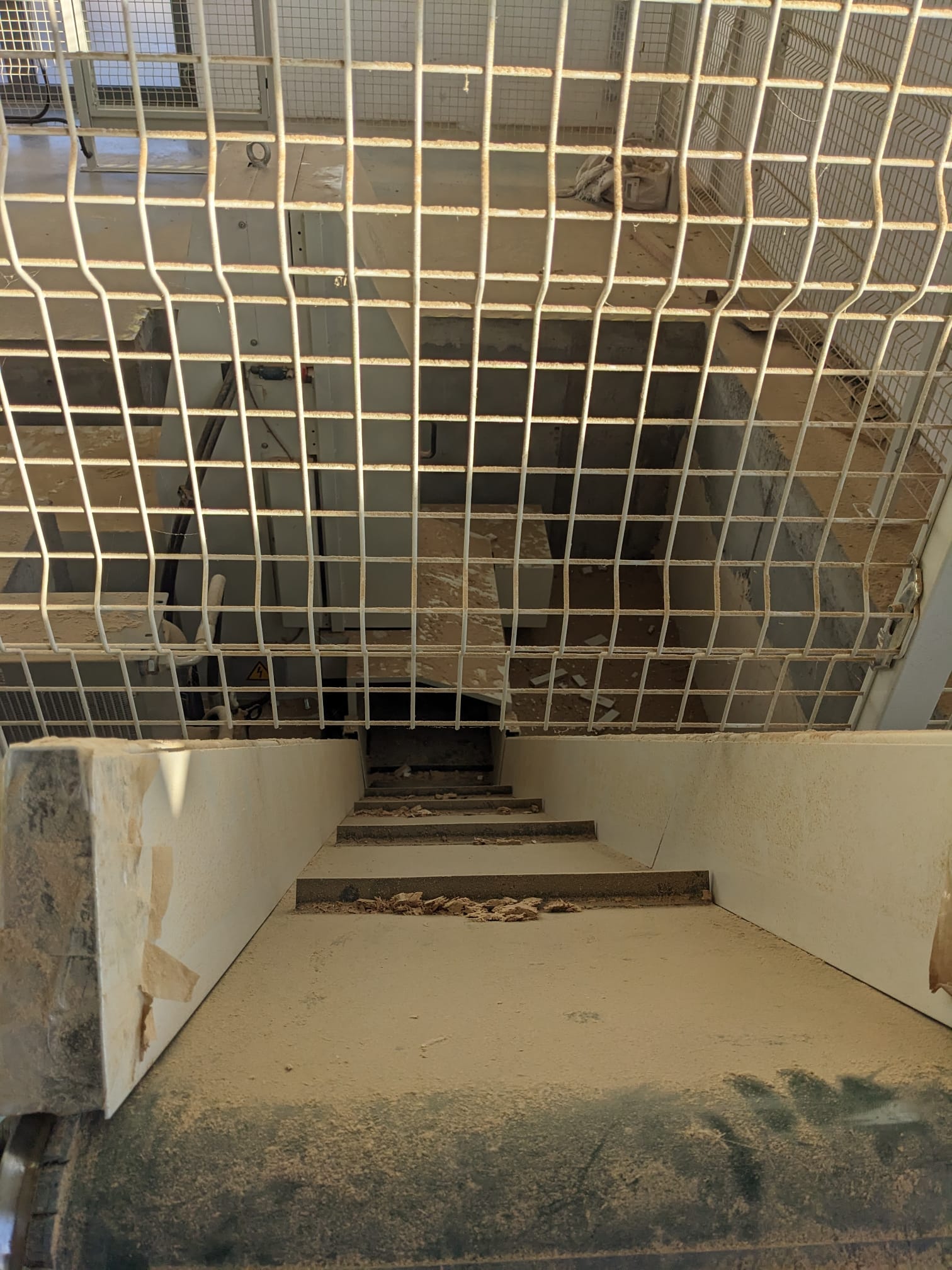

Shredder for waste

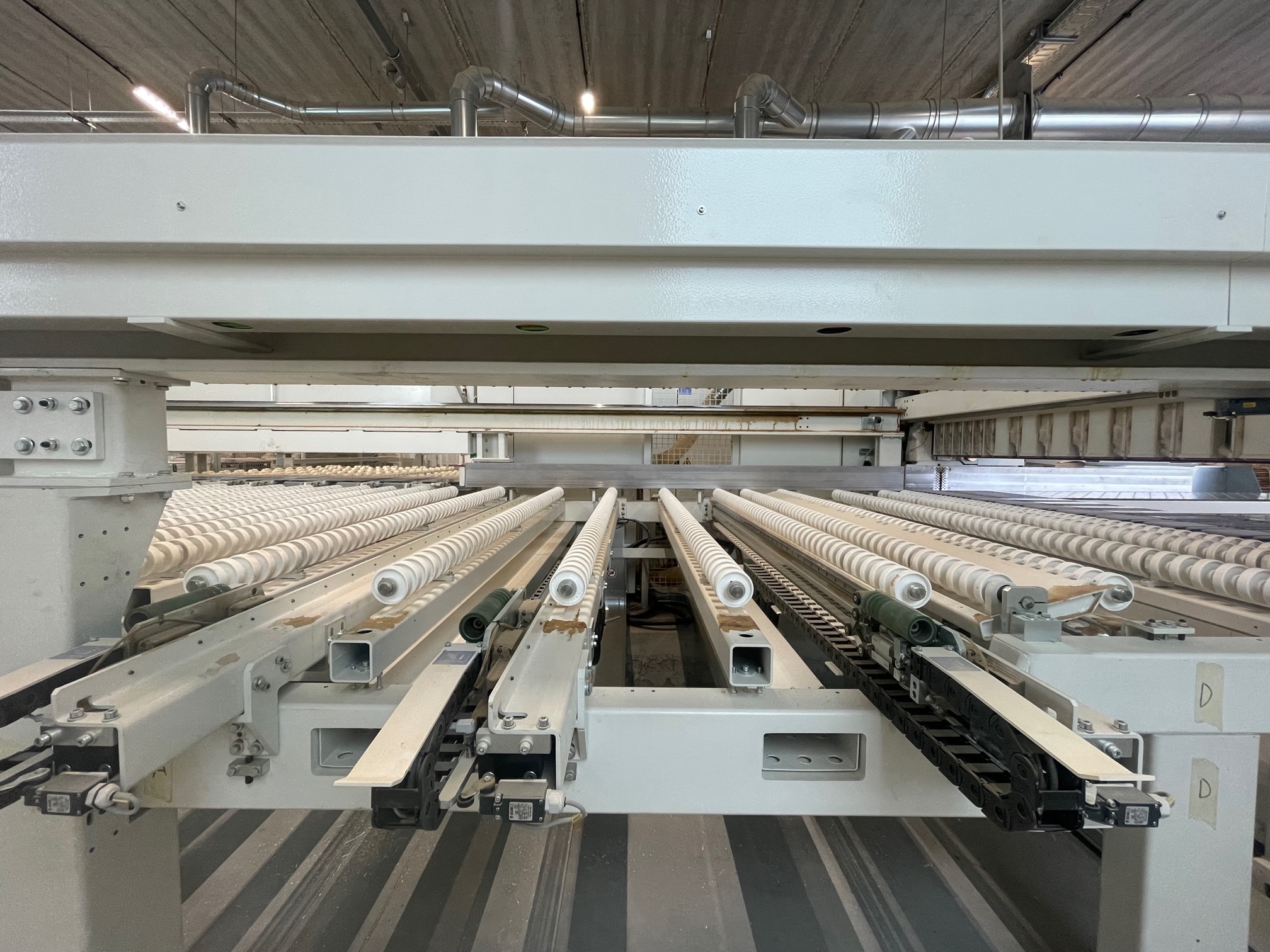

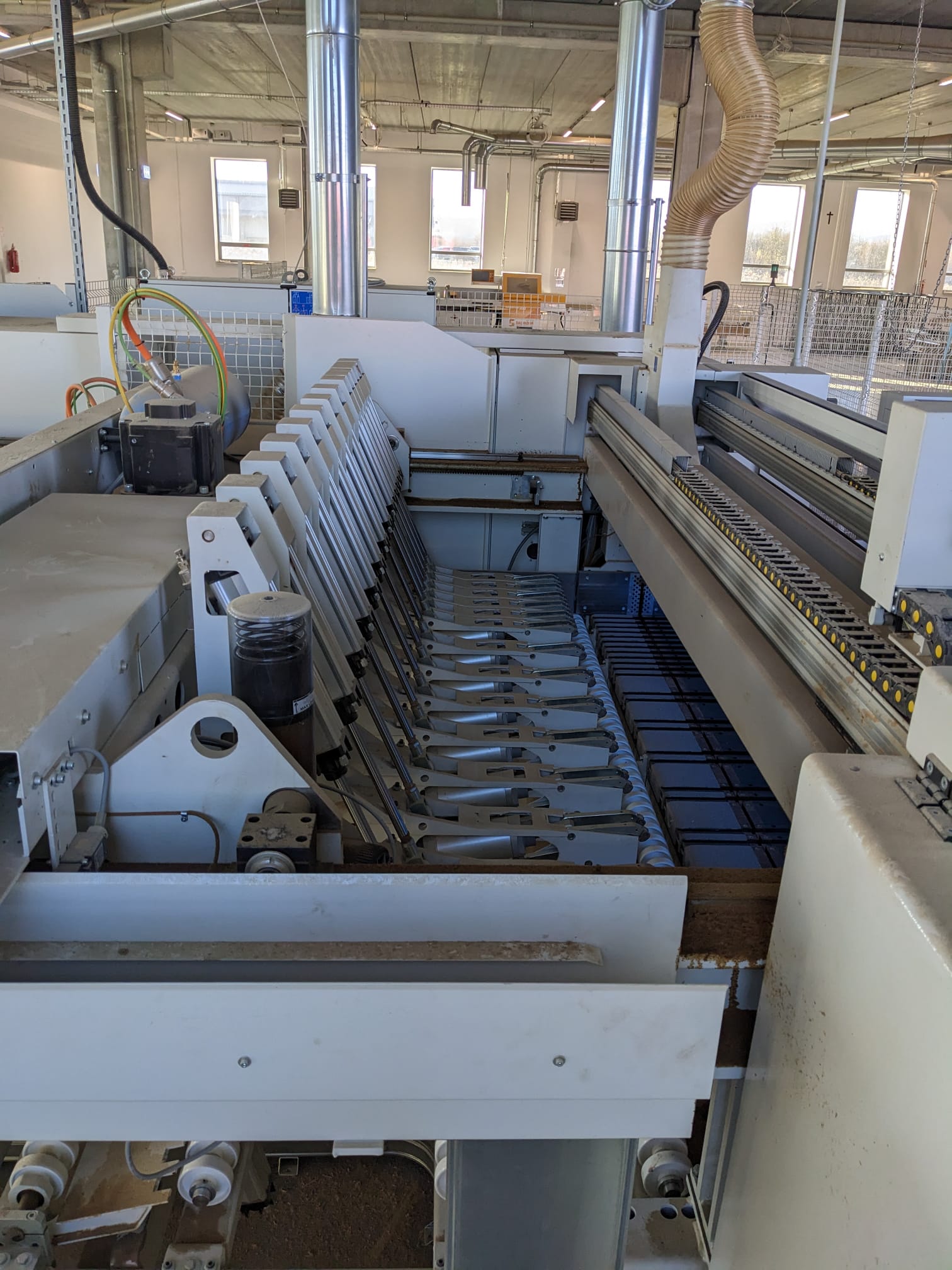

Tiltable grippers in the longitudinal cutting area

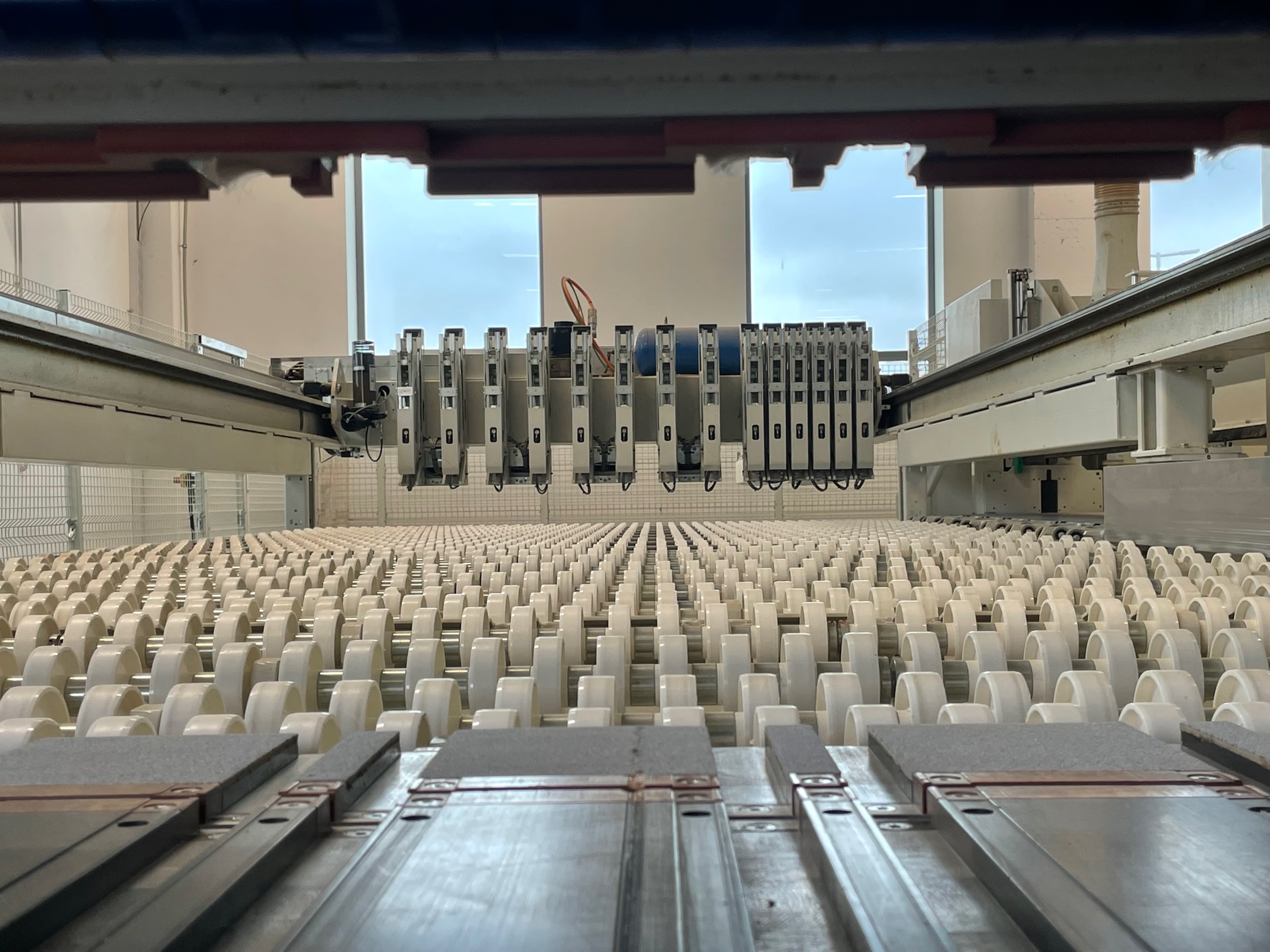

FLEXCUT 02
2 movable sets with 3 double grippers each in the set

OTTIMO - PERFECT CUT TOP - for angle systems

EASY CUT - Connection program



Note:
The technical data and descriptions are copies of the order confirmation at the time. Data is for informational purposes only and is not binding.
