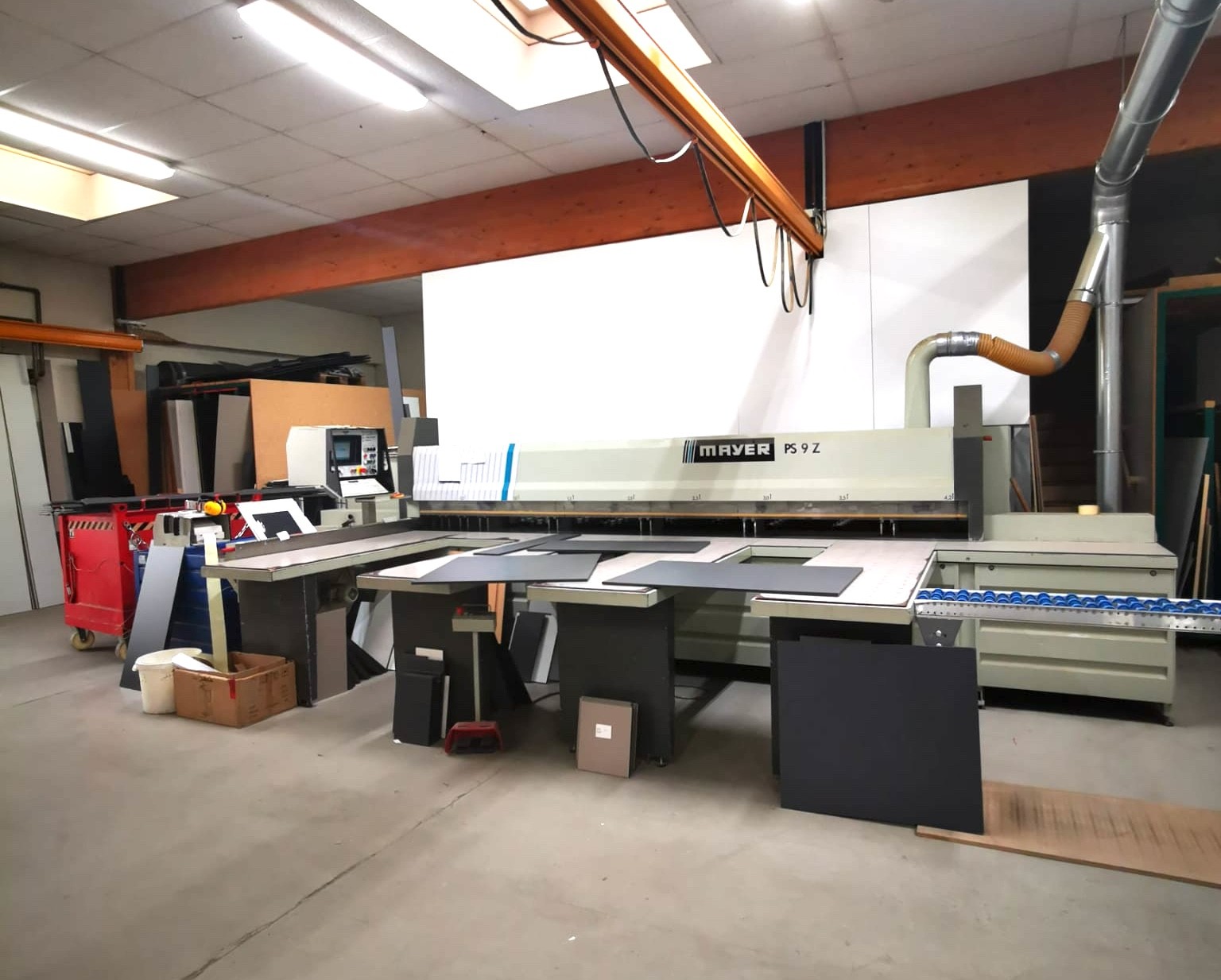

Horizontal Panel Saw

Horizontal Panel Saw
Manufacturer: Mayer
Model: PS9Z ECO - 4200
Year of manufacture: 1999

Technical Data
Saw motor: 12 kW motor
Saw blade diameter: 355 mm
Cutting height: 80 mm
Saw blade projection: 105 mm
Cutting length: 4200 mm

Scoring unit with pneumatic lowering during return stroke, scoring motor 1.1 kW, for 127 mm Ø conical scoring blade

Left angle table
2000 x 600 air cushion

Side table 2000 x 600
Air cushion

Material pusher
Travel distance 4200 mm

Package clamps: 7
Opening height: 80 mm, double-finger design

Trimming stops for cutting panels with protruding veneers, 3-finger design for bundle cuts

Automatic pressure device 20-1200

Automatic cutting height adjustment

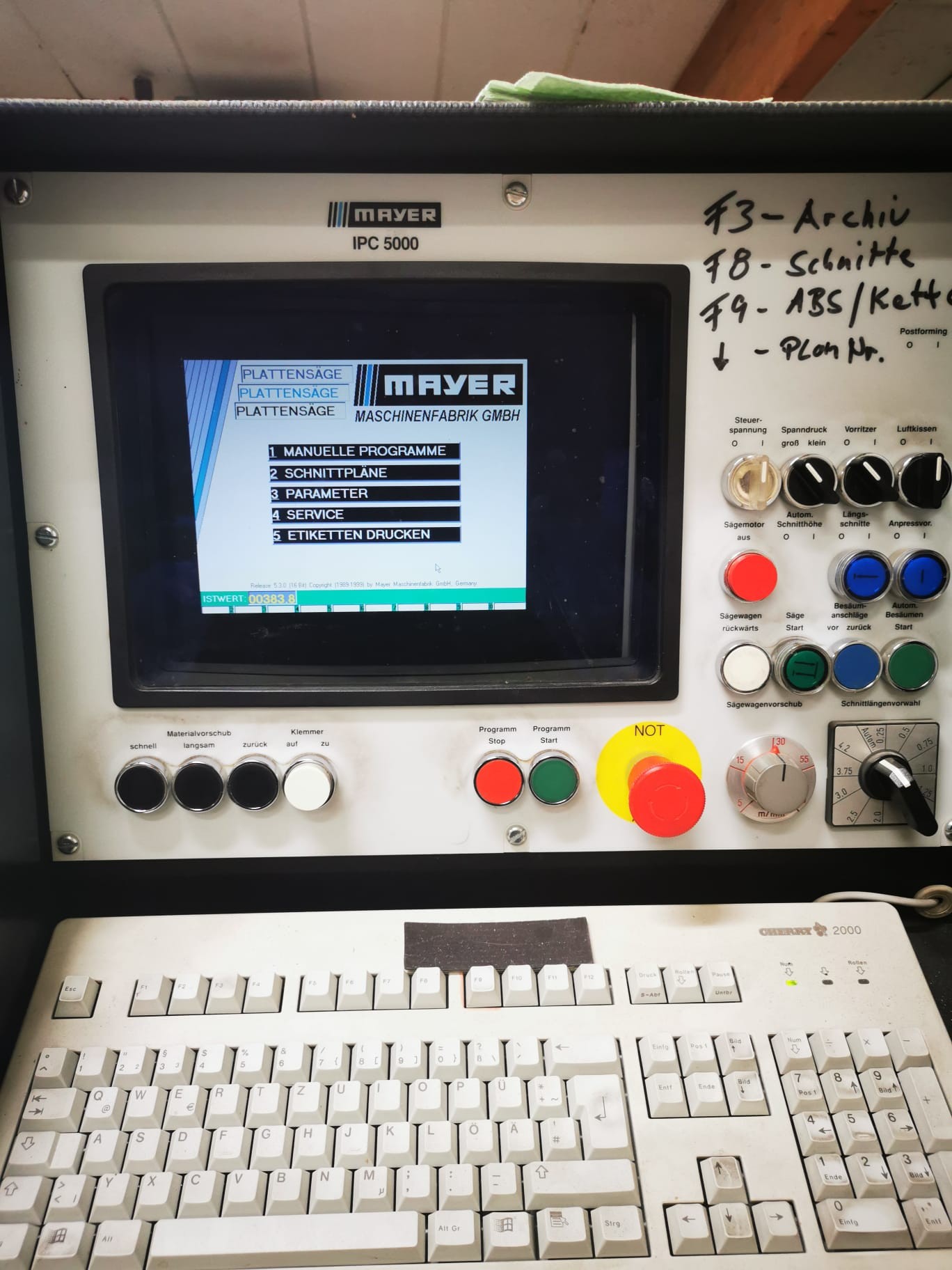

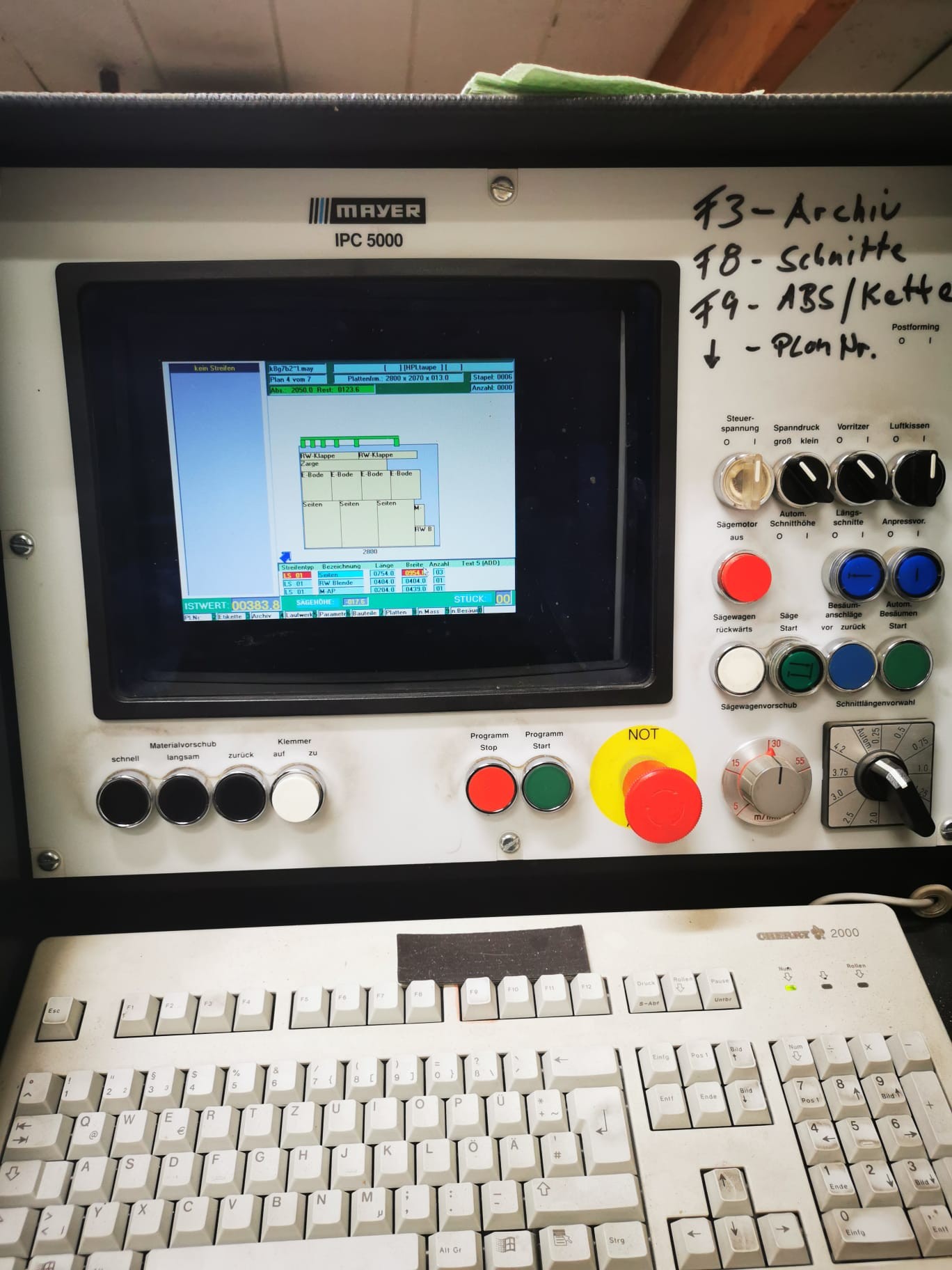

Optimization program EASY optimizer

Optimization program Cutting optimizer
Professional optimization system designed for horizontal panel cutting saws.

Note:
The technical data and descriptions are copies of the original order confirmation. The information is for reference only and non-binding.
