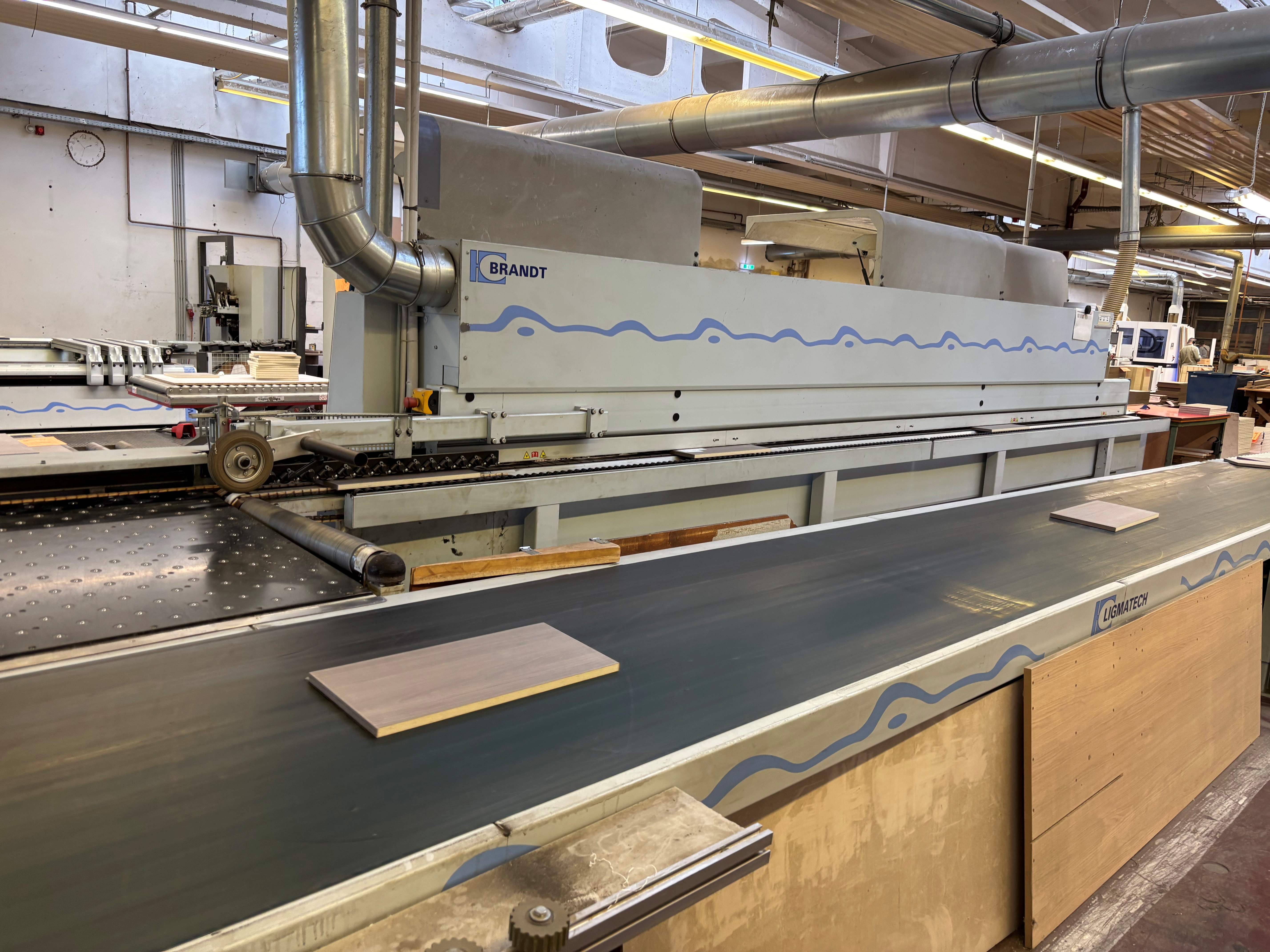

edge banding machine with workpiece return system

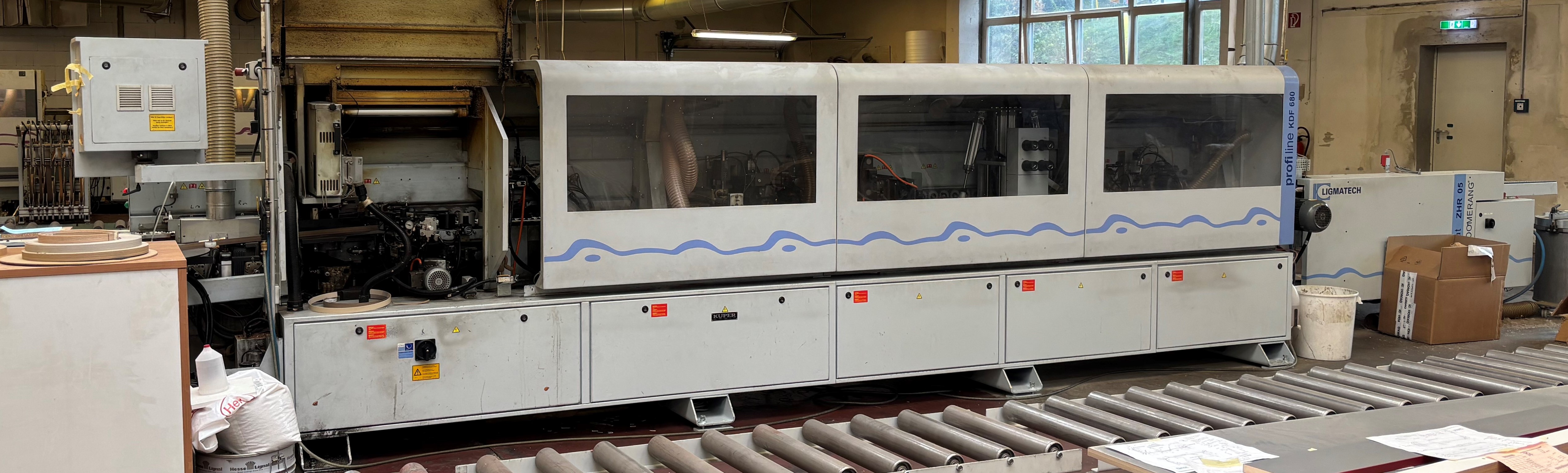

Single-Sided Edge Banding Machine
Manufacturer: Brandt
Model: KDF 680
Year of manufacture: 2008

Including Workpiece Return System
Manufacturer: Ligmatech
Model: ZHR05/R/075
Year of manufacture: 2008

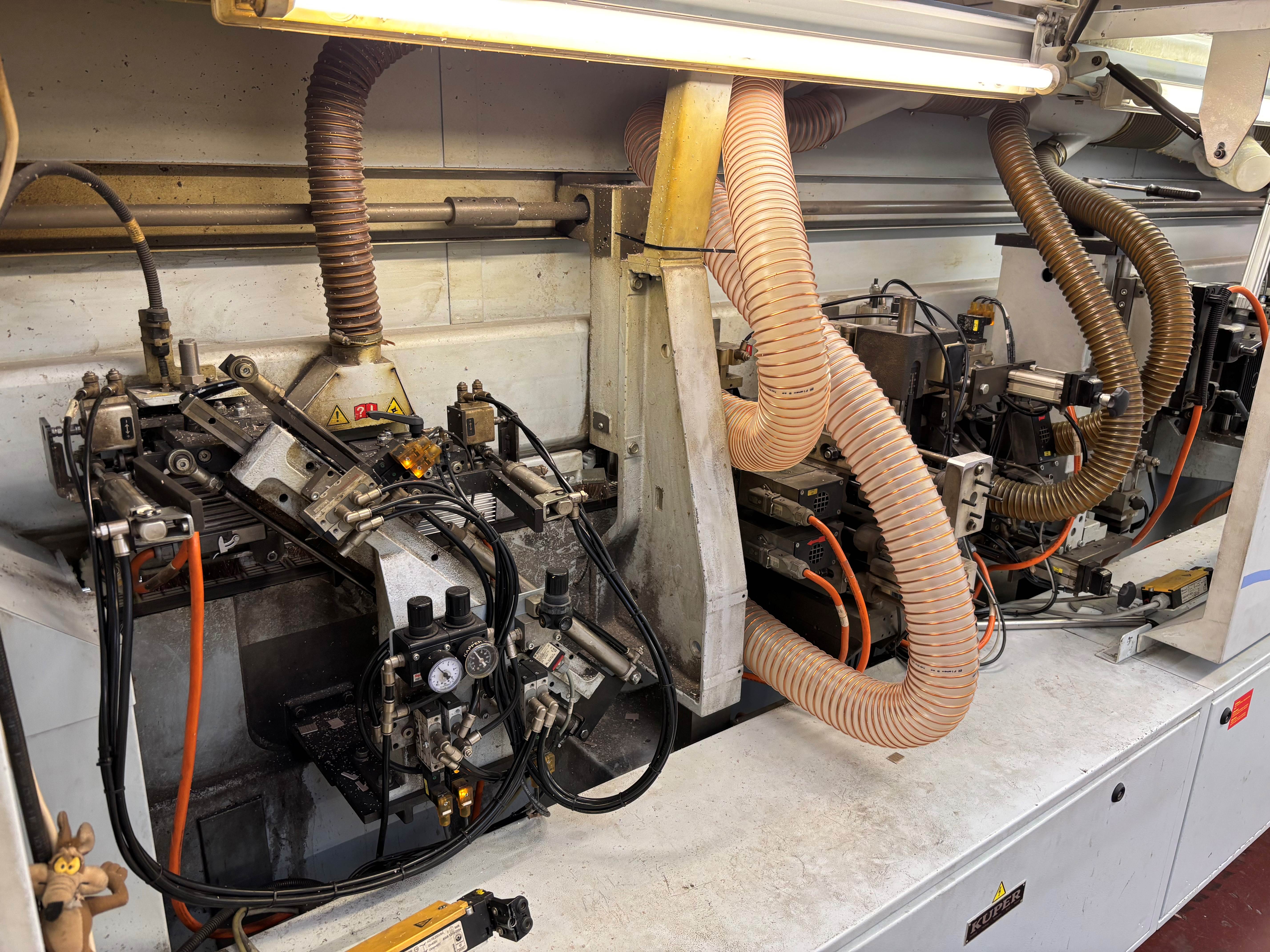

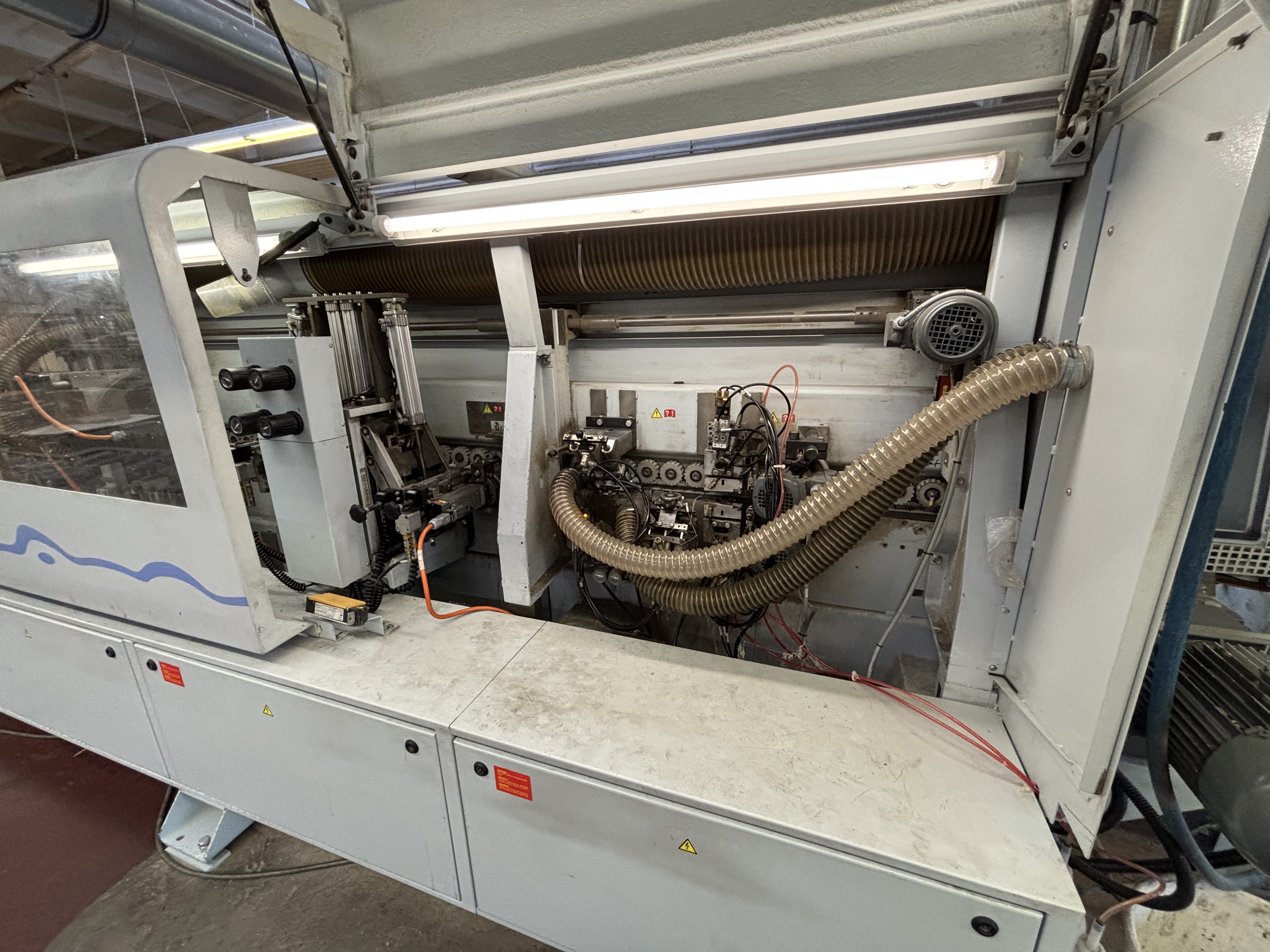

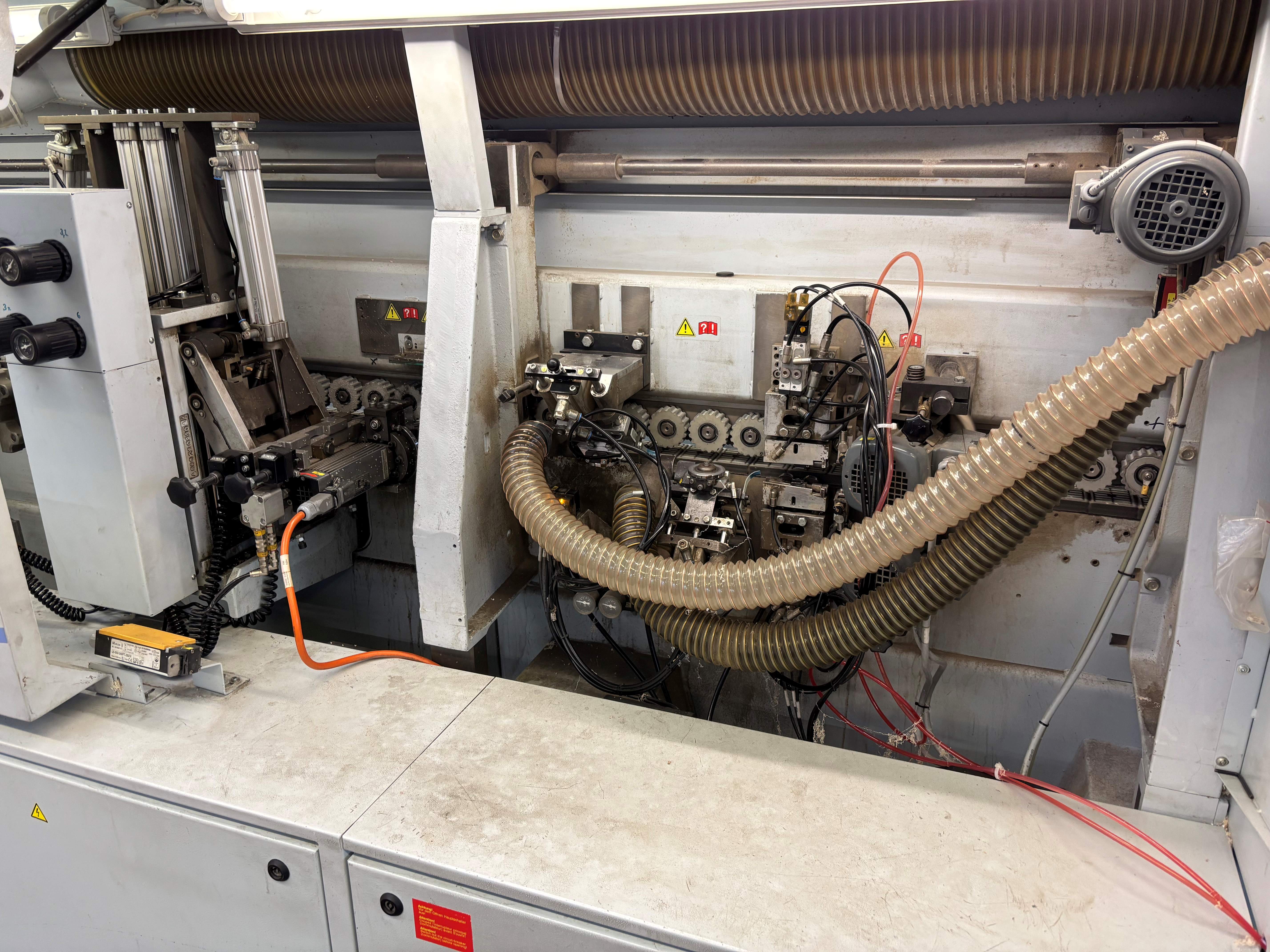

Technical Data:

Edge thickness: 0.4 – 12 mm

Workpiece thickness: 8 – 60 mm

Feed rate (variable): 8 – 16 m/min

Adjustable infeed fence

Application of separating agent to workpiece

Jointing unit: 2 x 2.2 kW

Automation Package II for dual-router machines

Pneumatic adjustment of end trimming unit (bevel/straight)

Pneumatic adjustment of scraper blade

Pneumatic adjustment of milling unit

End trimming unit bevel/straight: 2 x 0.35 kW HL 6110

Pneumatic 2-point adjustment for end trimming

Pre-milling unit: 2 x 0.55 kW

Milling unit: 2 x 0.55 kW

Universal milling unit: 1 x 4.0 kW UF 6200

Profile trimming unit (top & bottom): 2 x 0.35 kW FF 6220

Scraper with quick-change heads ZK 6510

Flat scraper for glue joint ZF 6600

Cleaning agent application

Buffing unit with 2 motors FP 6810

Electrical/mechanical interface: ZHR01/ZHR02/ZHR15


Note:
The technical data and descriptions are transcribed from the original order confirmation. The information is for reference only and is not legally binding.
