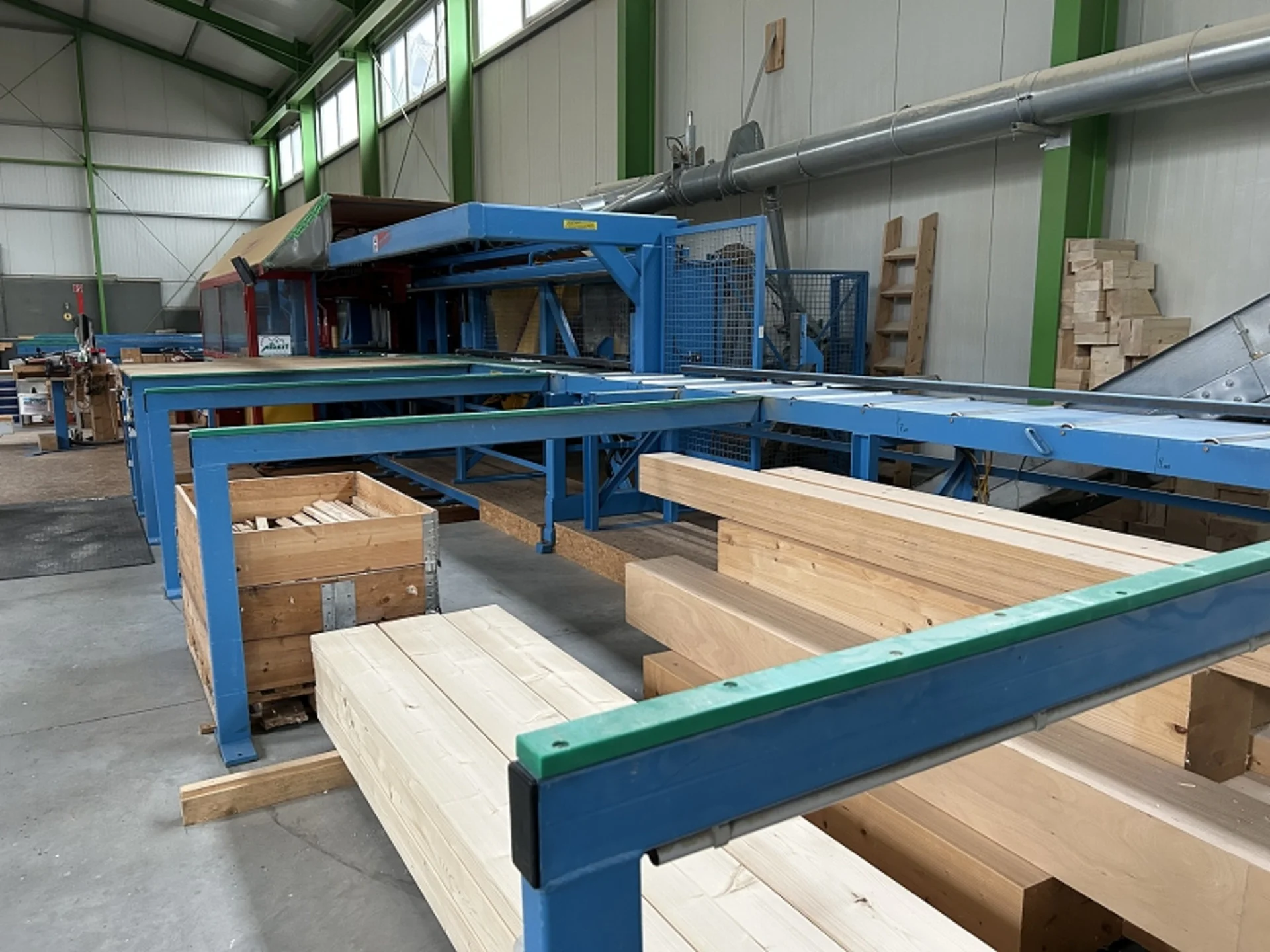

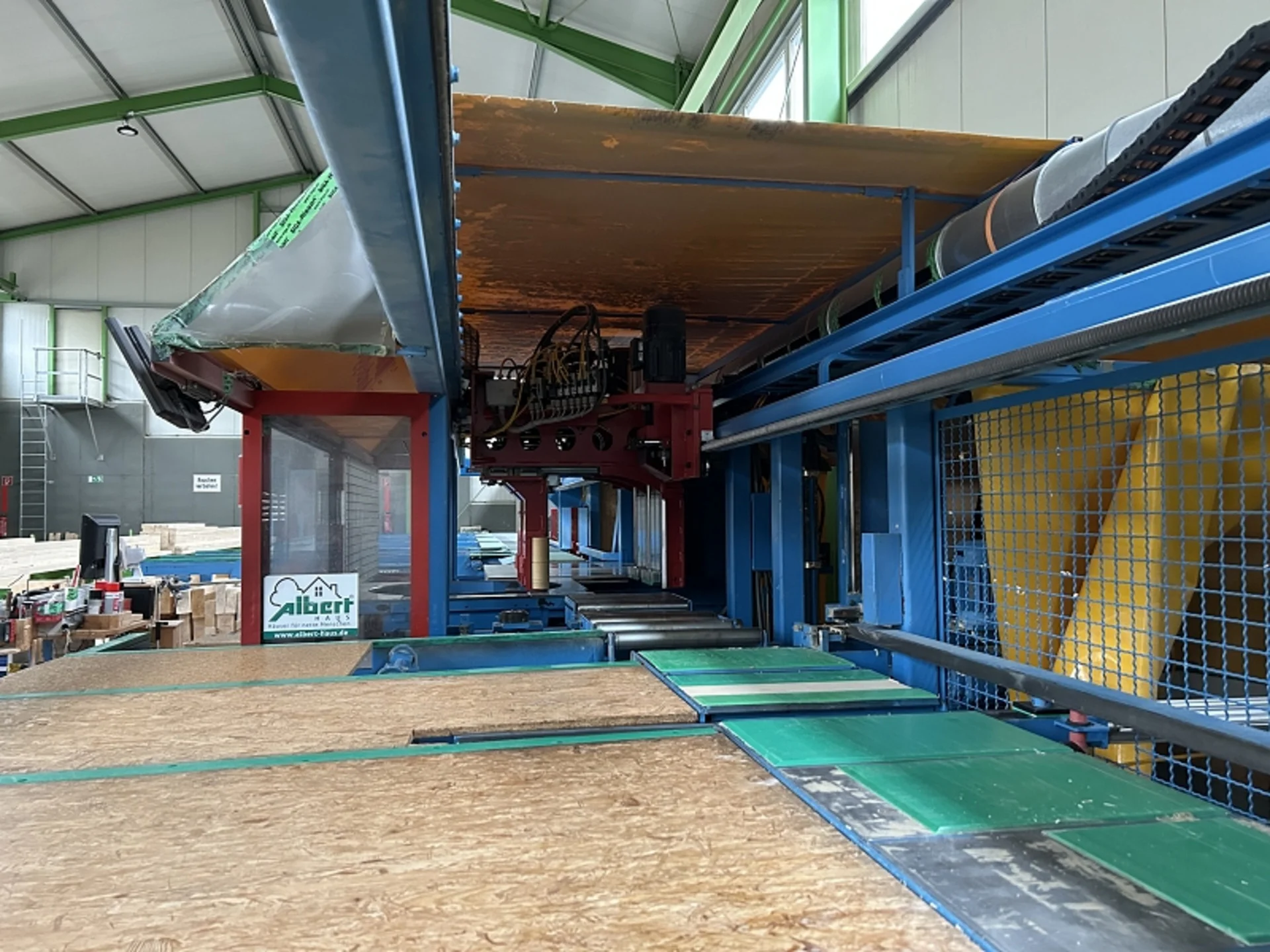

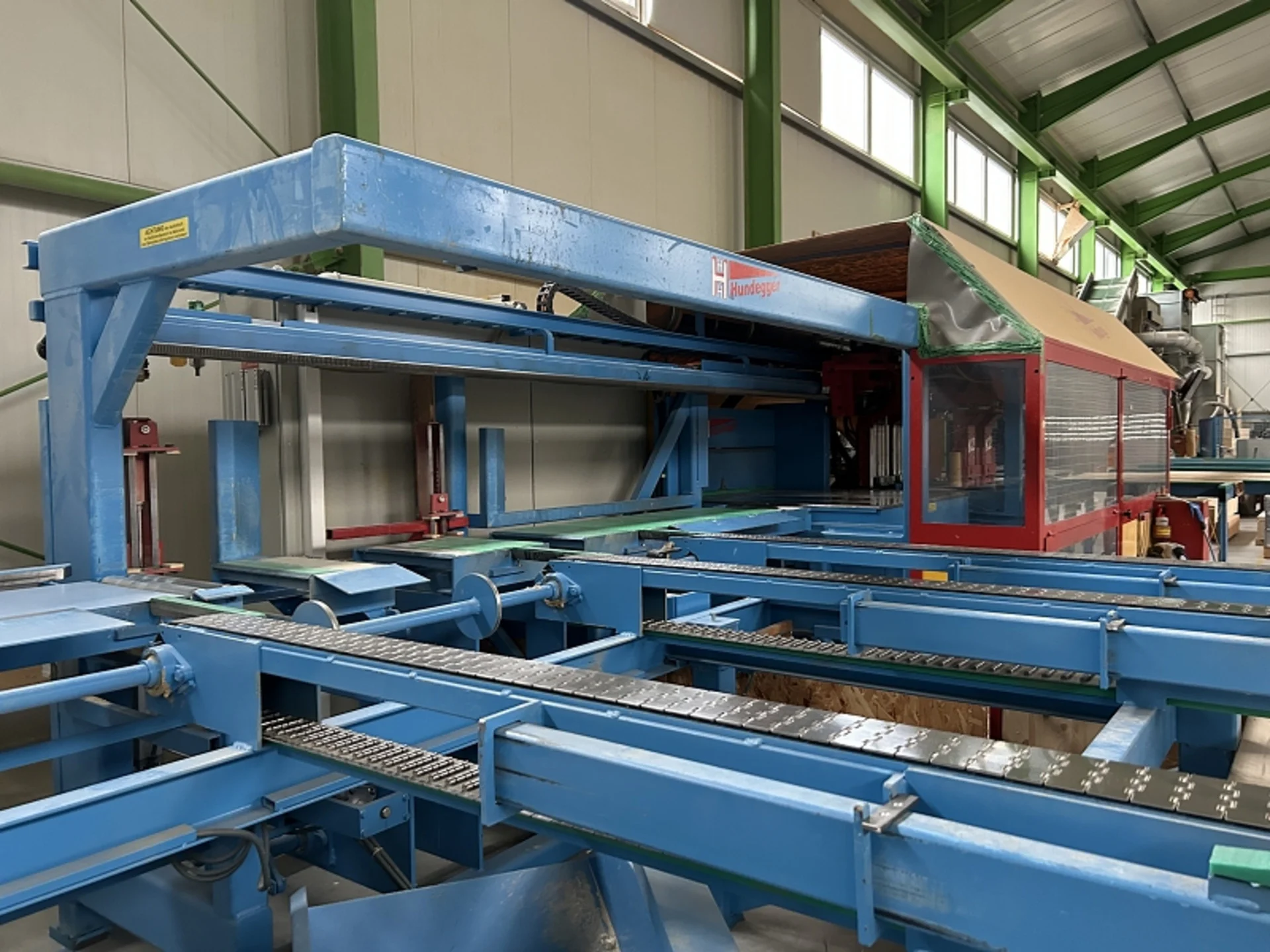

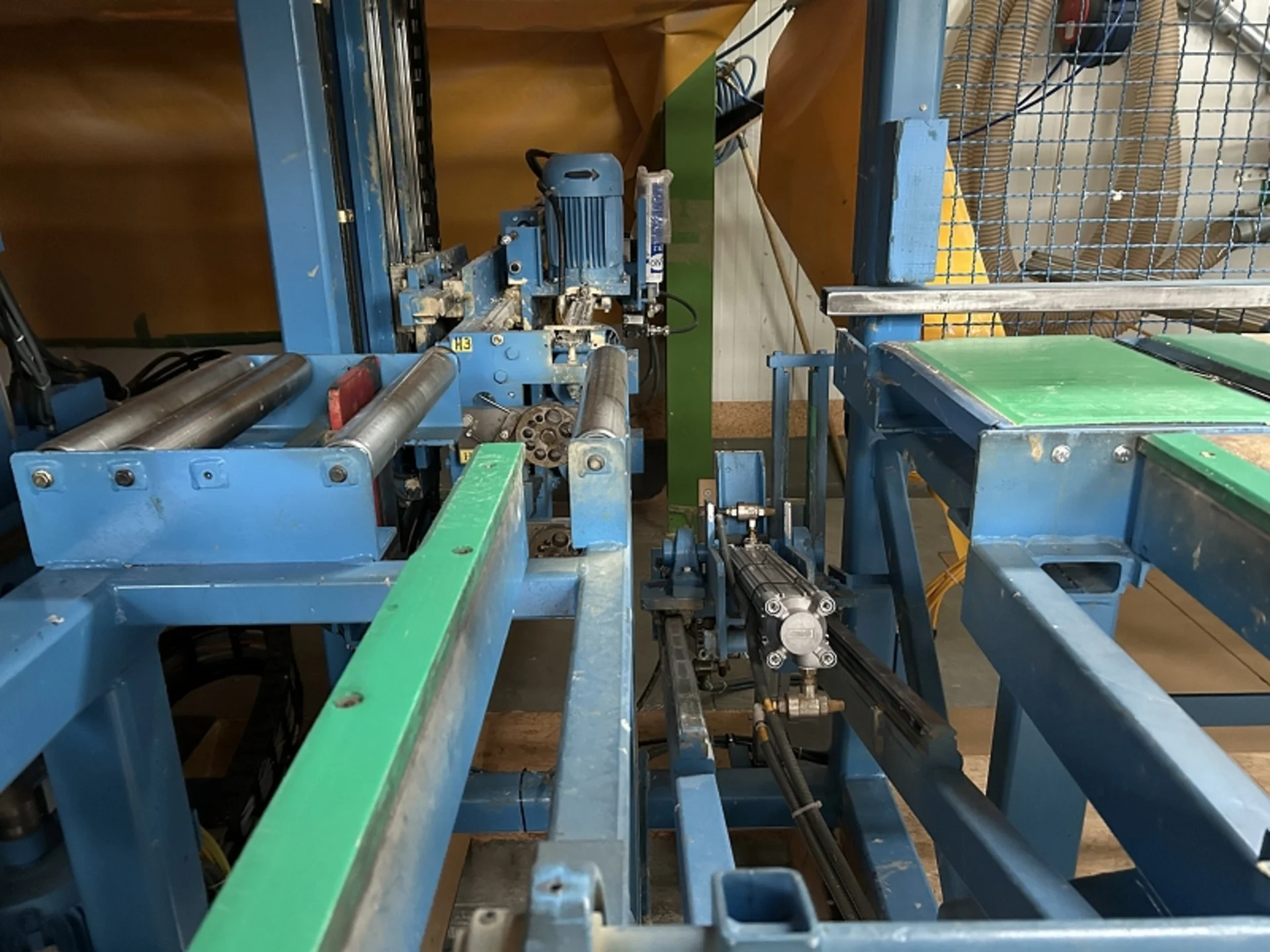

timber framing machine"

Manufacturer: Hundegger
Model: CNC Timber Framing Machine K2-5-450
Year of Manufacture: 2005

Technical Description:
Equipment:
• Infeed length: 8.27 m
• RL: 11.76 m / 3.0 m
• Max. timber length, infeed: 16 m
• Max. timber length, outfeed: 12 m
• Color: RAL 5012 blue
• Infeed cross conveyor, 5-strand, 2.2 m
• Extendable timber support table
• AQF strand with shaft extension, 2.9 m
• Under-table pivoting crosscut saw
• Straight safety guard flap
• Waste disposal downwards
• Control for waste disposal system
• Universal milling unit, 5-axis with profile cutter
• Dovetail cutter
• Finger joint cutter
• Combination support for vertically operating tools
• Drilling unit, 3.0 kW
• Finger cutter 1
• Combination support for horizontally operating tools
• Slotting unit, 480 mm
• Drilling unit 1, 2.2 kW
• Drilling unit 2, 2.2 kW
• Marking device, reference side
• Marking device, operator side
• Pneumatic beam turning station
• 7-arm outfeed table
• Extension roller conveyor, 5.3 m

Machine is still under power and can be tested at side of the preowner.
Available from: Q4/2025


Note:
The technical data and descriptions are copies of the order confirmation at the time. Data is for information purposes only and is not binding.
