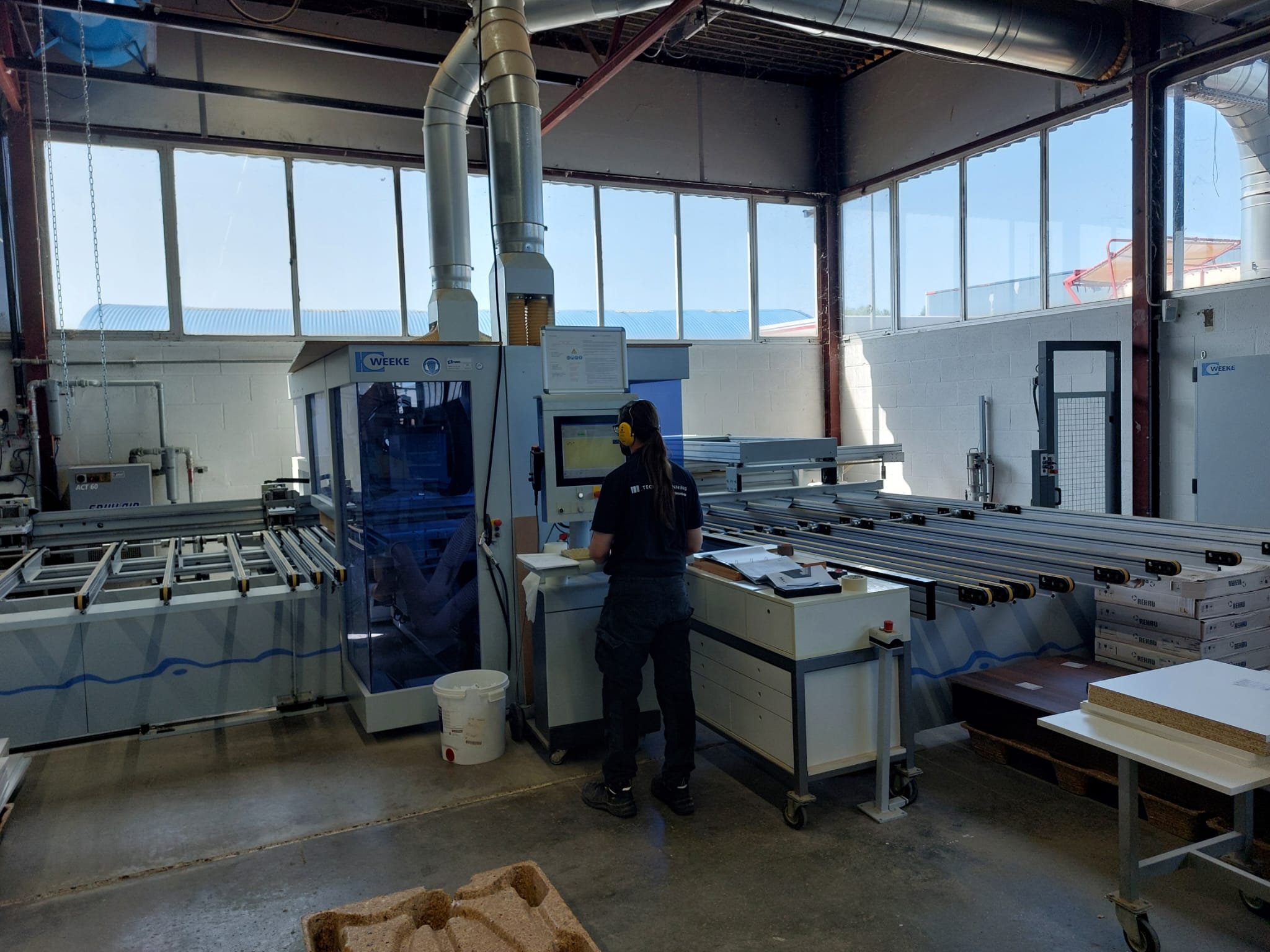

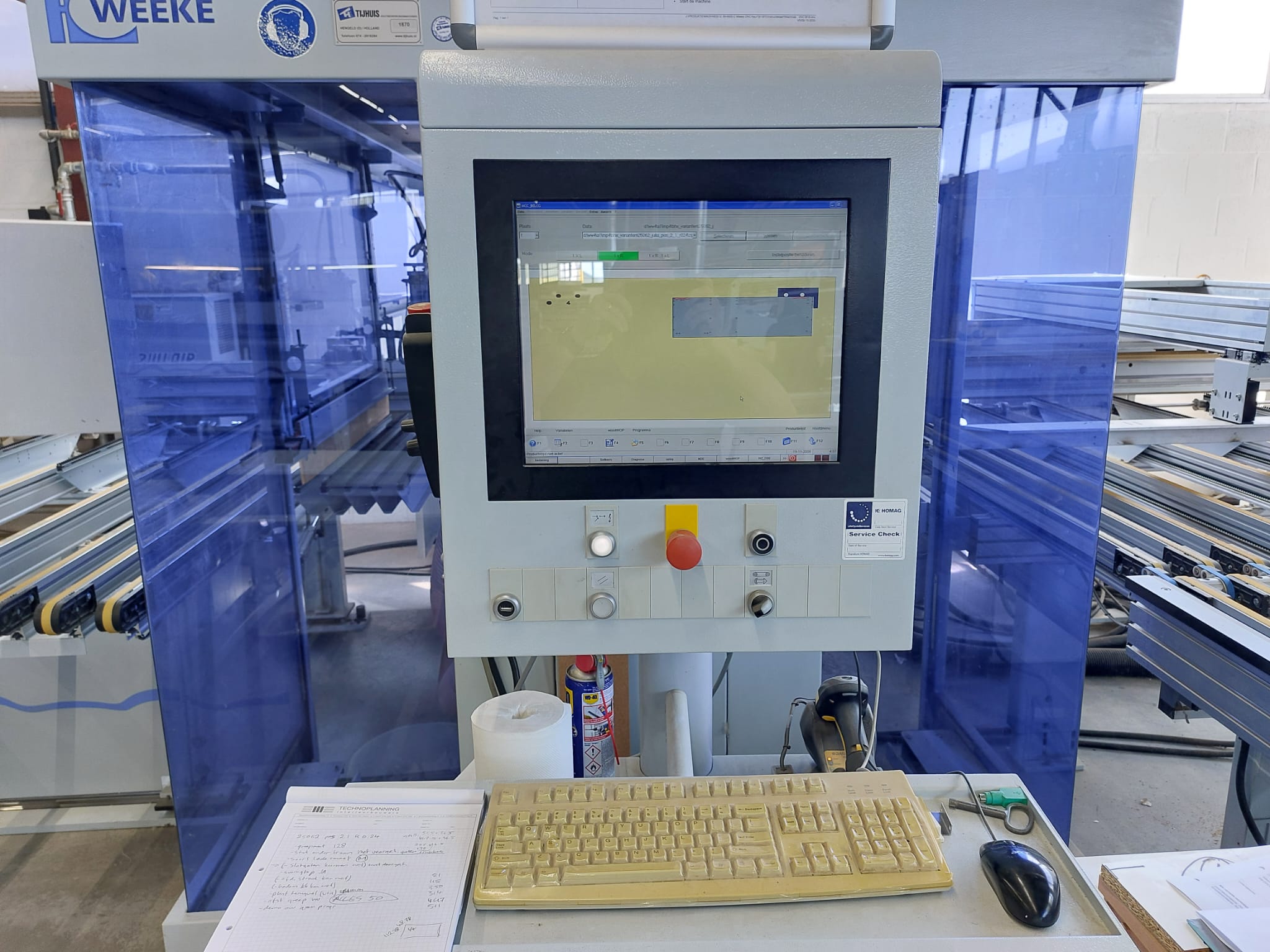

CNC machining center

CNC machining center
Brand: Weeke
Type: Optimat BHX 500/D
Year of manufacture: 2009


Technical data
Speed
- X - axis collets: 138 m/min
- Y - axis: 80 m/min
- Z - axis: 50 m/min
- Z - axis pressure plate: 27 m/min

Pneumatics
- Standard compressed air quality according to ISO 8573-1
- Pressure in the supply line: min. 7 bar
- Compressed air connection: 1x R 1", 1x R1/2"
- Compressed air consumption: approx. 2500 NL/min

Suction
- Suction connection: 2* D: Ø280
- Extraction capacity 1 and 2 nozzles: min. 4450 m3/h
- Negative pressure 1 and 2 nozzles: approx. 3000 PA
- Air speed: min. 20 m/sec

Electronics
- Protection class: IP53
- Operating voltage: 3* 400 Volt. +/- 5%
- Frequency: 50/60 Hz
- Rated current: 35 A
- Recommended pre-fuse: 50 A
- Total connected load: 19.5 kW

Workpiece dimensions
- Length: 6500 mm
- Width: 2300 mm
- Height: 2700 mm



Note:
The technical data and descriptions are transcribed from the original order confirmation. The information is for reference only and is not legally binding.
