-with joint milling
- with PU gluing unit
- with KFA unit
- with 2 grooving units
- with workpiece return

- Vertical CNC panel milling machine

- CNC machining center for timber beams, strips and other narrow parts
- Space-saving and quick magazine loading
- 360° sawing, milling and drilling unit
- immediately available in our showroom

- unterbrechungsfreier Werkstücktransport
- Automatischer 4-fach Werkzeugwechsler
- Keine Werkstücklängenbegrenzung und 1250mm Arbeitsbreite
- optional mit Beschickung und Abstapelung

- новый станок в наличии на складе
- максимальная гибкость в выборе кромочного материала и формы заготовки
- поворотный стол 0 ° - 45 °

с фрезерным узлом и клеенамазкой для склеивания на ребро

Bestehend aus:
- Luftkissentisch
- 2 angetriebene Gurtbänder
- Auslaufröllchentisch

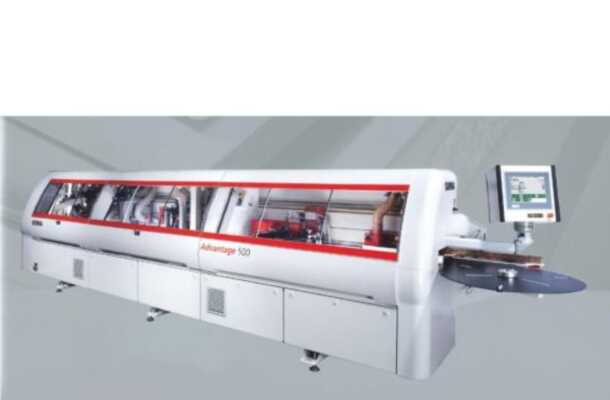

- reconditioned edge banding machine for industrial furniture production.
- Double-sided longitudinal and transverse processing with joining, gluing and finishing of edge material.

Tischabmessungen:
- Breite 1.260 mm + 430 mm Verlängerung
- Tiefe 770 mm + Verlängerung 400 mm

The workpiece return enables one-man operation
on edge banding machines.

для кромкообрабатывающих станков правого типа


Цена : 6.000,00 ЕВРО

Extended workpiece support left- / right side each 840 mm

5 shafts (bottom, right, left, top, bottom)
Air speed 30 - 32 m³ / MIN
Air requirement per spindle 28 - 32 m³ / MIN
Total air requirement 8400 - 9600 m³ / H

cutting length 3100 mm
with croring saw

Machining area 3000 x 1300 x 80 mm
Milling cutter HSD ISO 30 7,5 kW
Automatic tool changer 9-fold, traveling on the X axis
Drill head 16 spindles: 10 x vertical, 6 x horizontal

12 KW milling spindle HSK F63, 24000 rpm
4-fold linear tool change
Working area X=3500 mm Y=950 mm Z=80 mm
Drill head DH 17 6H 1S (11 vertical + 6 horizontal)
Groove saw in X direction
Only 450 working hours

- max. panel width 4500 mm
- max. panel length 2200 mm
- max. saw blade projection 127 mm
- main saw 18.5 KW
- scoring saw 2.0 KW
- with lifting table

- Feed infinitely variable 10 - 40 m/min
- Workpiece protrusion 40 mm
- Workpiece thickness 8 - 60 mm
- Working height to top edge 950 mm
- Working width double-sided min. 240 - 270 mm
- Working width double-sided max. 2500 mm

- with joint milling units
- with copy milling units (4 motors)
- with 2 grooving units (1 of which with automatic adjustment option)
- with workpiece return

- Main spindle with 4-axis working wise
- Machining area 3000 x 1200
- with vertical and horizontal drilling units
- with accessories (adapter units, tools, HSK holders)

fully functional,
good condition
with automatic charging station type: AB 920

Year 2022
5-axis main spindle 12 kW
Drilling head with 12 vertical drilling spindles
17-way linear changer
18-way disc changer
Label printer

- X = 2 x 2.400
- Y = 1.800 mm
- Hauptspindel 12 kW
- 18-fach Werkzeugwechsler
- Verleimaggregat mit 6-fachem Coil-Magazin

29 vertical drilling spindles can be called up individually
6 horizontal drilling in X and Y
Groove saw unit diameter 150 mm
Milling unit 3.5 kW

5-axis main spindle
Drilling crosshead
Saw head 0/90°
Working dimensions: approx. 530 x 130 cm
Refurbished replacement spindle installed in 2023
Operating hours 4,123 h (stand by  end of 2023)

with warm air recirculation
with container discharge
output 25,000 m3/h
filter area 273 m2
filter width 2,700 mm
filter height 6,720 mm
filter length 7,300 mm
weight 5,500 kg
