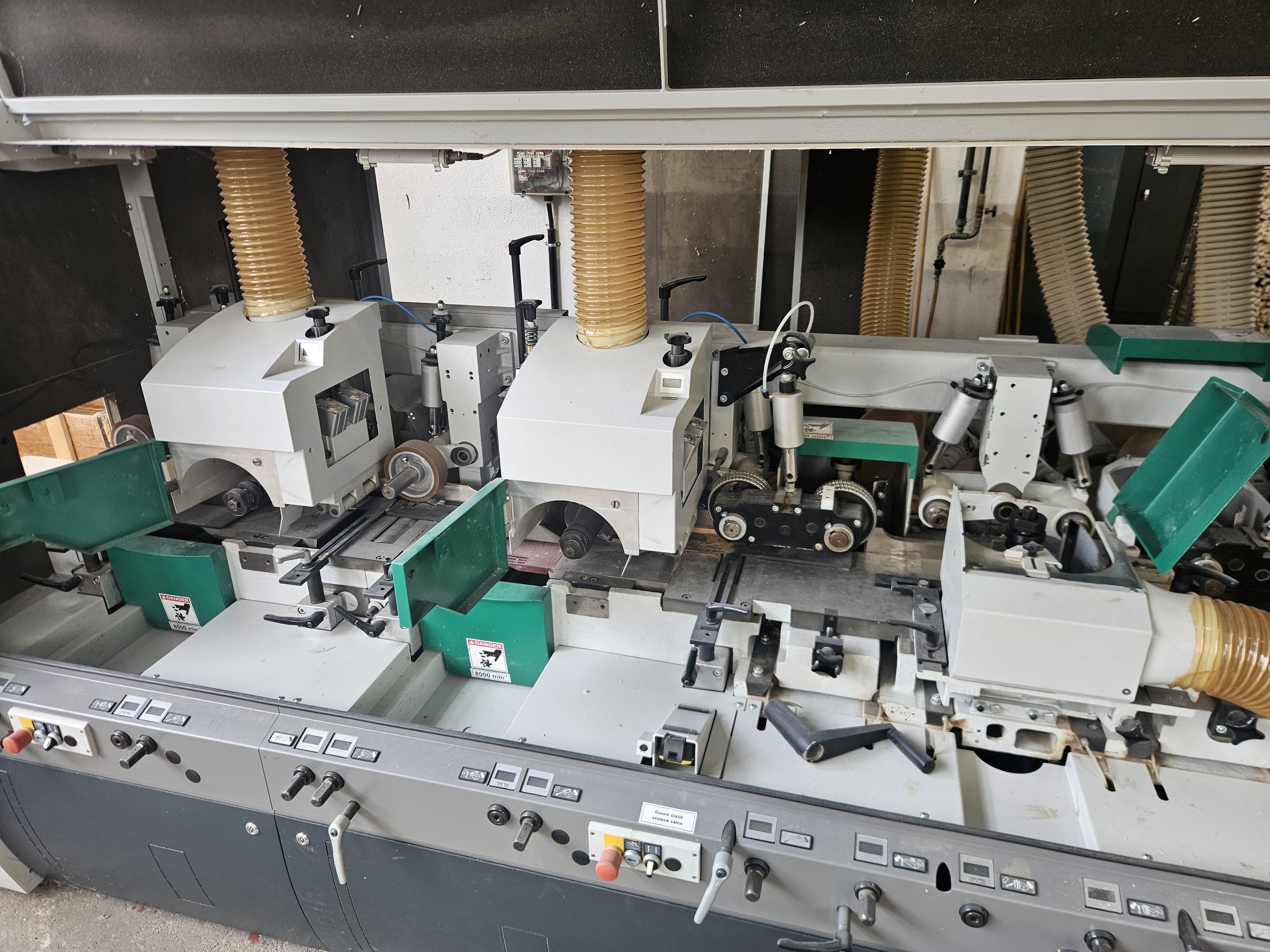

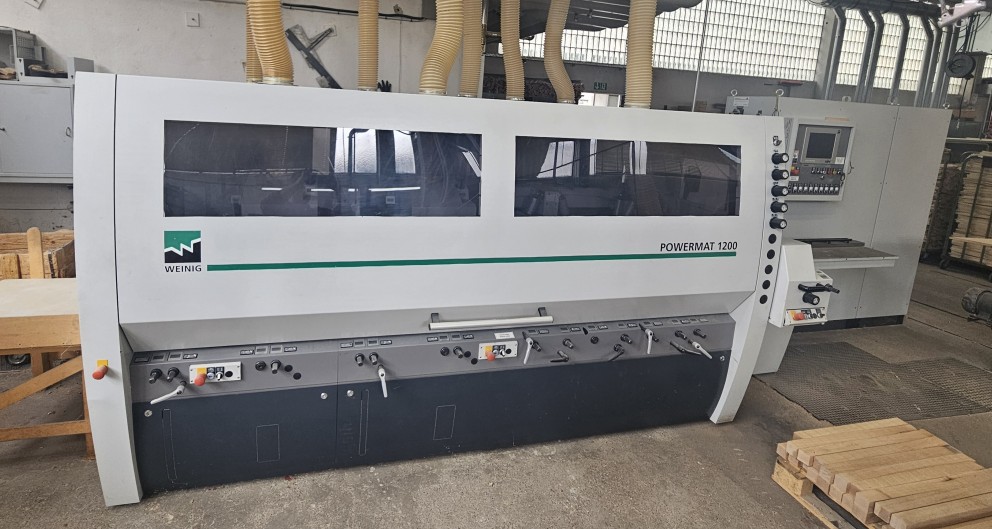

Planing machine

automatic planer
Brand: Weinig
Type: Powermat 1200
Year of manufacture: 2014


Technical data
Working width 20–230 mm
Working height 10–160 mm

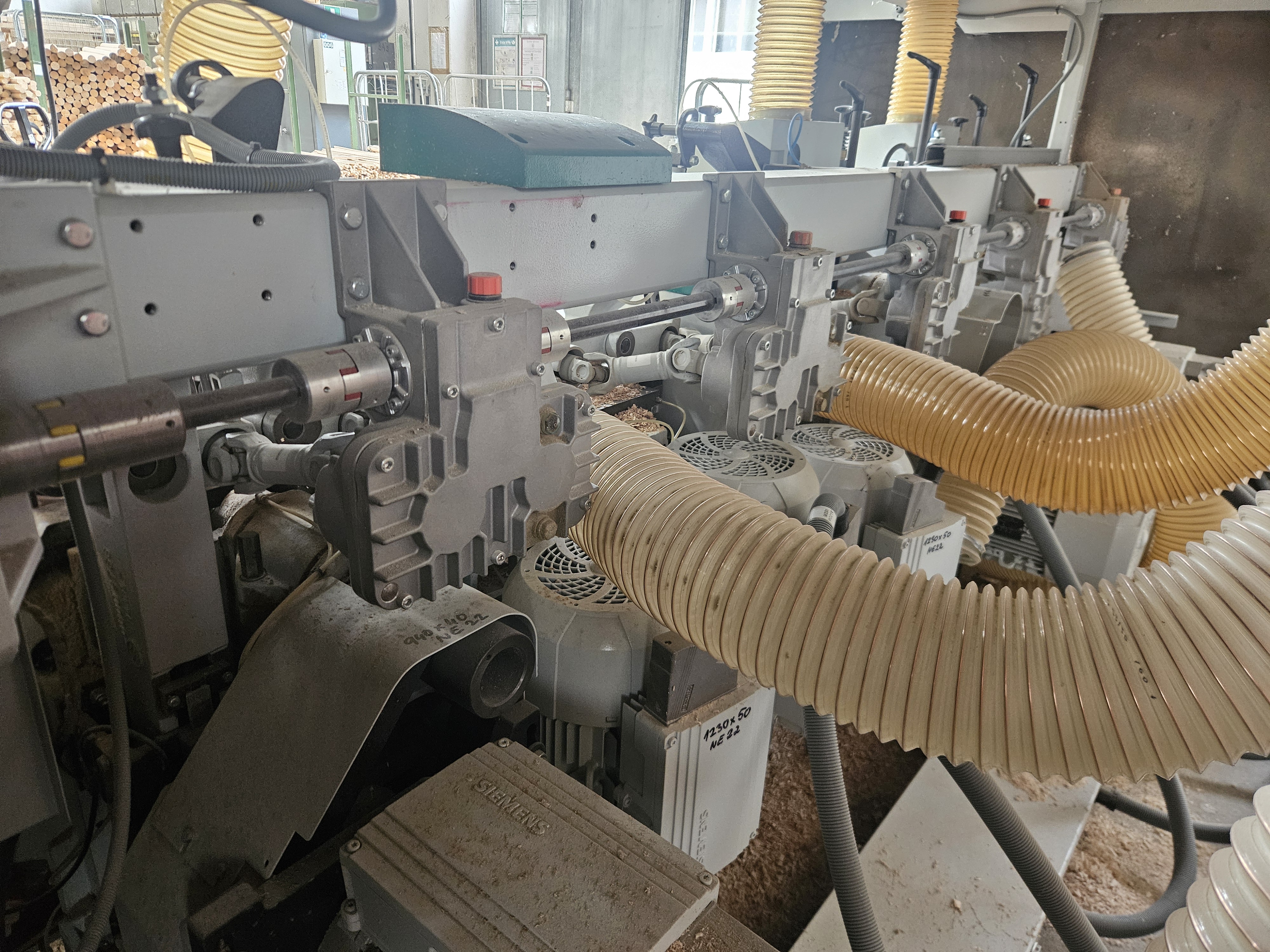

8 spindles with 40 mm shaft diameter
Motors on the spindles: 1–7 = 7.5 kW / 8 = 11 kW
With 2-meter dressing table, including guide rail with rollers
NC-controlled adjustment for spindles 3+5+7
NC-controlled feed adjustment (high/low)
V=6-36 m/min.
Machine operation: PowerComPlus
Profile and tool data management software
Touchscreen function for graphically supported machine operation

- Only approx. 5500 operating hours



Note:
The technical data and descriptions are copies of the order confirmation at the time. Data is for information purposes only and is not binding.
