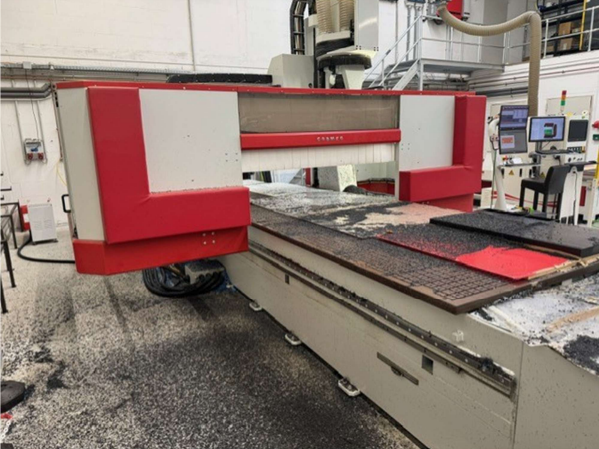

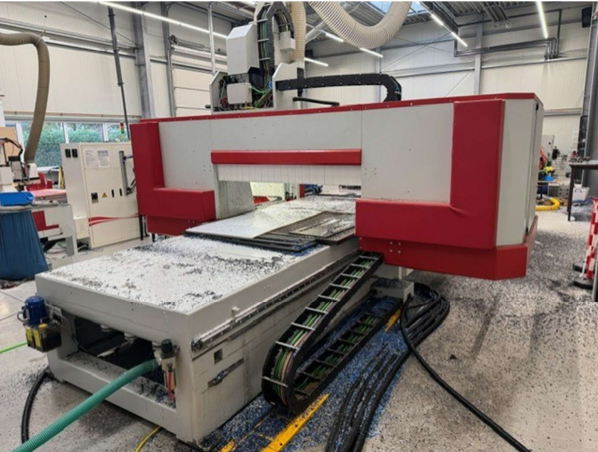

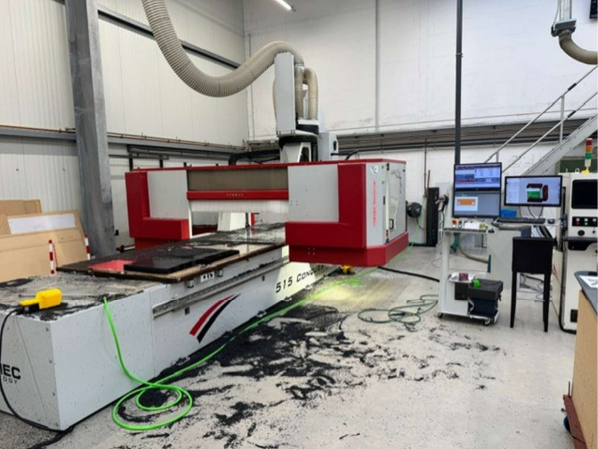

CNC machining center

CNC machining center
Brand: Cosmec
Type: Conquest 515 5-AXIX-500
Year of manufacture: 2020

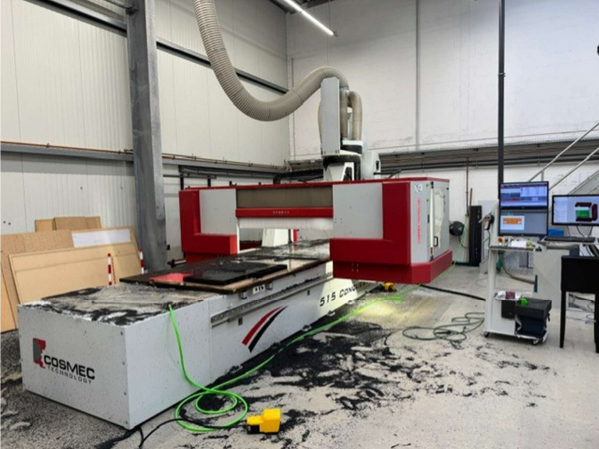

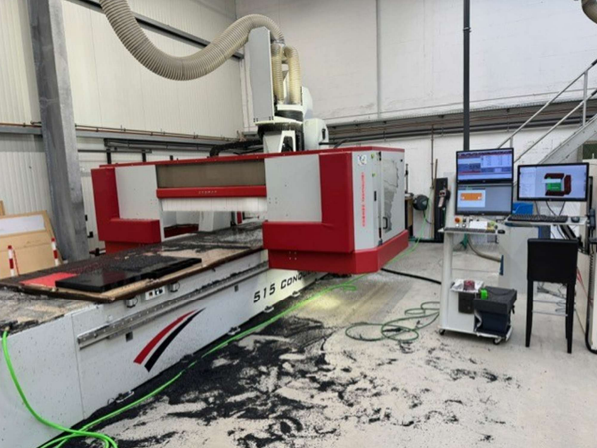

CNC machining center with fixed work table, double-sided driven traveling portal, and continuously interpolating 5-axis milling spindle.
Machine for machining solid wood, wood-based materials, and various plastics.

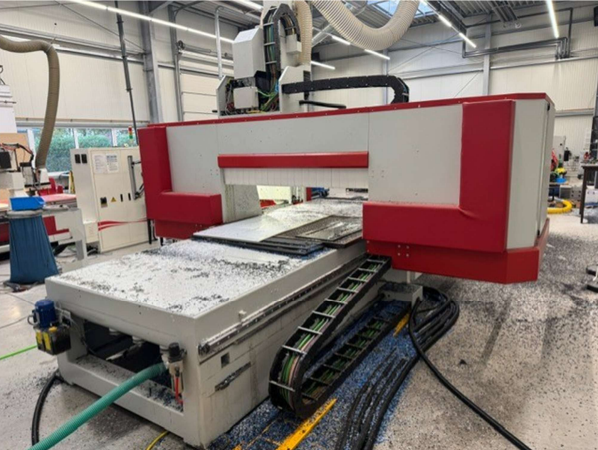

Base machine and traveling gantry
Machine base and traveling gantry made of ribbed welded steel construction, which offers very high rigidity.

Guide system and drives
Travel movement of the X and Y axes with rack and pinion and servo drive. DUAL GANTRY MOTORIZATION: Drive of the X axis with two synchronized servo drive motors.
Movement of the Z-axis via ball screw with servo drive. Dust-protected linear guide.

Safety system
Three-part safety mats allow workpieces to be loaded in the inactive area. Traveling partial enclosure with Lexan protective window for the machining units.

Central lubrication
Automatic central lubrication.

Vacuum system
Vacuum system for pendulum machining with constant suction power in both working areas.

Machine operation
The machine is equipped with a cable-operated remote control for performing basic functions.

Electrical equipment

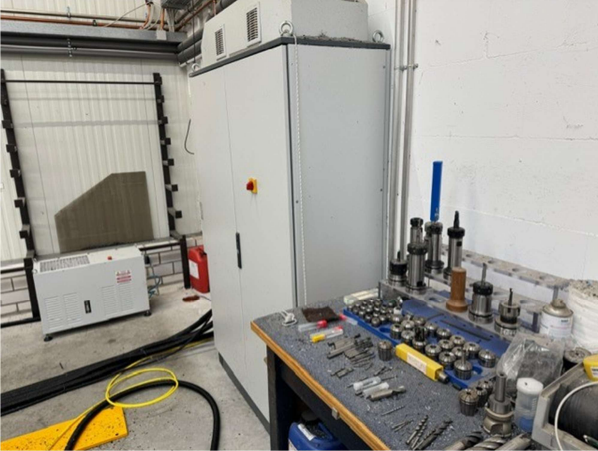

Dust-protected control cabinet (CE) according to IP 55 standard, including air conditioning unit, mobile control panel.

Machine control

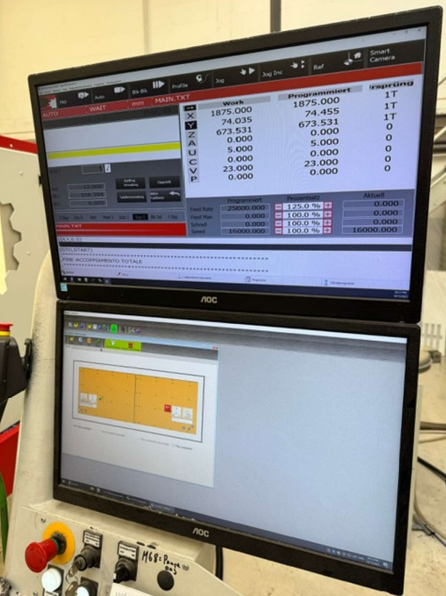

OSAI Open Numerical Control

5-axis fork head Z 700
Movement of the C-axis and B-axis via brushless servo drives
- Maximum rotation speed: 750°/2 sec.
- C-axis rotation: +/- 360°
- Swivel axis: +/- 110°

Technical data
- Max. travel speed X-axis: 60 m/min
- Max. travel speed Y-axis: 60 m/min
- Max. travel speed Z-axis: 24 m/min
- Vector speed: 80 m/min

- Max. workpiece height: 500 mm
- Machining area: 4210 x 1605 mm (enlarged working area)

- Compressed air supply: 7 bar
- Extraction capacity: min. 2200 m3/h
- Extraction speed: min. 28 m/s
- Suction connection: Ø 160 mm

Comec Designed work table
Phenolic resin table, designed as a grid table, grid size 50 x 50 mm, for mounting Cosmec suction system and templates, the
work table is divided into two working areas.
Threaded holes in the table for mechanical fixing of workpieces, 3 pcs. retractable stops

Vacuum pump
Vacuum pump 250/300 m³/h (50/60 Hz), power: 5.5 kW

Main spindle
5-axis spindle: 18 kW main spindle, liquid cooling, HSK 63 F tool holder
- 15 kW in S1 operation
- 18 kW in S6 operation
- Ceramic bearings
- Direction of rotation: left/right
- Spindle speed: 500 - 24000 rpm

Extraction hood
Controlled via NC program, height-adjustable extraction hood

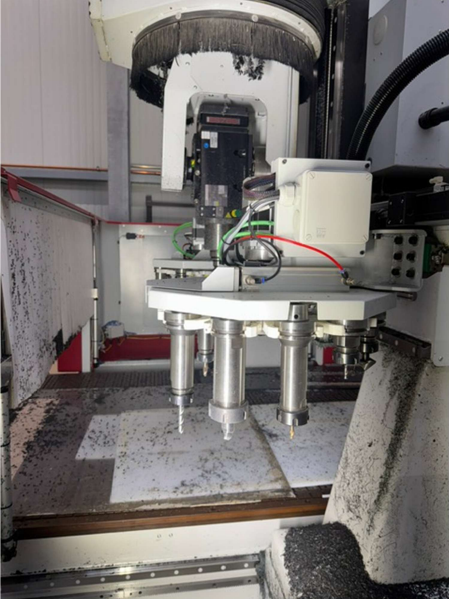

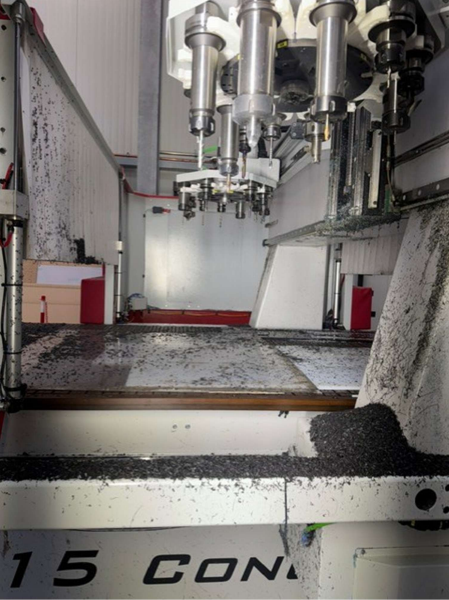

2 x tool changers
Integrated 12-station tool changer for HSK 63 F tool interface
- Max. tool diameter 150 mm if adjacent station is free
- Max. tool diameter 120 mm if adjacent station is occupied
- Max. tool weight: 6 kg
- Max. weight of tool and holder: 40 kg

Tool length measurement
Station for automatic length measurement of the tool

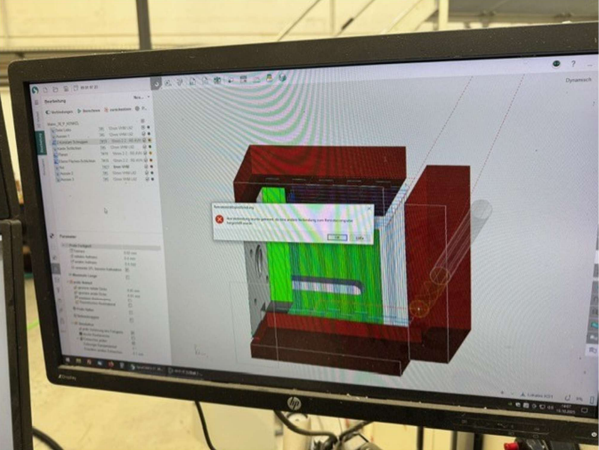

Note: Latest version of 5-axis simultaneous machining software through maintenance contract



Note:
The technical data and descriptions are copies of the order confirmation at the time. The information is for informational purposes only and is not binding.
