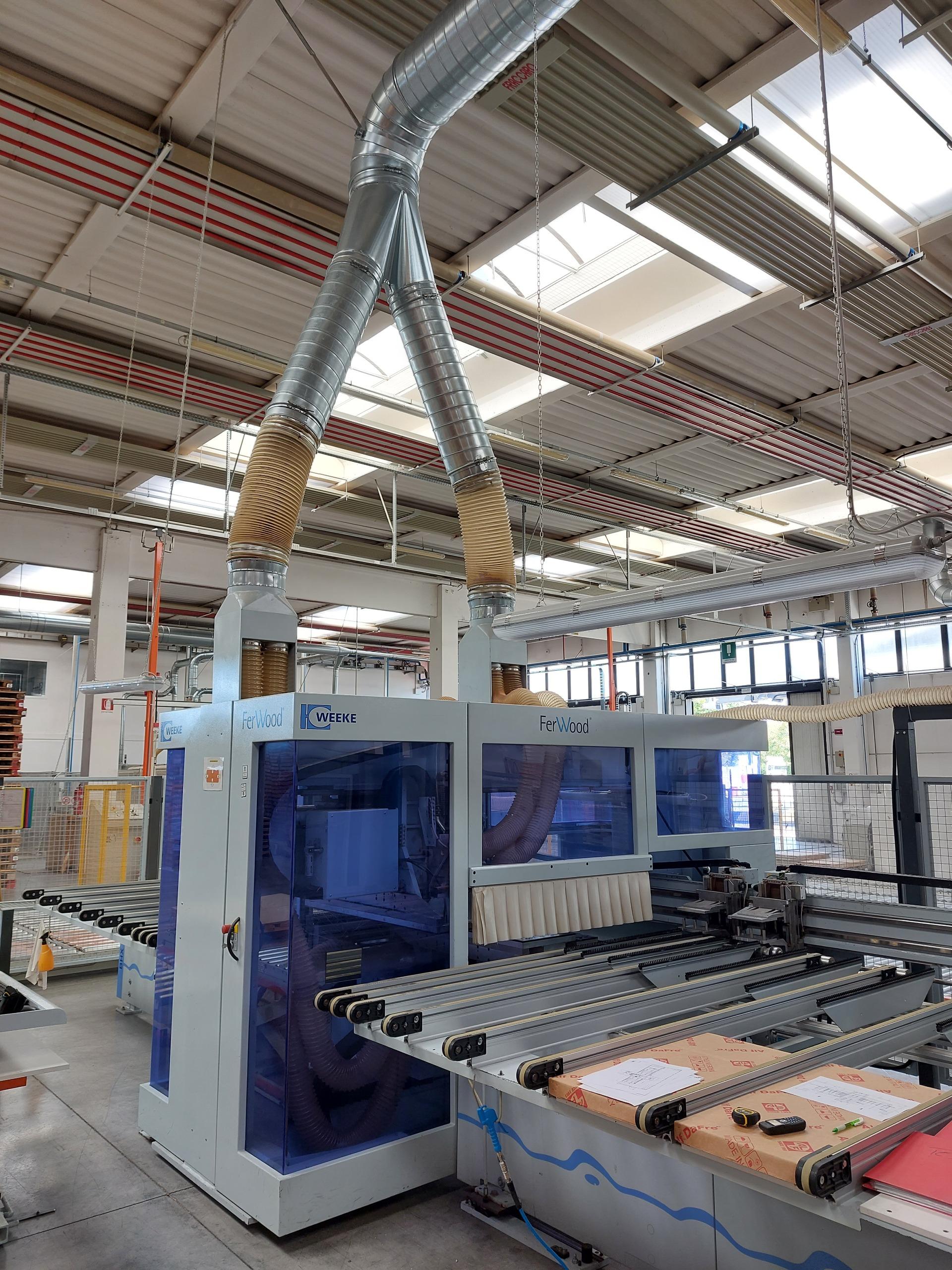

CNC working center

CNC working center
brand: WEEKE
type: OPTIMAT BHX 500
Year 2011

Technical data
X axis working area 2500 mm
Y axis working area 1300 mm
Main Electrospindle power 6 KW
Number of controlled axes 3 axes
Total number of drilling spindles 84
X axis work area 2500 mm
Y axis work area 1300 mm
Max panel thickness 80 mm

2 milling spindles:
each 6 KW, 18000 rpm

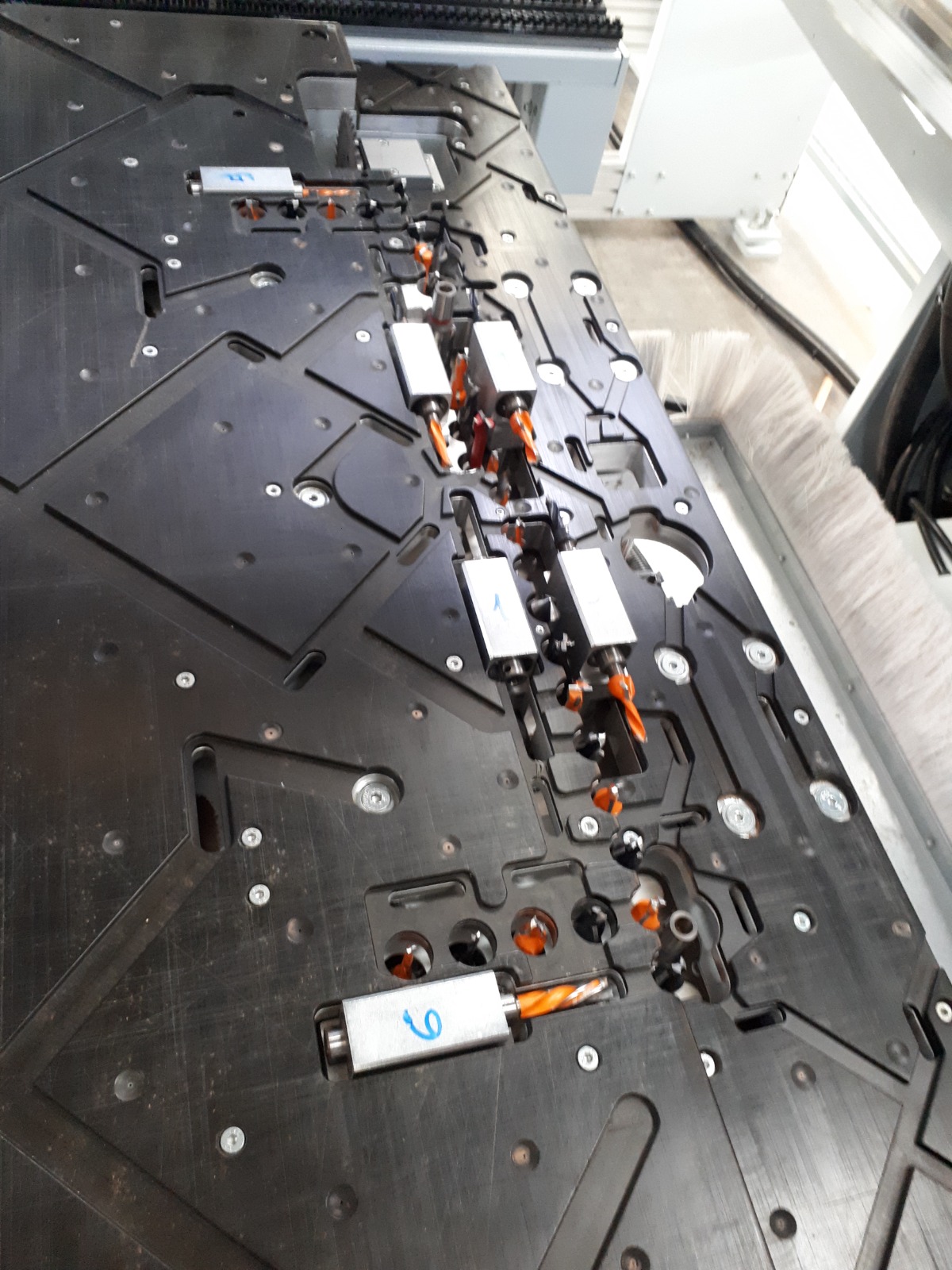

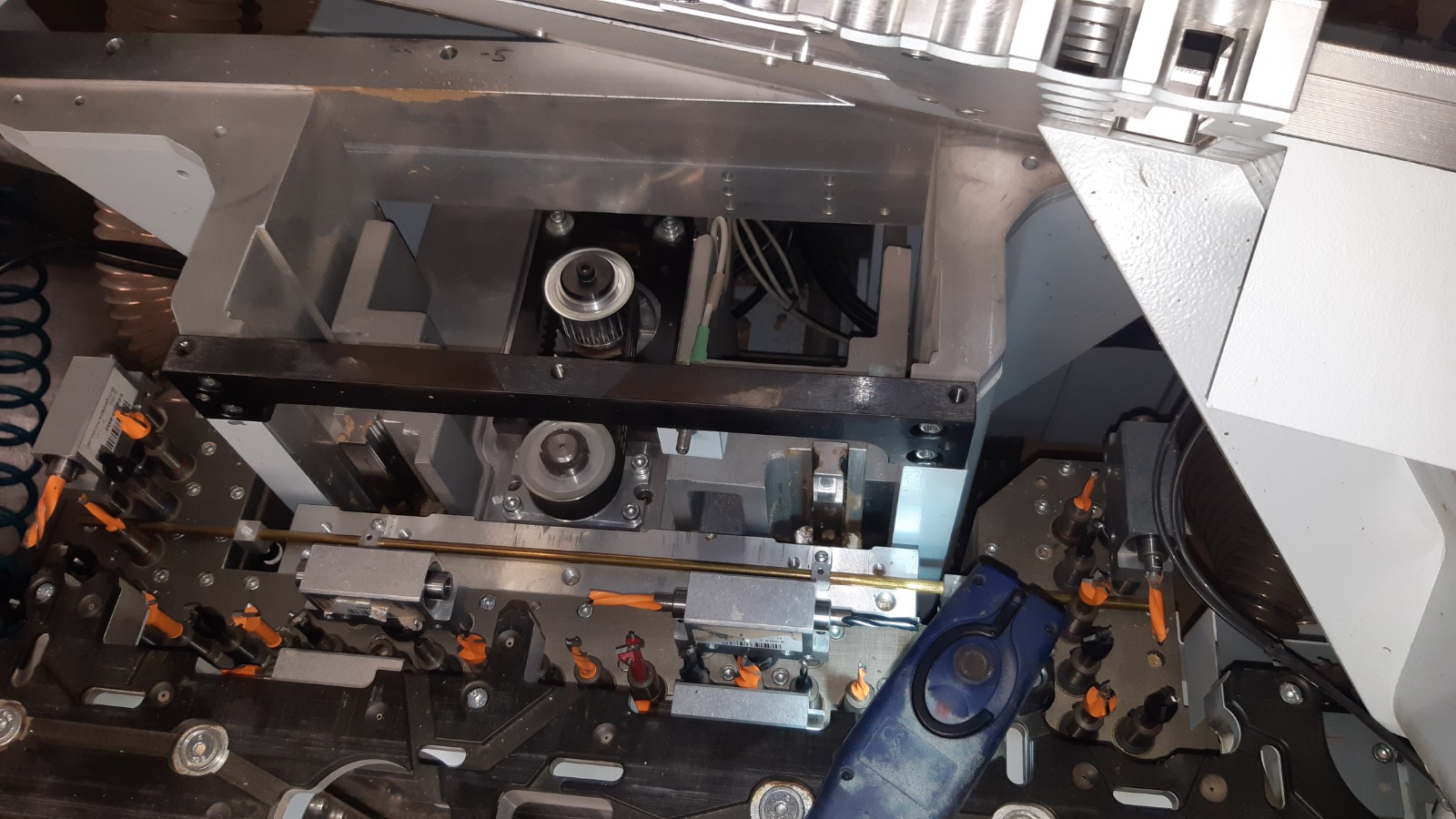

2 boring units:
Unit : top
Spindles for vertical boring : 32
Spindles for horizontal boring in direction X : 8
Spindles for horizontal boring in direction Y : 2
Total number of vertical + horizontal spindles : 42

Unit : bottom
Spindles for vertical boring : 32
Spindles for horizontal boring in direction X : 8
Spindles for horizontal boring in direction Y : 2
Total number of vertical + horizontal spindles : 42

2 Grooving unit:
with 0 / 90 degree position
7500 rpm

Note:
The technical data and descriptions are copies of the order confirmation at the time. The information is for informational purposes only and is not binding.
