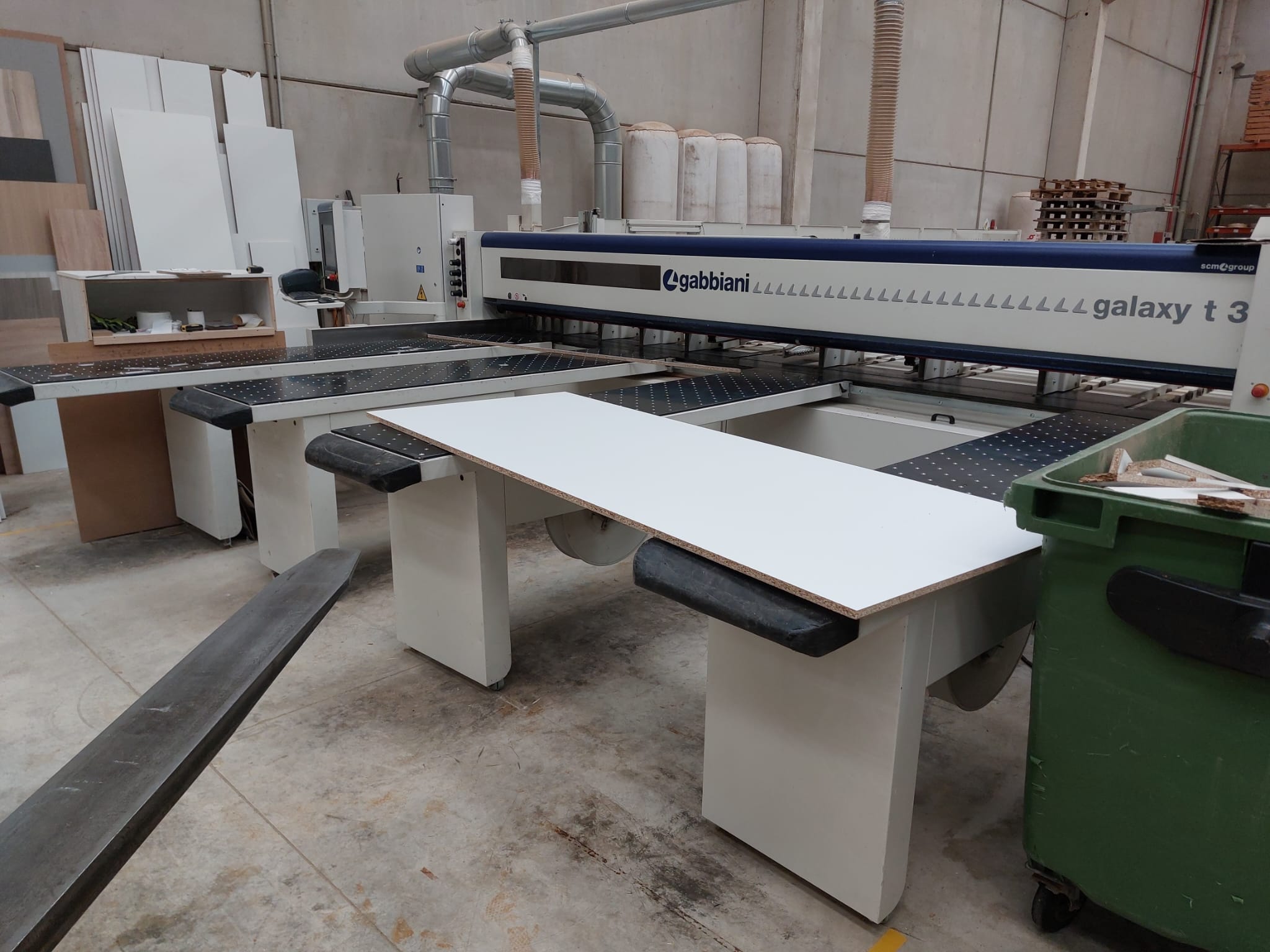

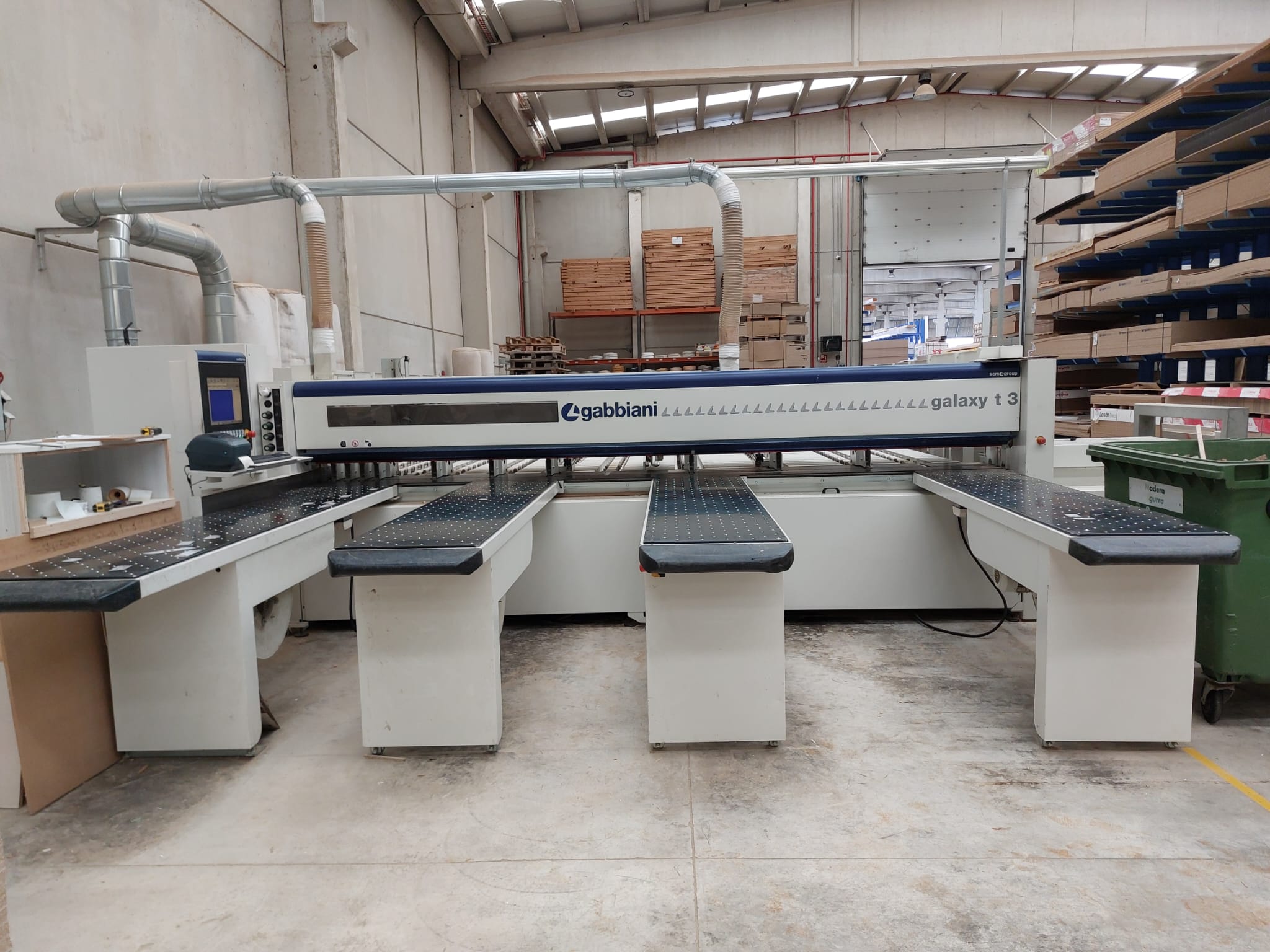

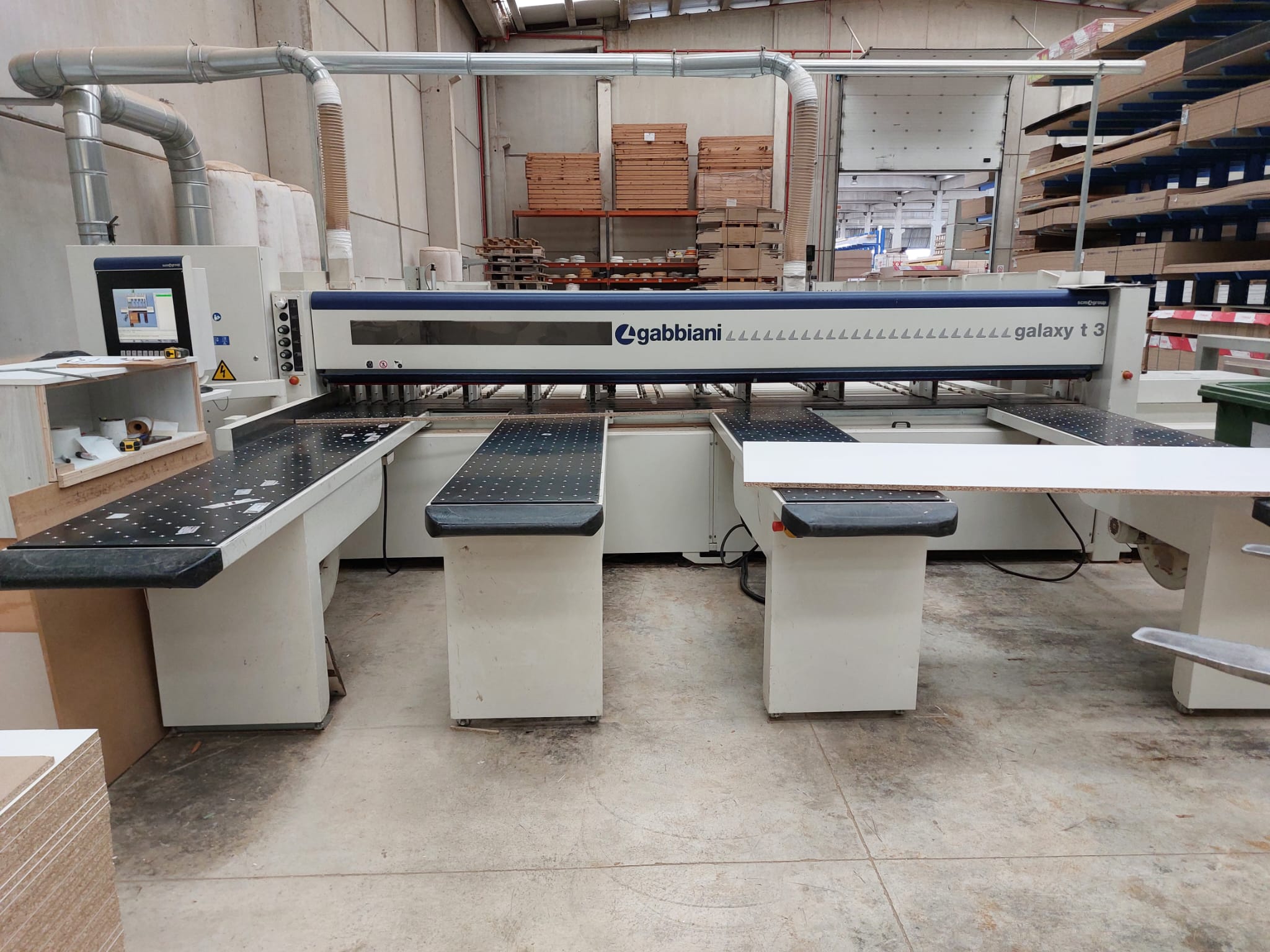

panel dividing saw

panel dividing saw
Brand: SCM

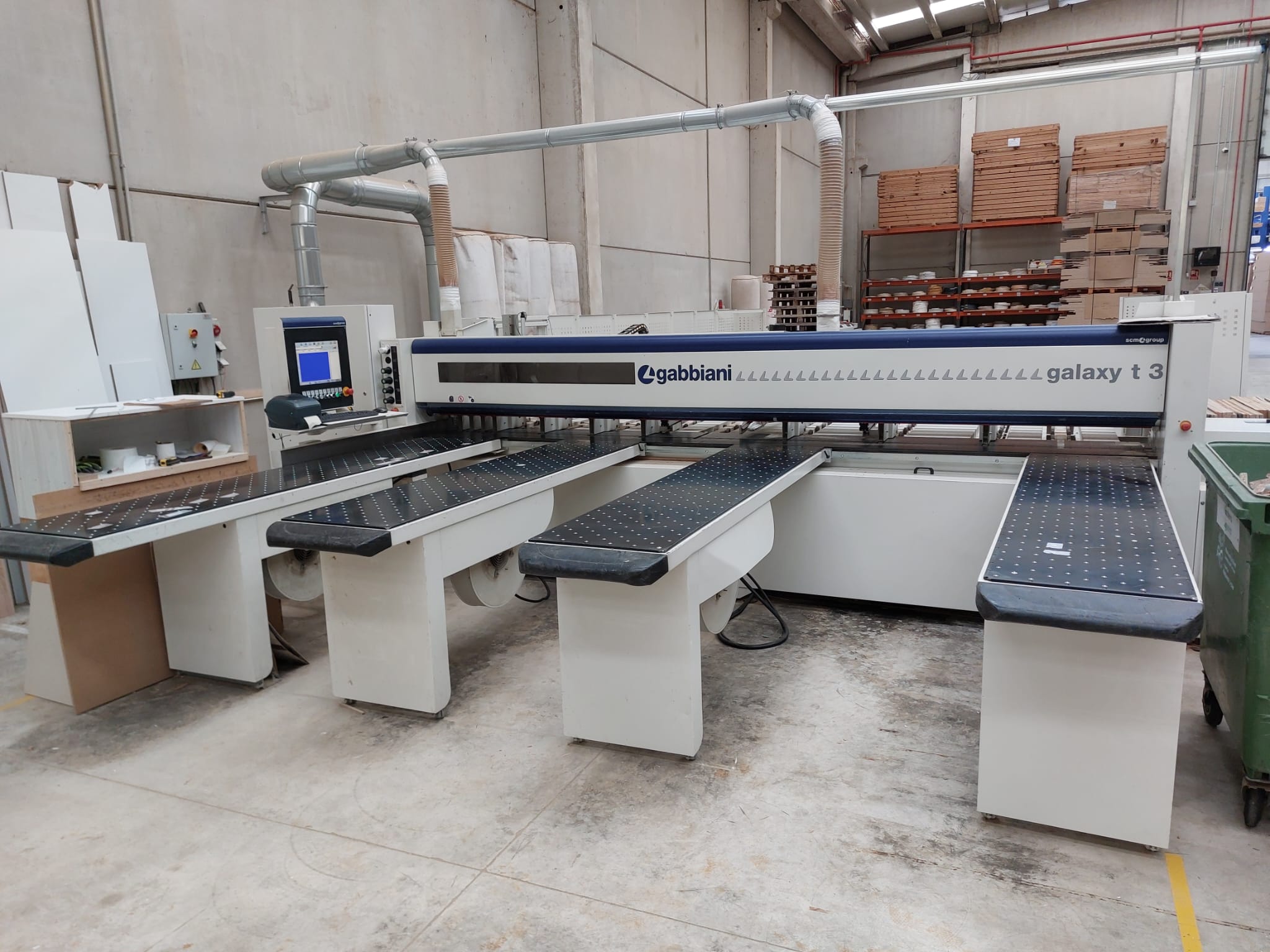

Type: Gabbiani Galaxy T3 110A
Year of manufacture: 2015


Technical data
- Maximum projection of the main saw blade: 115 mm
- Diameter of the saw blade (with pneumatic slide) min./max.: 300 - 400 mm
- Speed of the saw blade (with pneumatic slide) min./max.: 1164 / 3492 rpm
- Diameter of the groove cutter min./max.: 200 - 300 mm
- Speed of the groove cutter min./max.: 4279 / 4279 rpm
- Torque of the motor for knife feed: 4.7 Nm
- Power of the motor for feed/return of the slide min./ max.: 0.75 / 0.75 kW
- Motor power for rotation of the lift table rollers min./max.: 0.55 / 0.75 kW
- Motor power for lifting the lift table min./max.: 0.75 / 0.75 kW
- Motor power for lifting the lift table min./ max.: 2.2 / 2.2 kW

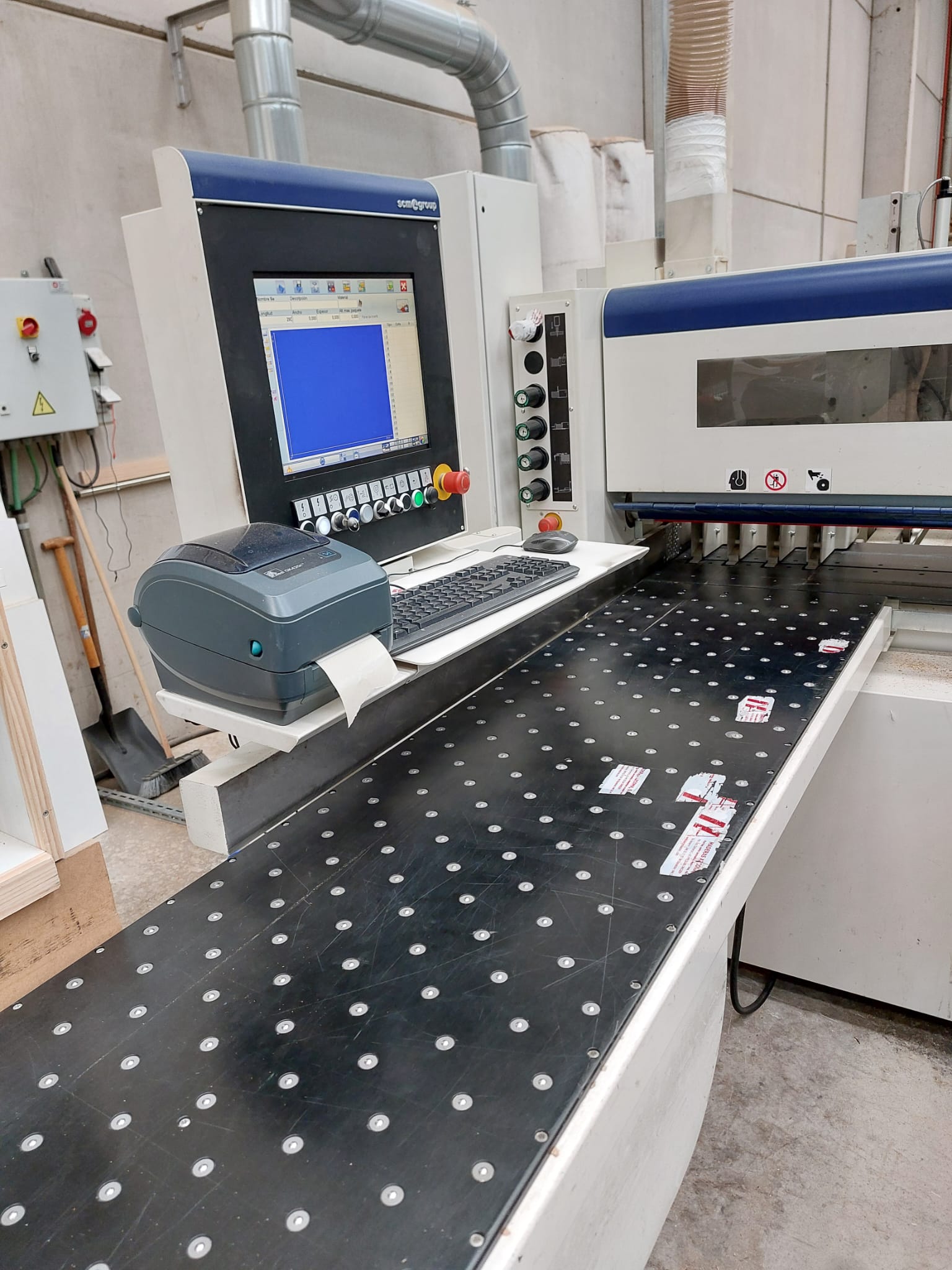

- Fixed air cushion work surface with guide: 3000 x 600 mm
- Movable air cushion work surface: 2500 x 600 mm with rollers
- Highly efficient air cushion work surface
- Automatic double motorised side stop

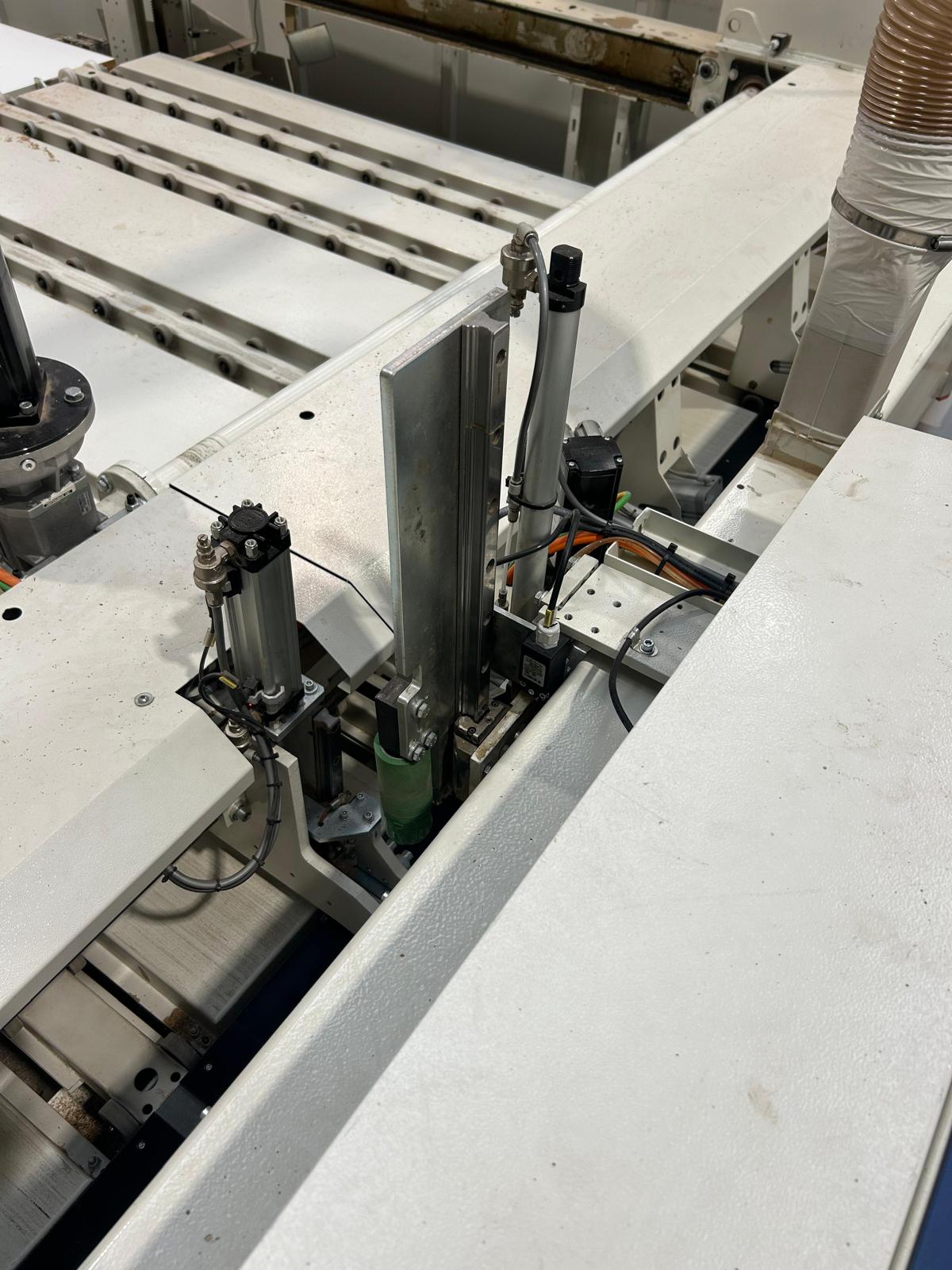

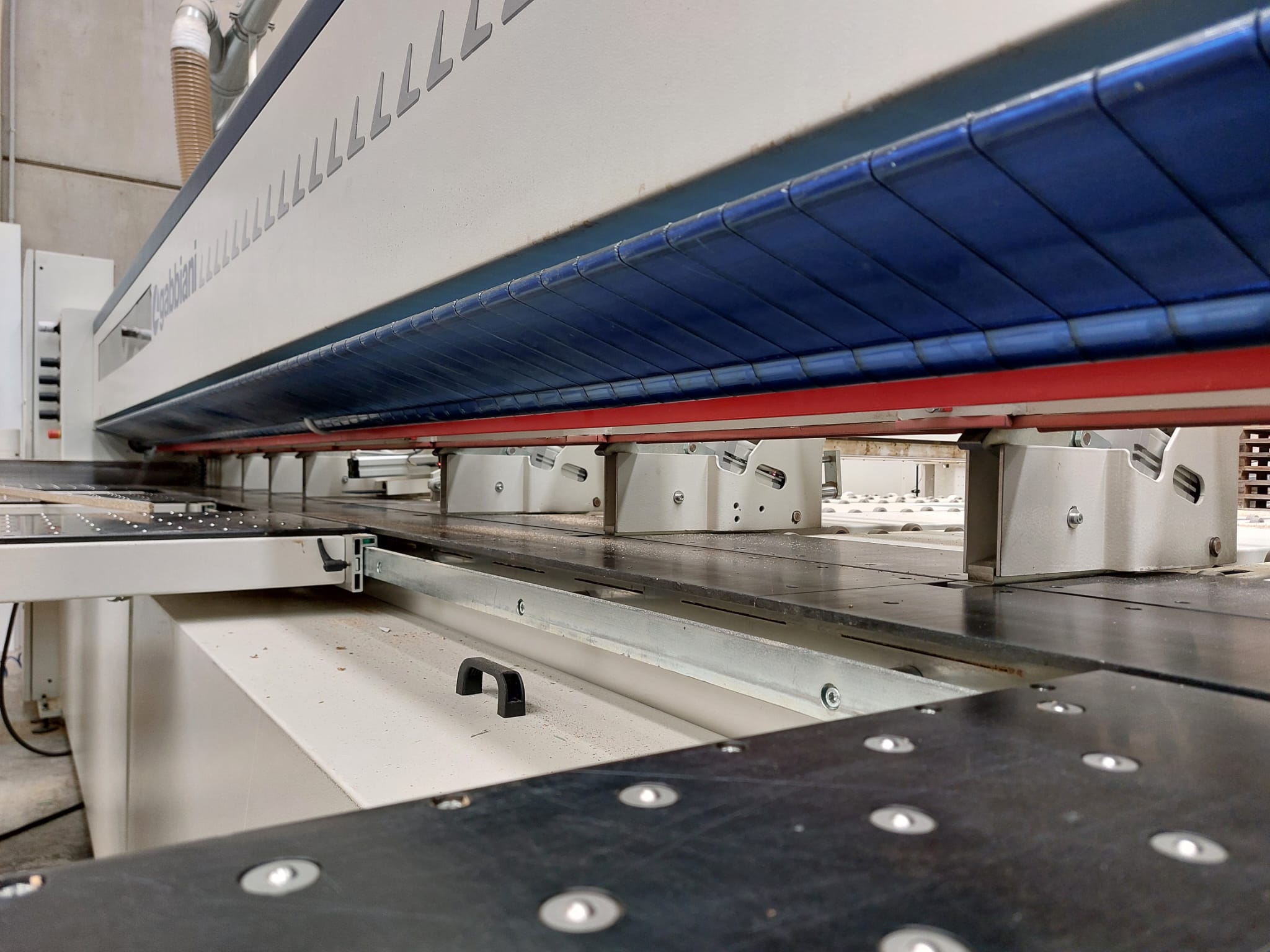

- Optimised knife/pressure device with self-learning function
- Main saw motor 15 HP at 50 Hz Av.0YD
- Double side feeder
- disc output accirding to wood thickness
- 2 additional clamps
- thin board loading

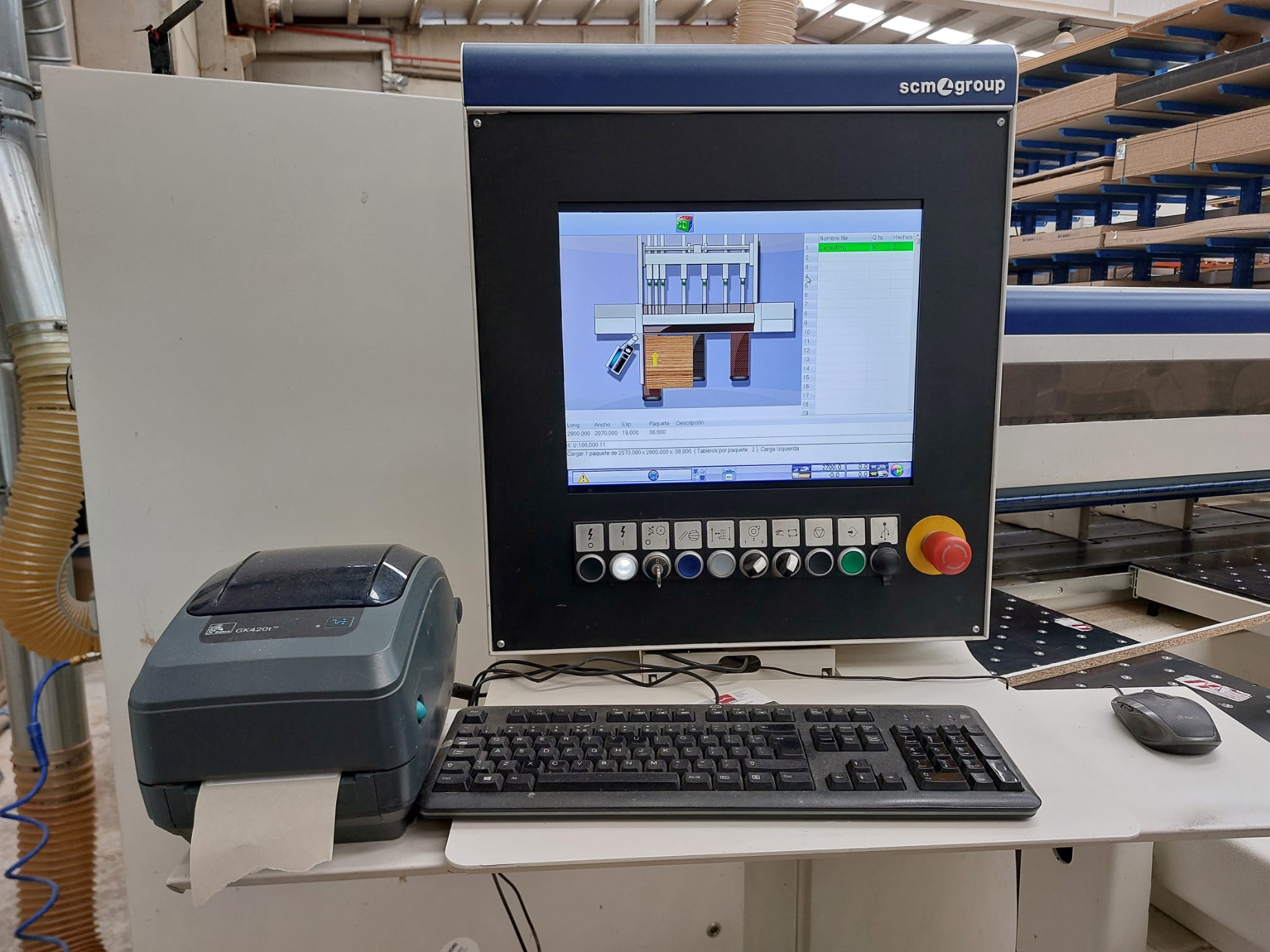

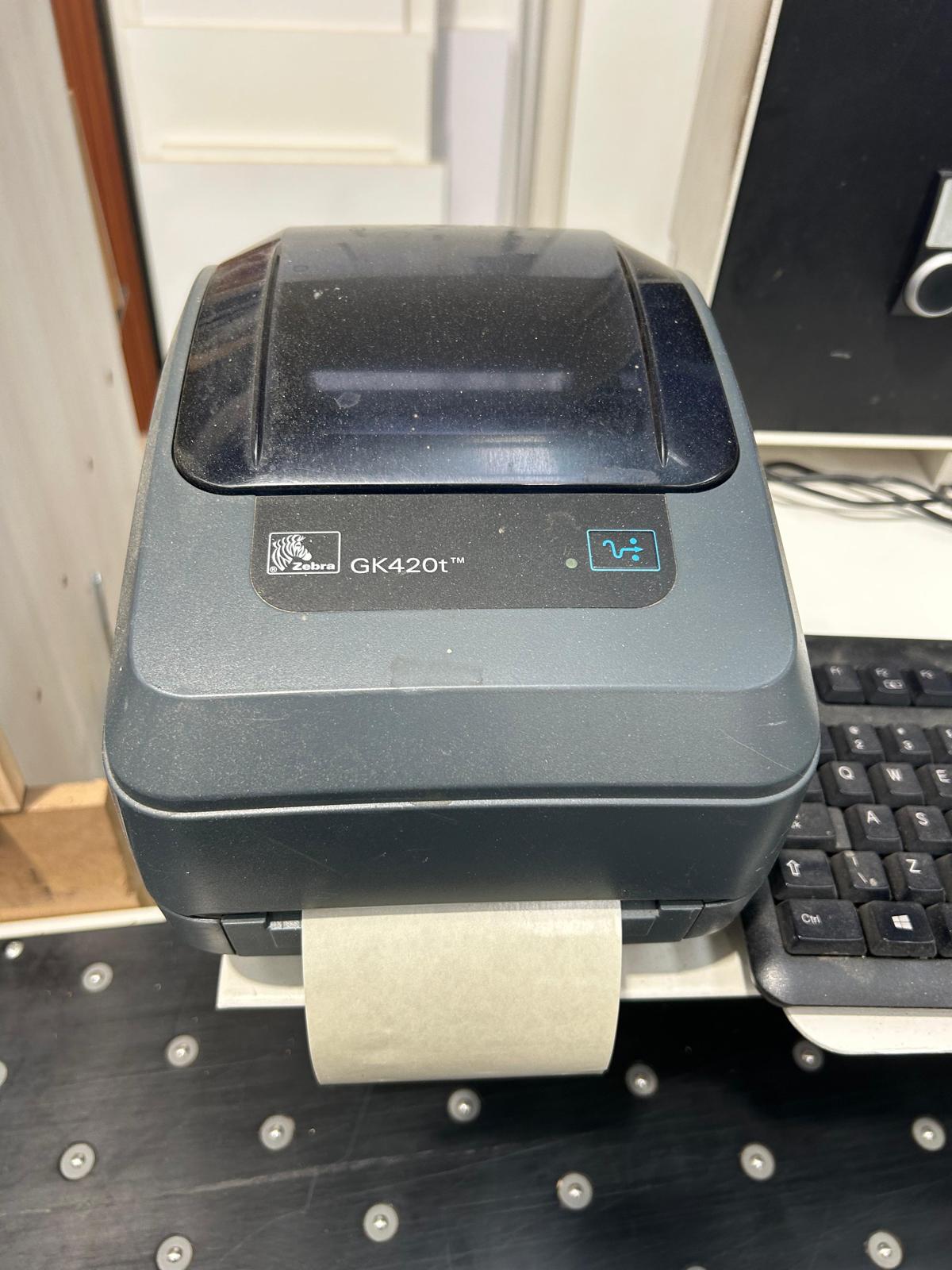

- Office labelling device

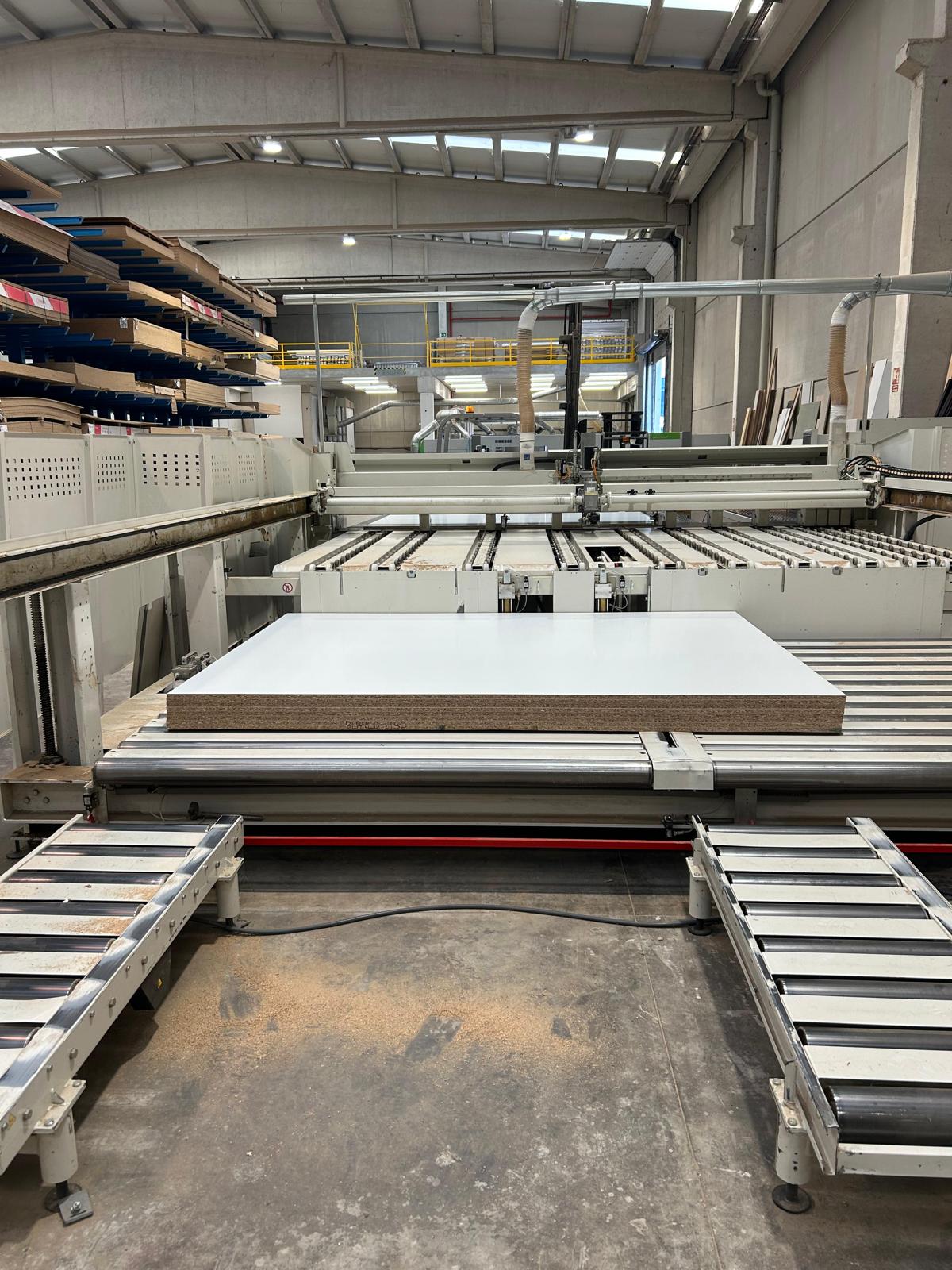

- Manual or automatic panel feed with roller conveyor

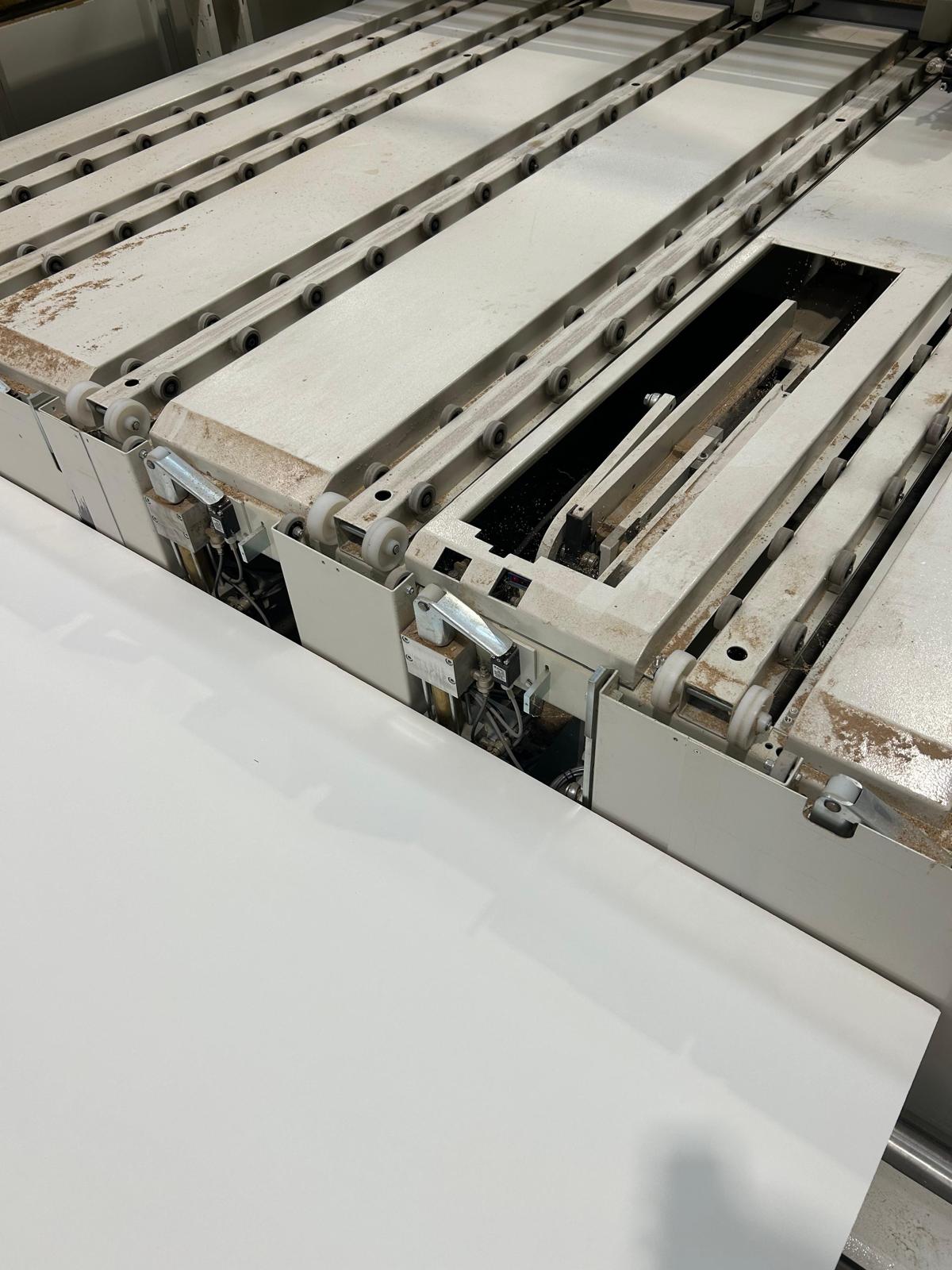

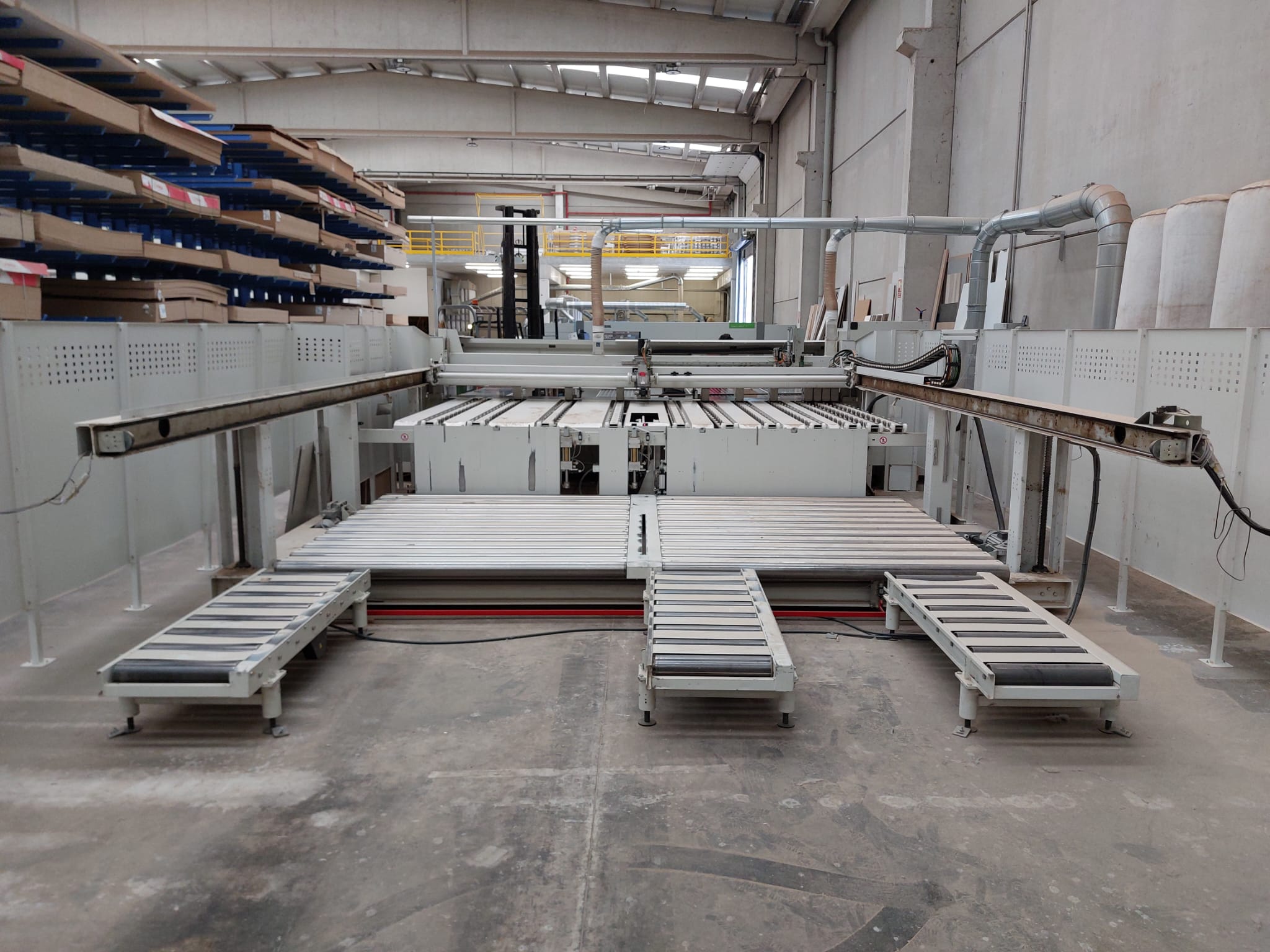

- Automatic rear panel feeding 4500 x 2440 mm with motorised roller conveyor

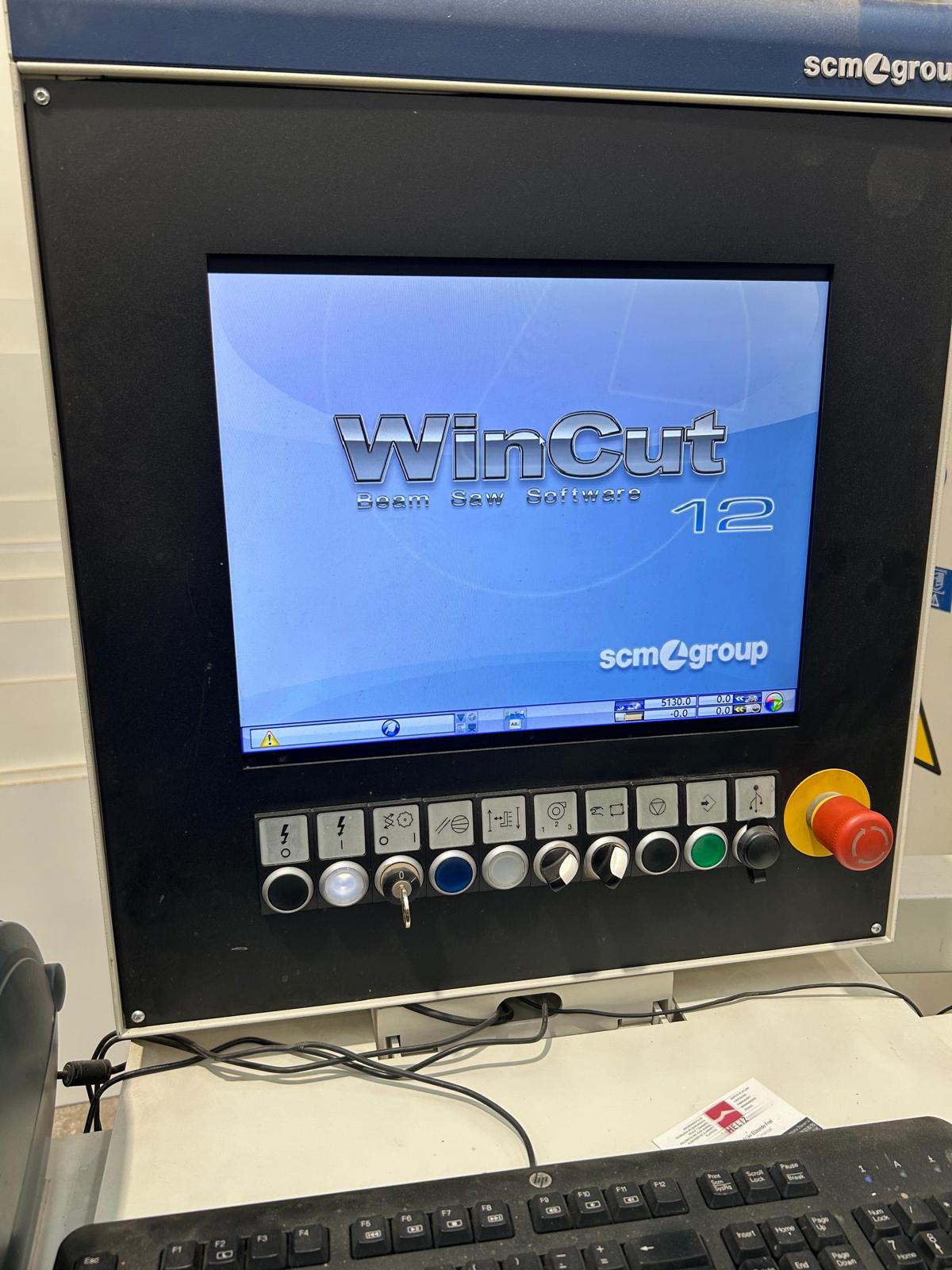

- Wincut Utility
- Cutty Office


Hinweis:
Die technischen Daten und Beschreibungen sind Kopien der damaligen Auftragsbestätigung. Die Angaben dienen nur zu Informationszwecken und sind unverbindlich.
